SCM180 Freescale i.MX8M ARM-based System-on-Module
3.5.8

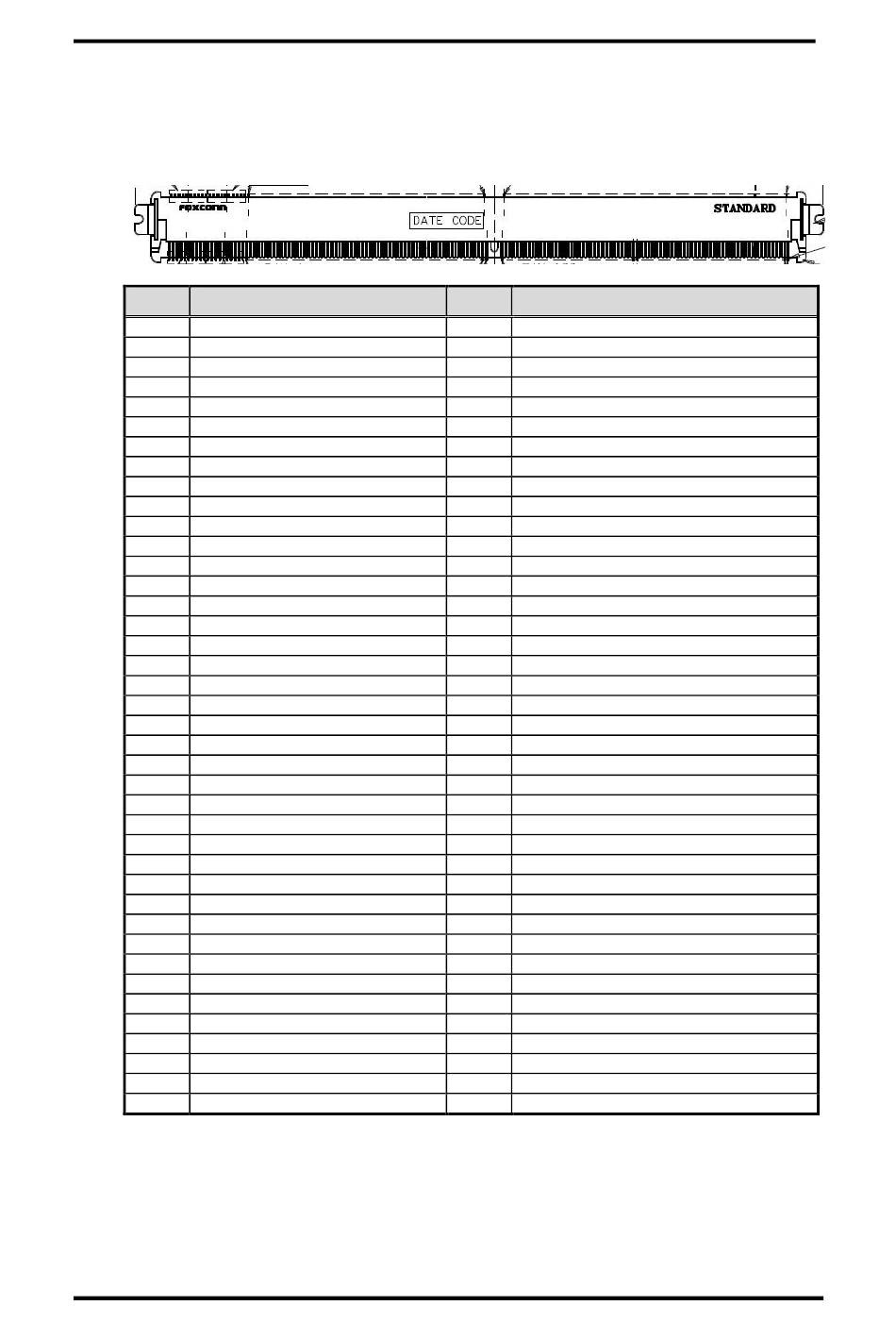

MXM Connector (CN8)

This SMT type 0.50mm [.020"] pitch, 314-pin MXM connector is available in 2 different
heights (5.5mm and 7.8mm) for maximum flexibility.
P-Pin Primary (Top) Side
P1 SMB_ALERT_1V8#
P2 GND
P3 CS1_CK+
P4 CS1_CK-
P5 GND
P6 N.C
P7 CSI1_RX0+
P8 CSI1_RX0-
P9 GND
P10 CSI1_RX1+
P11 CSI1_RX1-
P12 GND
P13 CSI1_RX2+
P14 CSI1_RX2-
P15 GND
P16 CSI1_RX3+
P17 CSI1_RX3-
P18 GND
P19 GBE0_MDI3-
P20 GBE0_MDI3+
P21 GBE0_LINK100#
P22 GBE0_LINK1000#
P23 GBE0_MDI2-
P24 GBE0_MDI2+
P25 GBE0_LINK_ACT#
P26 GBE0_MDI1-
P27 GBE0_MDI1+
P28 N.C
P29 GBE0_MDI0-
P30 GBE0_MDI0+
P31 SPI0_CS1#
P32 GND
P33 SDIO_WP
P34 SDIO_CMD
P35 SDIO_CD#
P36 SDIO_CK
P37 SDIO_PWR_EN
P38 GND
P39 SDIO_D0
P40 SDIO_D1
18
S-Pin Secondary (Bottom) Side
S1 CSI1_TX+ / I2C_CAM1_CK
S2 CSI1_TX- / I2C_CAM1_DAT
S3 GND
S4 N.C
S5 CSI0_TX- / I2C_CAM0_CK
S6 CAM_MCK
S7 CSI0_TX+ / I2C_CAM0_DAT
S8 CSI0_CK+
S9 CSI0_CK-
S10 GND
S11 CSI0_RX0+
S12 CSI0_RX0-
S13 GND
S14 CSI0_RX1+
S15 CSI0_RX1-
S16 GND
S17 N.C
S18 N.C
S19 N.C
S20 N.C
S21 N.C
S22 N.C
S23 N.C
S24 N.C
S25 GND
S26 N.C
S27 N.C
S28 N.C
S29 N.C
S30 N.C
S31 N.C
S32 N.C
S33 N.C
S34 GND
S35 N.C
S36 N.C
S37 N.C
S38 AUDIO_MCK
S39 I2S0_LRCK
S40 I2S0_SDOUT
