SCM180 & SCB180 Freescale i.MX8M ARM-based System-on-Module
Chapter 2

Board and Pin Assignments

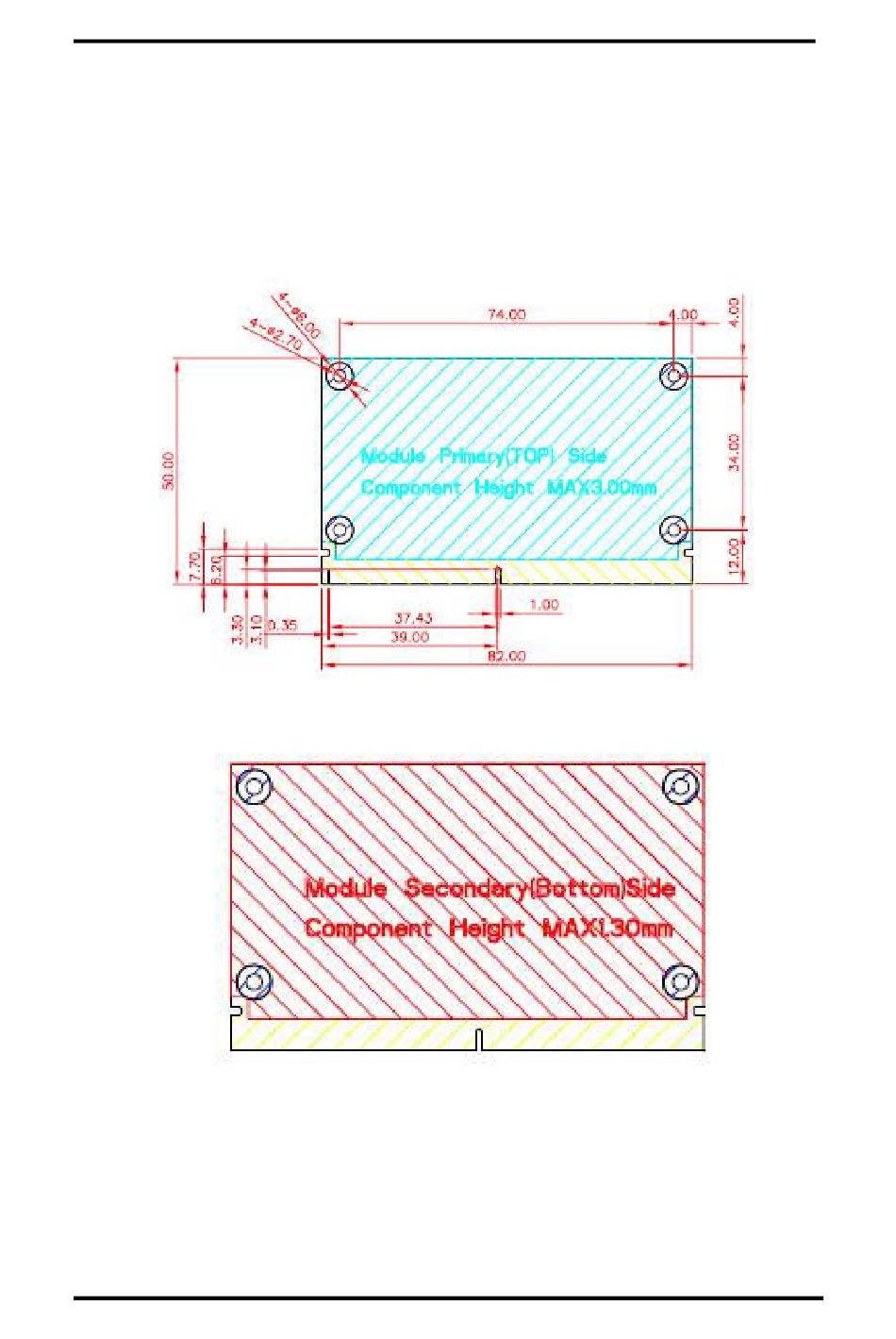

2.1 Board Dimensions and Fixing Holes

Top View
Bottom View
Board and Pin Assignments
