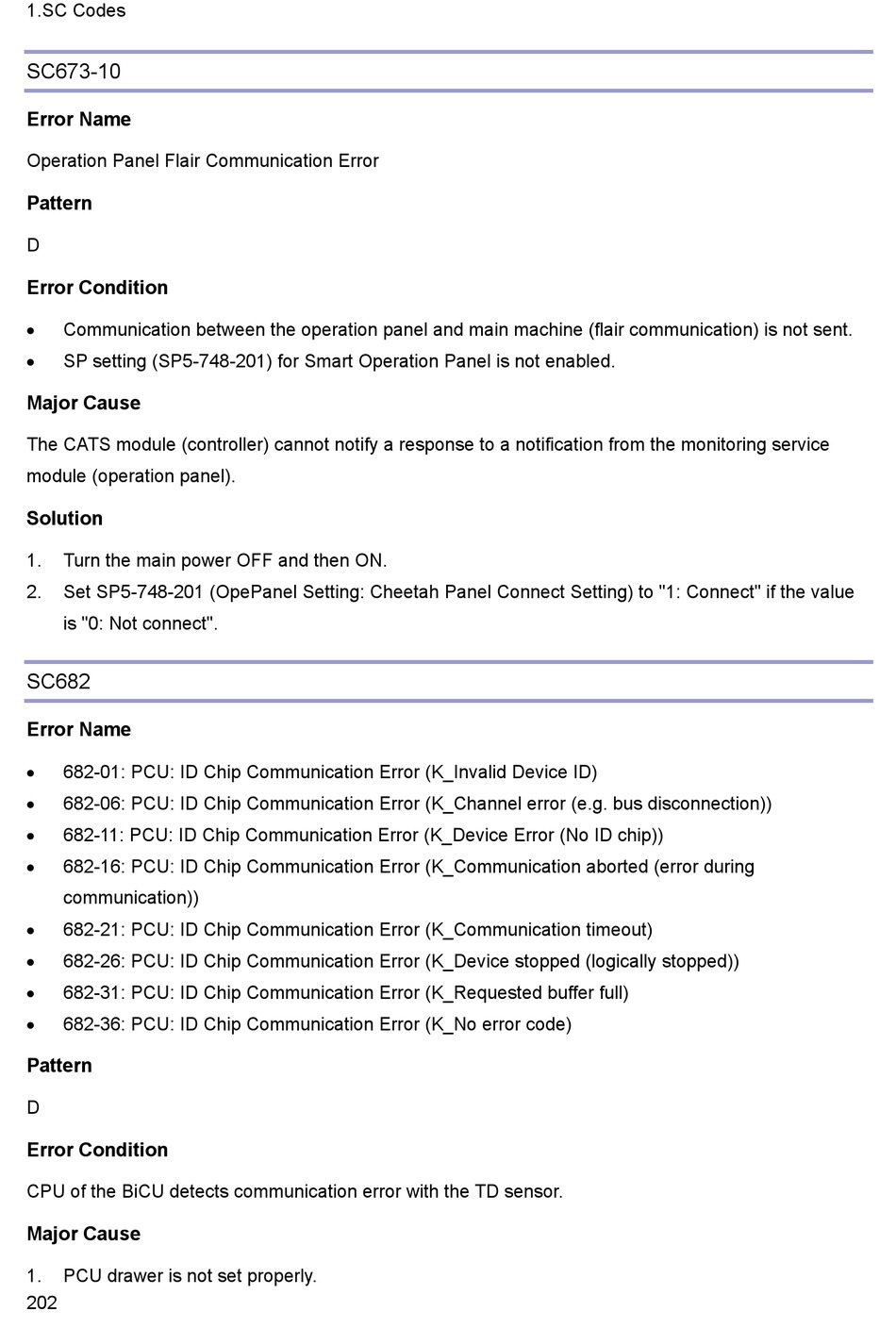

1.SC Codes

SC673-10

Error Name

Operation Panel Flair Communication Error

Pattern
D
Error Condition
 Communication between the operation panel and main machine (flair communication) is not sent.
SP setting (SP5-748-201) for Smart Operation Panel is not enabled.

Major Cause
The CATS module (controller) cannot notify a response to a notification from the monitoring service
module (operation panel).
Solution
1. Turn the main power OFF and then ON.
2. Set SP5-748-201 (OpePanel Setting: Cheetah Panel Connect Setting) to "1: Connect" if the value
is "0: Not connect".

SC682

Error Name
682-01: PCU: ID Chip Communication Error (K_Invalid Device ID)

 682-06: PCU: ID Chip Communication Error (K_Channel error (e.g. bus disconnection))
682-11: PCU: ID Chip Communication Error (K_Device Error (No ID chip))

682-16: PCU: ID Chip Communication Error (K_Communication aborted (error during

communication))
682-21: PCU: ID Chip Communication Error (K_Communication timeout)

 682-26: PCU: ID Chip Communication Error (K_Device stopped (logically stopped))
682-31: PCU: ID Chip Communication Error (K_Requested buffer full)

682-36: PCU: ID Chip Communication Error (K_No error code)

Pattern
D
Error Condition
CPU of the BiCU detects communication error with the TD sensor.
Major Cause
1. PCU drawer is not set properly.
202
