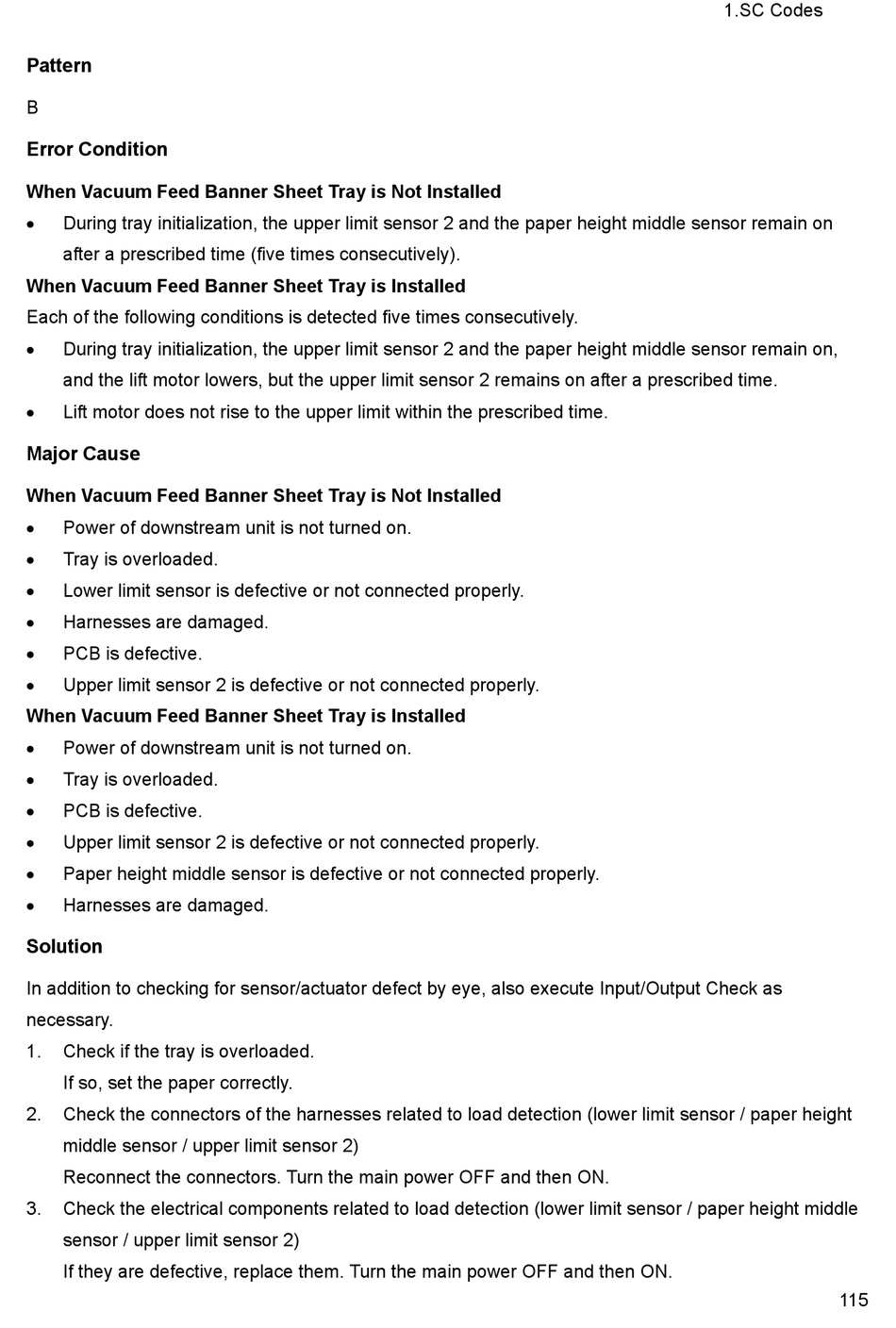

Pattern
B
Error Condition
When Vacuum Feed Banner Sheet Tray is Not Installed
During tray initialization, the upper limit sensor 2 and the paper height middle sensor remain on

after a prescribed time (five times consecutively).
When Vacuum Feed Banner Sheet Tray is Installed
Each of the following conditions is detected five times consecutively.
During tray initialization, the upper limit sensor 2 and the paper height middle sensor remain on,

and the lift motor lowers, but the upper limit sensor 2 remains on after a prescribed time.
 Lift motor does not rise to the upper limit within the prescribed time.
Major Cause
When Vacuum Feed Banner Sheet Tray is Not Installed
Power of downstream unit is not turned on.

 Tray is overloaded.
Lower limit sensor is defective or not connected properly.

Harnesses are damaged.

PCB is defective.

Upper limit sensor 2 is defective or not connected properly.

When Vacuum Feed Banner Sheet Tray is Installed
Power of downstream unit is not turned on.

Tray is overloaded.

PCB is defective.

Upper limit sensor 2 is defective or not connected properly.

 Paper height middle sensor is defective or not connected properly.
Harnesses are damaged.

Solution
In addition to checking for sensor/actuator defect by eye, also execute Input/Output Check as
necessary.
1. Check if the tray is overloaded.
If so, set the paper correctly.
2. Check the connectors of the harnesses related to load detection (lower limit sensor / paper height
middle sensor / upper limit sensor 2)
Reconnect the connectors. Turn the main power OFF and then ON.
3. Check the electrical components related to load detection (lower limit sensor / paper height middle
sensor / upper limit sensor 2)
If they are defective, replace them. Turn the main power OFF and then ON.
