Solution
Reconnect the connector.

Replace the main grip motor (F).

 Replace the MG open sensor (F).
Replace the slave control board.

Replace the motor harness.

Replace the sensor harness.


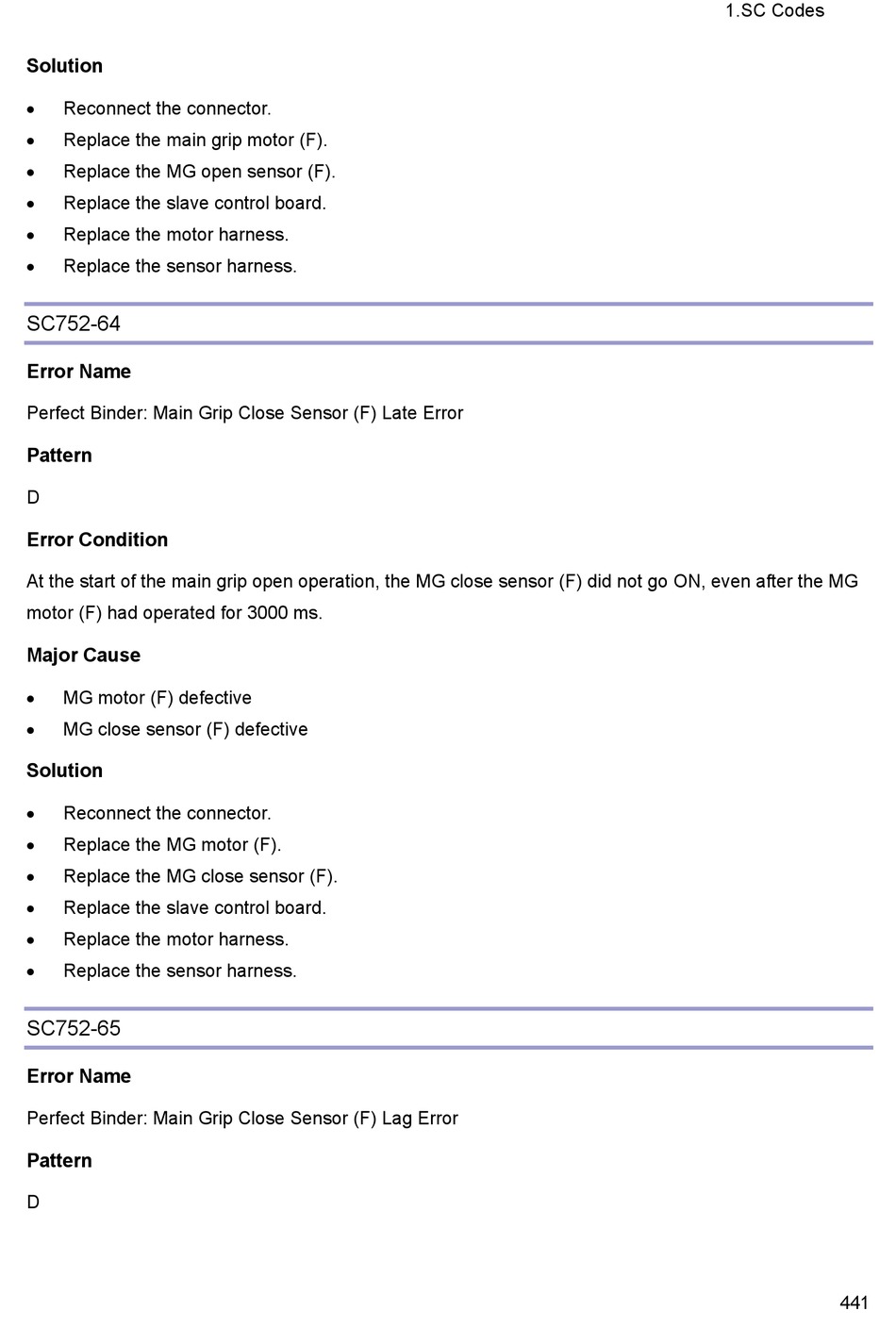

SC752-64

Error Name

Perfect Binder: Main Grip Close Sensor (F) Late Error

Pattern
D
Error Condition
At the start of the main grip open operation, the MG close sensor (F) did not go ON, even after the MG
motor (F) had operated for 3000 ms.
Major Cause
MG motor (F) defective

 MG close sensor (F) defective
Solution
 Reconnect the connector.
Replace the MG motor (F).

 Replace the MG close sensor (F).
Replace the slave control board.

Replace the motor harness.

 Replace the sensor harness.

SC752-65

Error Name

Perfect Binder: Main Grip Close Sensor (F) Lag Error

Pattern
D
1.SC Codes
441
