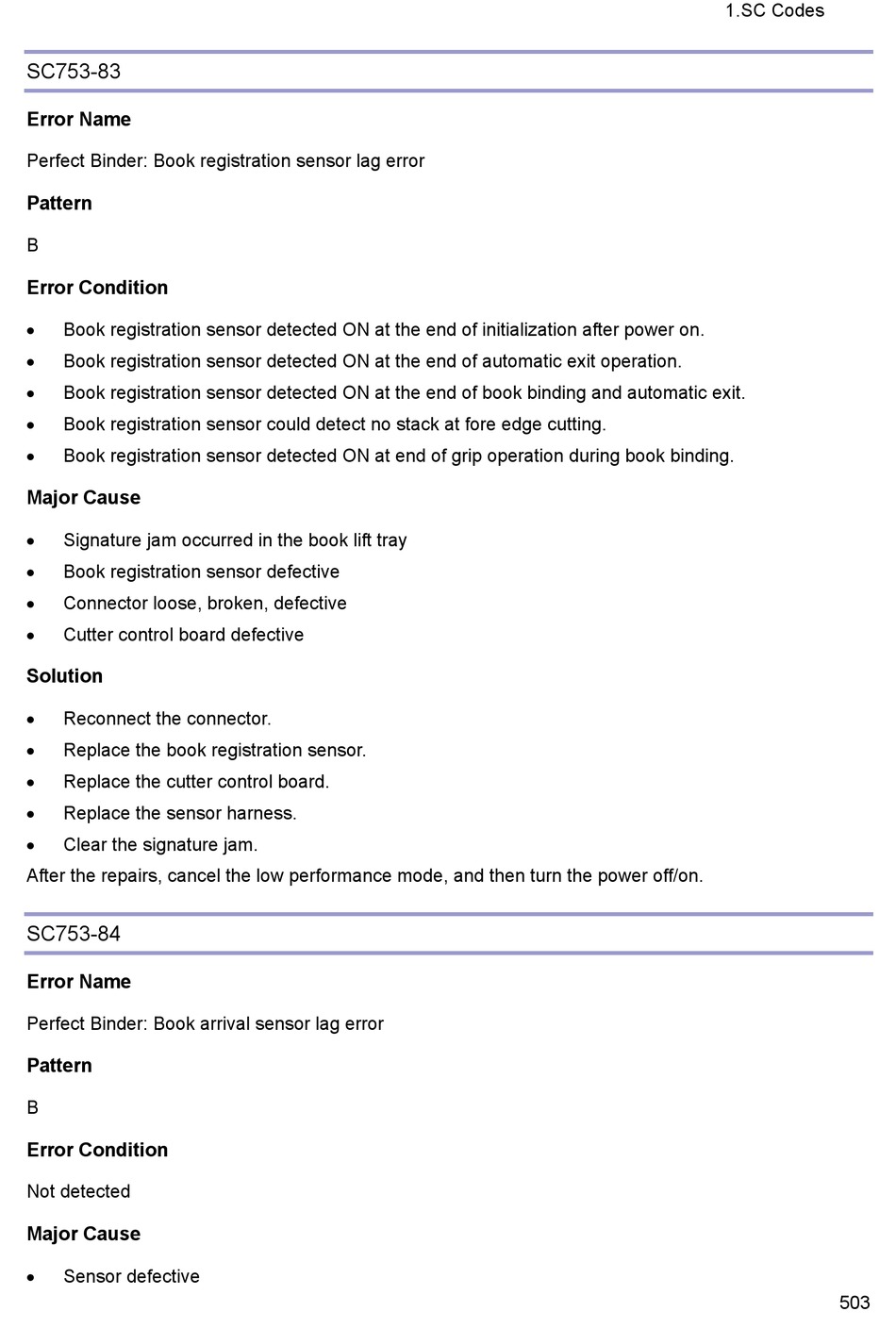

SC753-83

Error Name
Perfect Binder: Book registration sensor lag error
Pattern
B
Error Condition
 Book registration sensor detected ON at the end of initialization after power on.
Book registration sensor detected ON at the end of automatic exit operation.

Book registration sensor detected ON at the end of book binding and automatic exit.

 Book registration sensor could detect no stack at fore edge cutting.
Book registration sensor detected ON at end of grip operation during book binding.

Major Cause
Signature jam occurred in the book lift tray

 Book registration sensor defective
Connector loose, broken, defective

Cutter control board defective

Solution
 Reconnect the connector.
Replace the book registration sensor.

Replace the cutter control board.

 Replace the sensor harness.
Clear the signature jam.

After the repairs, cancel the low performance mode, and then turn the power off/on.

SC753-84

Error Name
Perfect Binder: Book arrival sensor lag error
Pattern
B
Error Condition
Not detected
Major Cause
 Sensor defective
