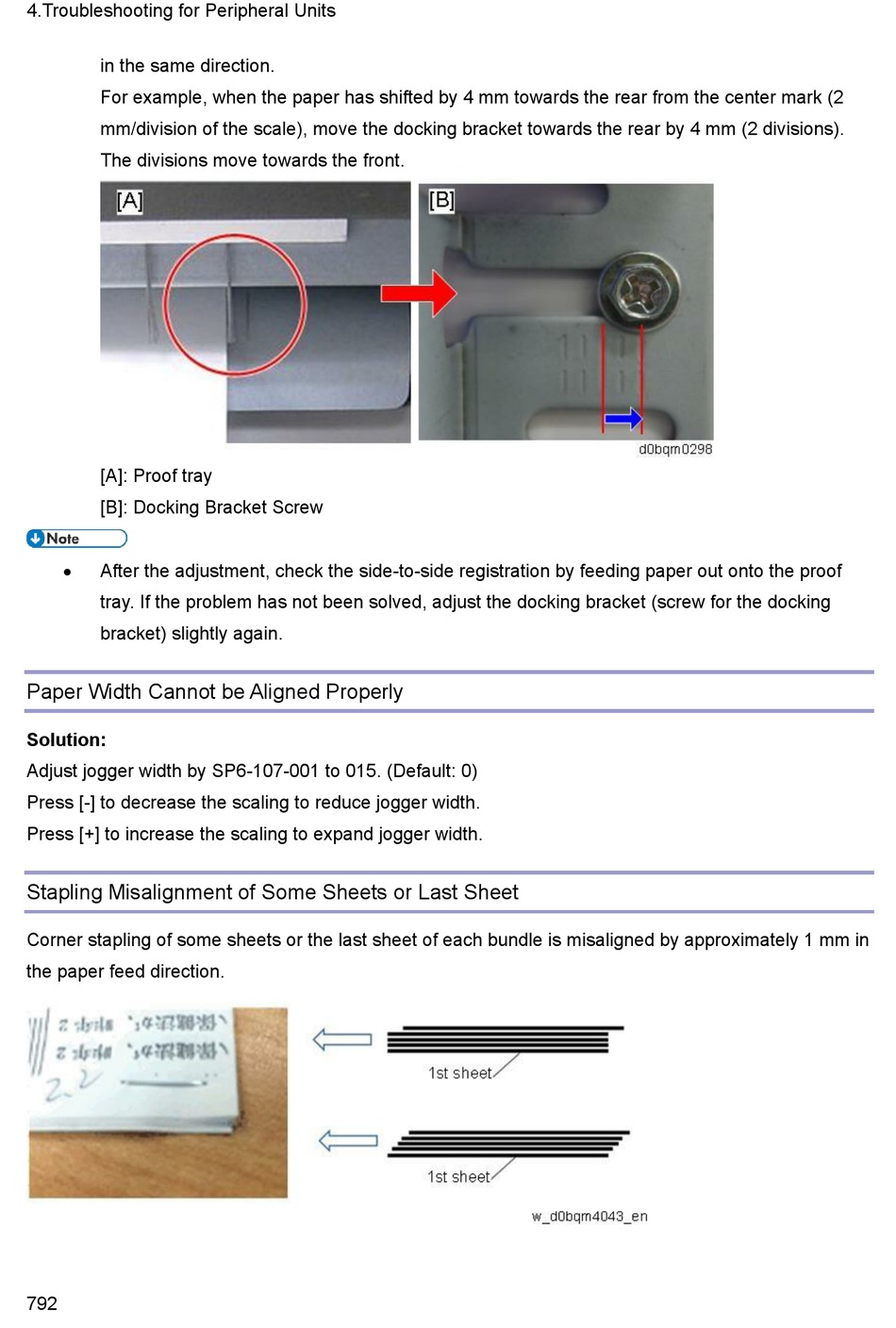

4.Troubleshooting for Peripheral Units
in the same direction.
For example, when the paper has shifted by 4 mm towards the rear from the center mark (2
mm/division of the scale), move the docking bracket towards the rear by 4 mm (2 divisions).
The divisions move towards the front.
[A]: Proof tray
[B]: Docking Bracket Screw
 After the adjustment, check the side-to-side registration by feeding paper out onto the proof
tray. If the problem has not been solved, adjust the docking bracket (screw for the docking
bracket) slightly again.

Paper Width Cannot be Aligned Properly

Solution:
Adjust jogger width by SP6-107-001 to 015. (Default: 0)
Press [-] to decrease the scaling to reduce jogger width.
Press [+] to increase the scaling to expand jogger width.

Stapling Misalignment of Some Sheets or Last Sheet

Corner stapling of some sheets or the last sheet of each bundle is misaligned by approximately 1 mm in
the paper feed direction.
792
