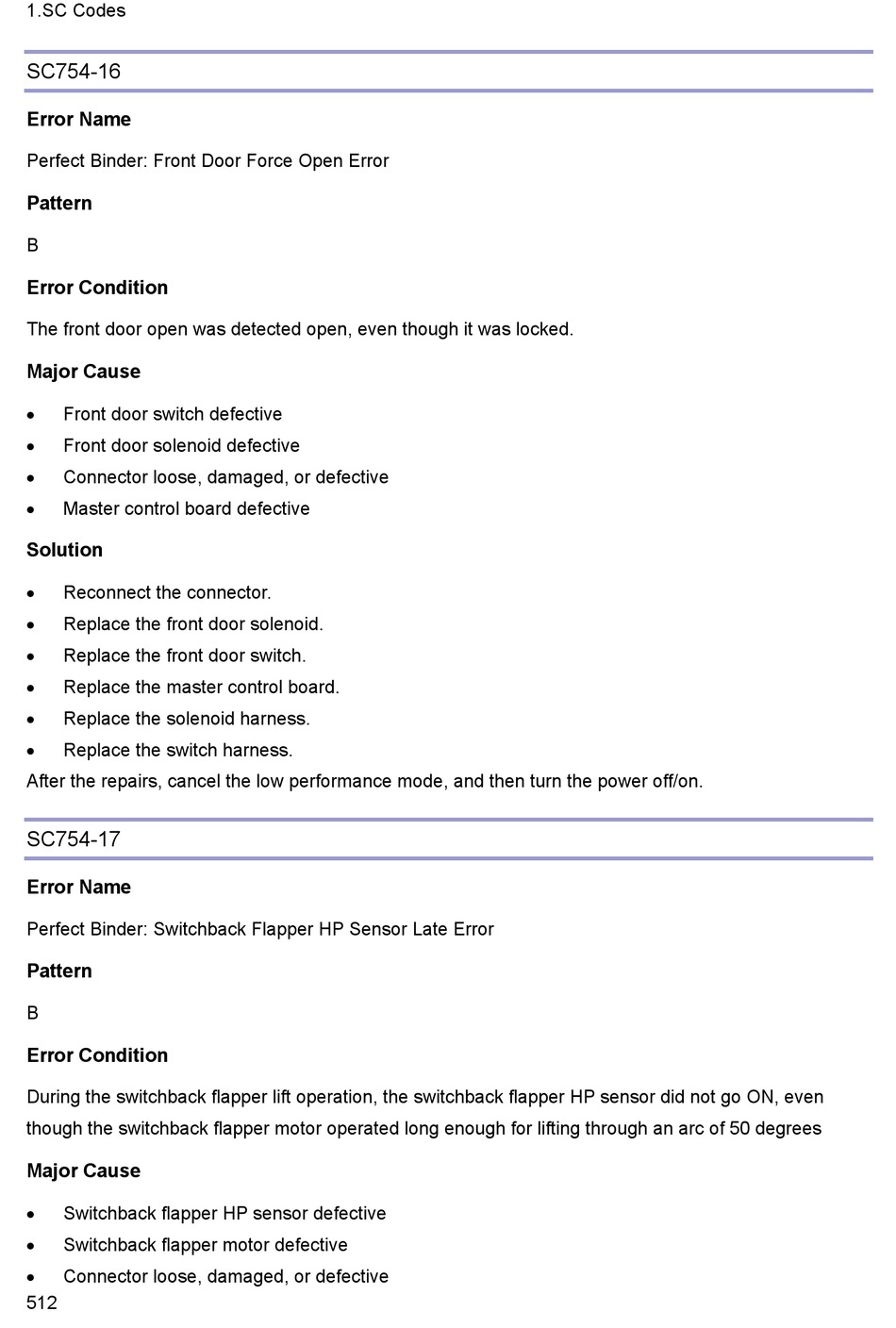

1.SC Codes

SC754-16

Error Name
Perfect Binder: Front Door Force Open Error
Pattern
B
Error Condition
The front door open was detected open, even though it was locked.
Major Cause
 Front door switch defective
Front door solenoid defective

Connector loose, damaged, or defective

Master control board defective

Solution
Reconnect the connector.

Replace the front door solenoid.

 Replace the front door switch.
Replace the master control board.

 Replace the solenoid harness.
Replace the switch harness.

After the repairs, cancel the low performance mode, and then turn the power off/on.

SC754-17

Error Name
Perfect Binder: Switchback Flapper HP Sensor Late Error
Pattern
B
Error Condition
During the switchback flapper lift operation, the switchback flapper HP sensor did not go ON, even
though the switchback flapper motor operated long enough for lifting through an arc of 50 degrees
Major Cause
 Switchback flapper HP sensor defective
Switchback flapper motor defective

 Connector loose, damaged, or defective
512
