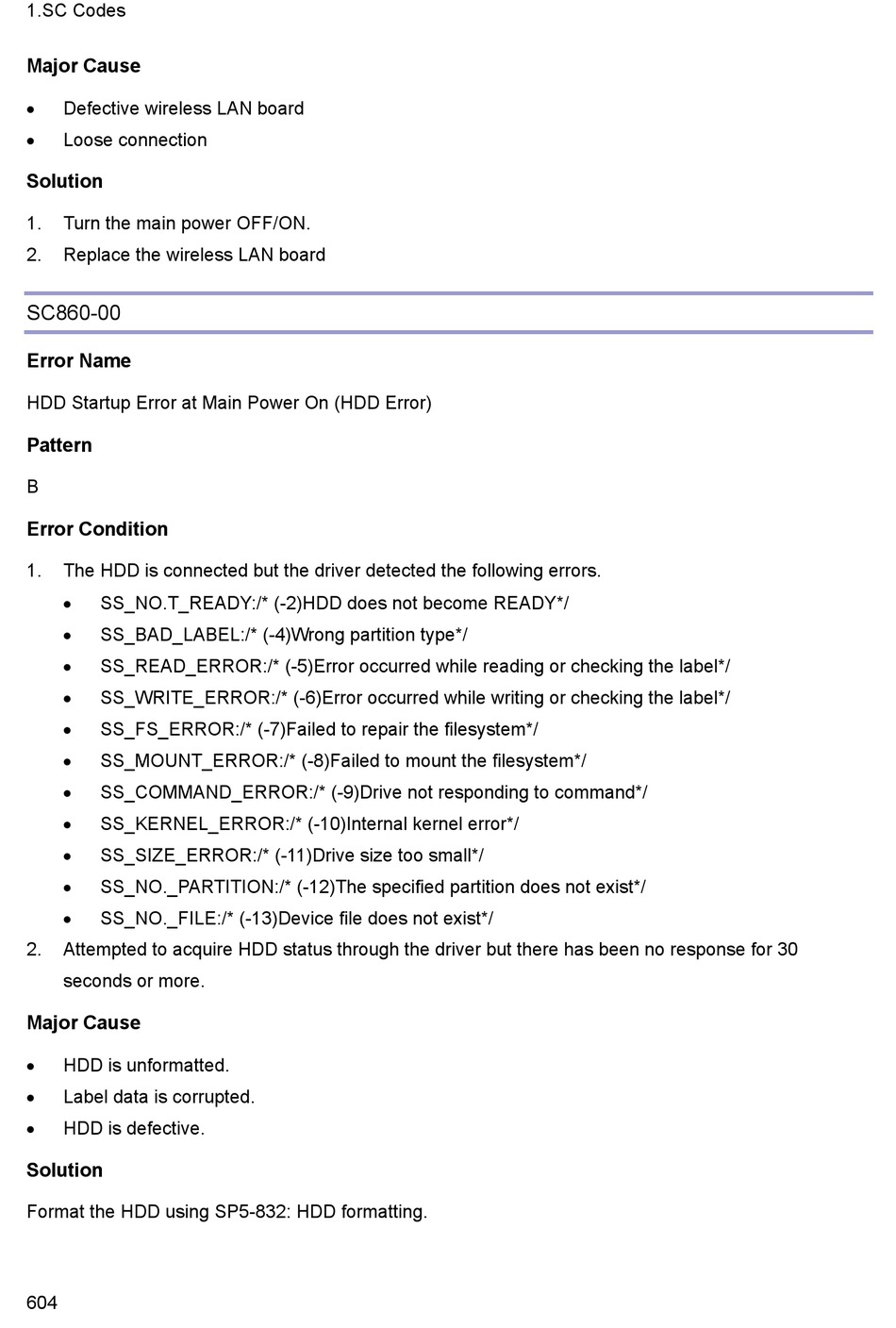

Sc860-00; Hdd Startup Error At Main Power On (Hdd Error) - Ricoh Pro 8300S Troubleshooting Manual

1.SC Codes
Major Cause
Defective wireless LAN board

Loose connection

Solution
1. Turn the main power OFF/ON.
2. Replace the wireless LAN board

SC860-00

Error Name

HDD Startup Error at Main Power On (HDD Error)

Pattern
B
Error Condition
1. The HDD is connected but the driver detected the following errors.
SS_NO.T_READY:/* (-2)HDD does not become READY*/

SS_BAD_LABEL:/* (-4)Wrong partition type*/

SS_READ_ERROR:/* (-5)Error occurred while reading or checking the label*/

SS_WRITE_ERROR:/* (-6)Error occurred while writing or checking the label*/

 SS_FS_ERROR:/* (-7)Failed to repair the filesystem*/
SS_MOUNT_ERROR:/* (-8)Failed to mount the filesystem*/

SS_COMMAND_ERROR:/* (-9)Drive not responding to command*/

SS_KERNEL_ERROR:/* (-10)Internal kernel error*/

SS_SIZE_ERROR:/* (-11)Drive size too small*/

 SS_NO._PARTITION:/* (-12)The specified partition does not exist*/
SS_NO._FILE:/* (-13)Device file does not exist*/

2. Attempted to acquire HDD status through the driver but there has been no response for 30
seconds or more.
Major Cause
HDD is unformatted.

Label data is corrupted.

 HDD is defective.
Solution
Format the HDD using SP5-832: HDD formatting.
604
