Setting Up the ADS1282EVM-PDK
The ADS1282EVM-PDK contains both the ADS1282EVM and the MMB0 motherboard; however, the
devices are shipped unconnected. Follow these steps to set up the ADS1282EVM-PDK.
Step 1. Unpack the ADS1282EVM-PDK kit.
Step 2. Set the jumpers and switches on the MMB0 as shown in
•
Set the Boot Mode switch to USB.
•
Set jumper J4 low to indicate that the EVM board is an ADS1282EVM.
SBAU144C – March 2009 – Revised May 2011
Submit Documentation Feedback

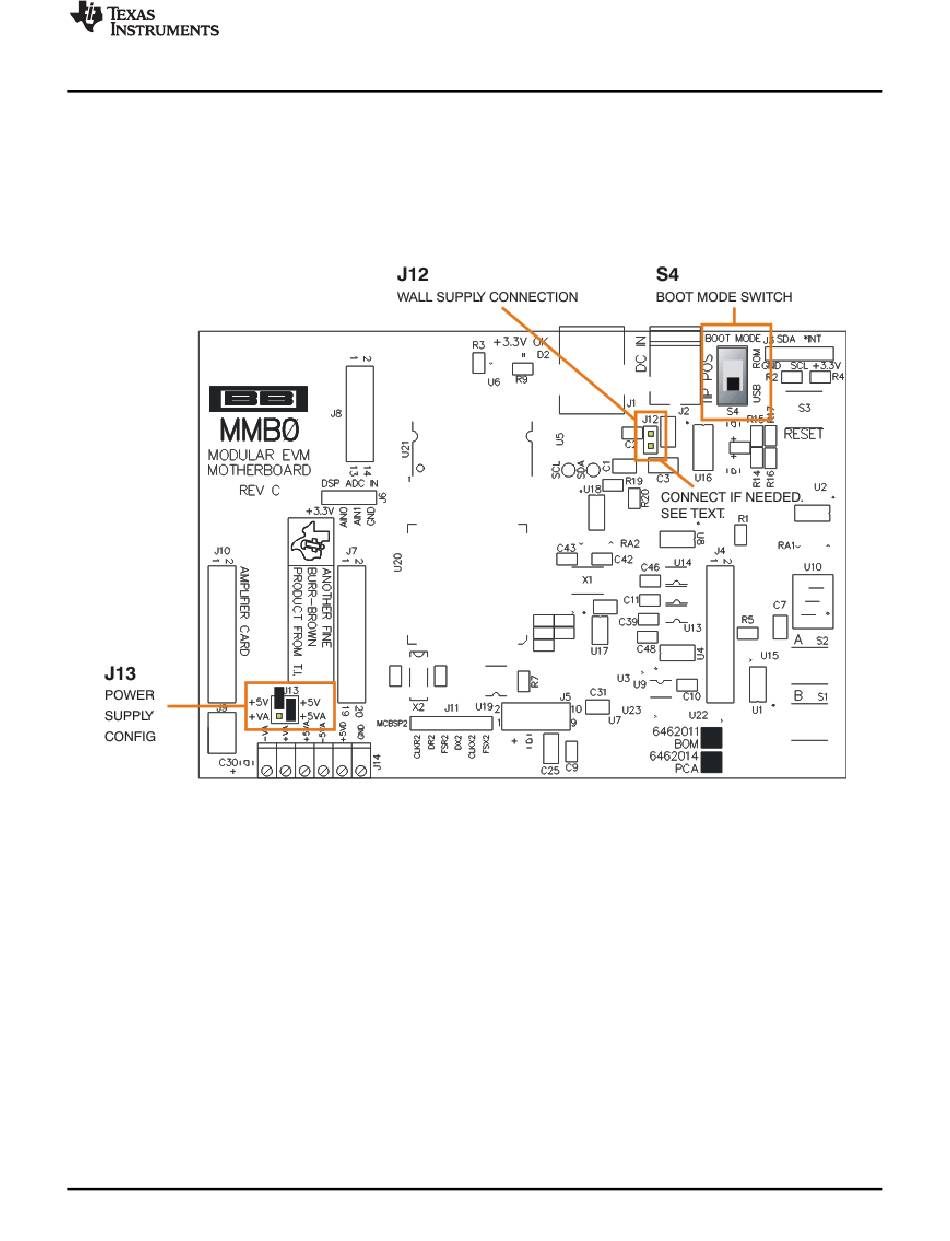

Figure 5. MMB0 Initial Setup
Copyright © 2009–2011, Texas Instruments Incorporated
ADS1282EVM-PDK Kit Operation
Figure
5.
ADS1282EVM and ADS1282EVM-PDK User's Guide
9
