6.2 Setting Up the MSOP-8EVM-PDK
The MSOP-8EVM-PDK contains both the MSOP-8EVM and the MMB0 motherboard; however, the
devices are shipped unconnected. Follow these steps to set up the MSOP-8EVM-PDK:
Step 1. Unpack the MSOP-8EVM-PDK kit.
Step 2. Set the jumpers and switches on the MMB0 as shown in
(a) Set the Boot Mode switch to USB.
(b) Connect +5V and +5VA on jumper block J13 (if +5V is supplied from J14 +5VA).
(c) Leave +5V and +VA disconnected on jumper block J13.
(d) If the PDK will be powered from an ac adapter, and used in unipolar mode, connect J12.
If the PDK will be powered through the terminal block or will be used in bipolar mode,
disconnect J12.
Step 3. Set the jumpers on the MSOP-8 EVM board as shown in
are the factory-configured settings for the MSOP-8 EVM):
(a) Set I/O Voltage jumper block JMP3 as shown in
(b) Set the reference source select jumpers (JMP5 and JMP6) to the onboard/BUF positions.
(c) Set the CS/SHDN source select jumper (JMP2) to the FS position.
(d) Set up VCC jumper block JMP1 as shown in
SBAU140A – December 2008 – Revised February 2016
Submit Documentation Feedback

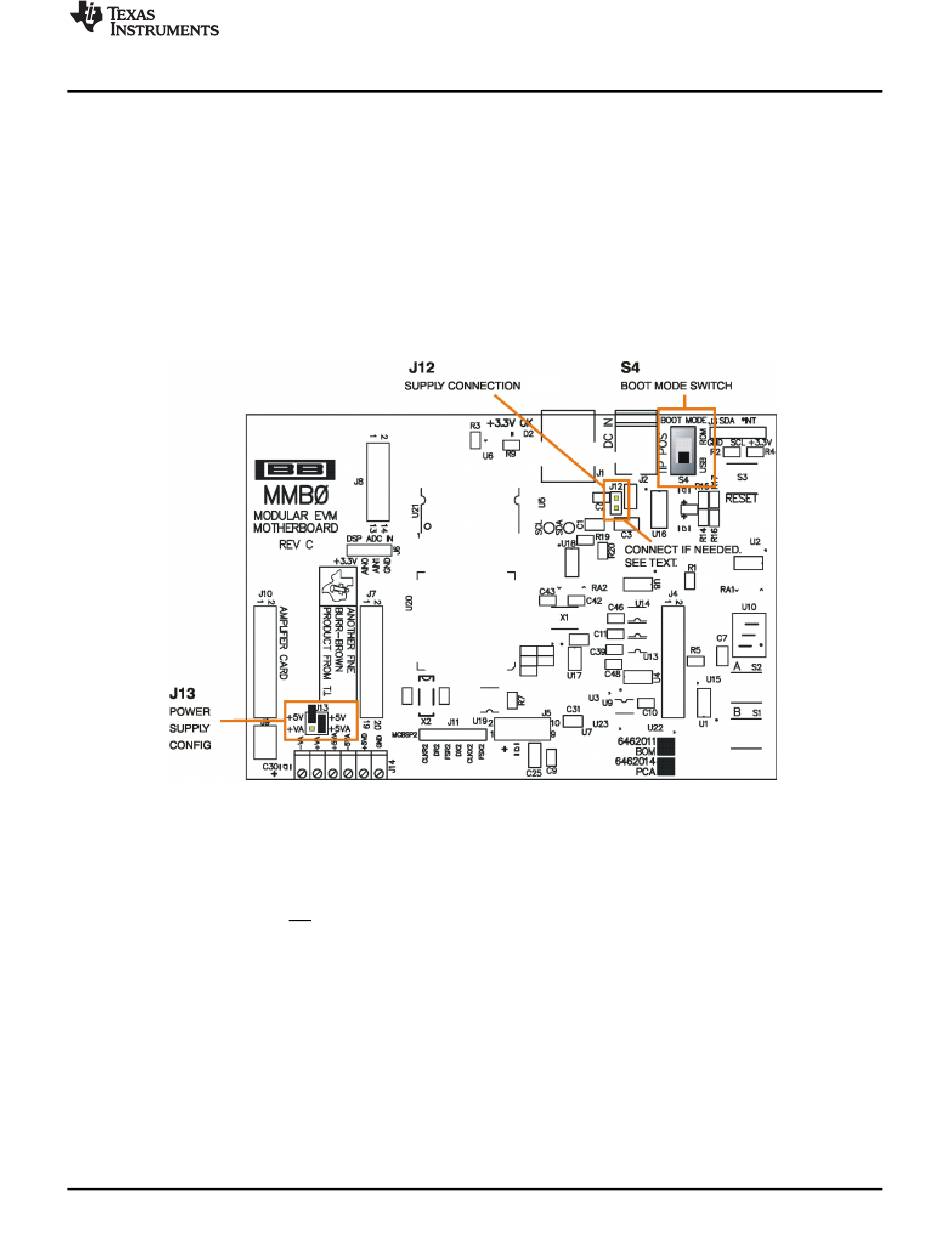

Figure 2. MMB0 Initial Setup
Copyright © 2008–2016, Texas Instruments Incorporated
MSOP-8EVM-PDK Kit Operation
Figure 2.
Figure 3 (note that these jumpers
Figure 3.
Figure 3.
MSOP-8EVM and MSOP-8EVM-PDK
