ADS1281EVM and ADS1281EVM-PDK User's Guide
This user's guide describes the characteristics, operation, and use of the ADS1281EVM, both by itself and
as part of the ADS1281EVM-PDK. This evaluation model (EVM) is an evaluation board for the ADS1281,
a high-performance, 32-bit, single-channel, delta-sigma analog-to-digital converter (ADC). The EVM allows
evaluation of all aspects of the ADS1281. Complete circuit descriptions, schematic diagrams, and bills of
material are included in this document.
The following related documents are available for download through the Texas Instruments web site at
http://www.ti.com.
Device
ADS1281
REF5025
REF5050
OPA2350
OPA1632
PCA9535
ADCPro is a trademark of Texas Instruments.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
SPI is a trademark of Motorola, Inc.
2
I
C is a trademark of NXP Semiconductors.
NI-VISA is a trademark of National Instruments.
All other trademarks are the property of their respective owners.
SBAU143C – March 2009 – Revised May 2011
Submit Documentation Feedback

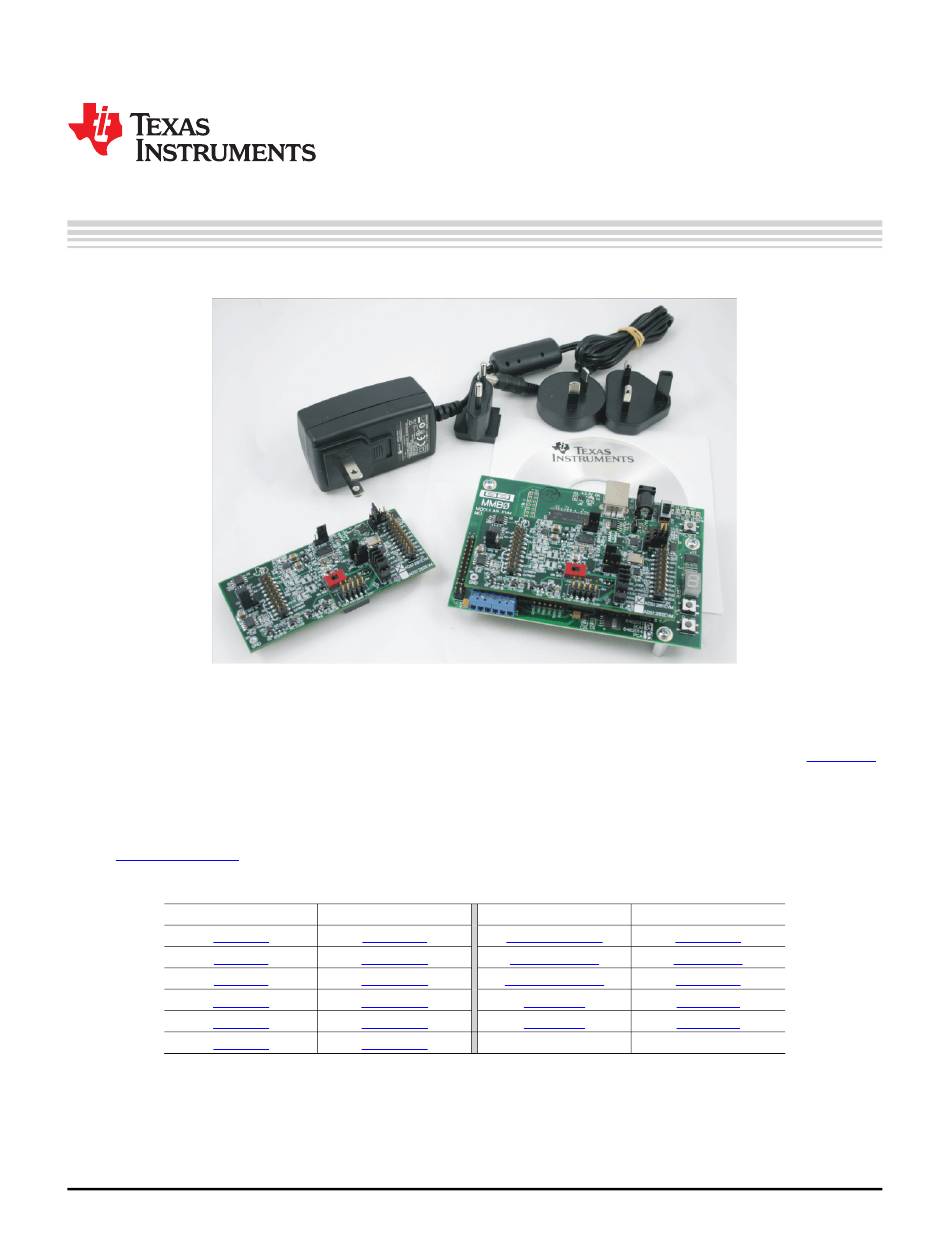

ADS1281EVM (Left) and ADS1281EVM-PDK (Right)
EVM-Compatible Device Data Sheets
Literature Number
SBAS378B
SBOS410C
SBOS410C
SBOS099C
SBOS286A
SCPS129H
Copyright © 2009–2011, Texas Instruments Incorporated
SBAU143C – March 2009 – Revised May 2011
Device
Literature Number
SN74LVC2G157
SCES207K
SN74LVC1G07
SCES296W
SN74AHCT1G04
SCLS319N
TPS79225
SLVS337B
TPS72325
SLVS346B
ADS1281EVM and ADS1281EVM-PDK User's Guide
User's Guide
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments ADS1281EVM
Summary of Contents for Texas Instruments ADS1281EVM
- Page 1 ADS1281EVM and ADS1281EVM-PDK User's Guide ADS1281EVM (Left) and ADS1281EVM-PDK (Right) This user's guide describes the characteristics, operation, and use of the ADS1281EVM, both by itself and as part of the ADS1281EVM-PDK. This evaluation model (EVM) is an evaluation board for the ADS1281, a high-performance, 32-bit, single-channel, delta-sigma analog-to-digital converter (ADC).
-
Page 2: Table Of Contents
J6: Analog Interface Pinout ....................J5: Serial Interface Pins ..................J3 Configuration: Power-Supply Input ......................Bill of Materials SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 3: Evm Overview
The MMB0 motherboard allows the ADS1281EVM to be connected to the computer via an available USB port. This manual shows how to use the MMB0 as part of the ADS1281EVM-PDK, but does not provide technical details about the MMB0 itself. -
Page 4: Digital Interface
Digital Interface www.ti.com The input pins on the ADS1281EVM are directly connected to the part, with no filtering or protection. It is important to take appropriate caution when handling the pins. Table 1 summarizes the pinouts for analog interfaces J6. -
Page 5: Power Supplies
Jumpers must be properly placed across J7.1 and J7.2 as well as J7.3 and J7.4 to properly power the ADS1281 (shown in Figure Figure 1. Connectors for J7 SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 6: Voltage Reference
TOUT pin (J5.17). Usage in PDK If using the ADS1281EVM as part of the ADS1281EVM-PDK, the J3 jumper should be set to the DVDD position. Using the onboard 4.096MHz crystal oscillator allows the the ADS1281EVM-PDK software to recognize the EVM using the software provided. -
Page 7: Evm Operation
EVM and the respective factory default conditions for each. Figure 4. ADS1281EVM Default Jumper Locations There is only one switch, S1, located on the ADS1281EVM; it is used to set VREF. The default position is to the left, indicating the EVM is to use the onboard reference voltage. -
Page 8: Ads1281Evm-Pdk Kit Operation
CD). Double-click the file to run it; then follow the instructions shown. You can also utilize the ADCPro Update Check feature to check for newer versions of the ADS1281EVM-PDK plug-in, once you have installed one version of it. -
Page 9: Mmb0 Initial Setup
• Set the Boot Mode switch to USB. • Set jumper J4 low to indicate that the EVM board is a ADS1281EVM. Figure 5. MMB0 Initial Setup SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright ©... -
Page 10: Connecting Ads1281Evm To Mmb0
The MMB0 is a Modular EVM System motherboard. It is designed around the TMS320VC5507, a DSP with an onboard USB interface from Texas Instruments. The MMB0 also has 16MB of SDRAM installed. The MMB0 is not sold as a DSP development board, and it is not available separately. TI cannot offer support for the MMB0 except as part of an EVM kit. -
Page 11: Using The +6V Wall Supply For +5V
Connecting the Power Supply The ADS1281EVM-PDK requires both a +5V supply and a external supply (±10V to ±15V) to operate. The +5V supply can be provided by either the +6V wall supply (included with the EVM-PDK) or an additional external supply. -
Page 12: Using A External Supply For +5V
J14. It is not necessary to connect a +5V dc supply voltage to the +5VA terminal on J14 if the +5V/+5VA position on J13 is shorted. SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 13: Running The Software And Completing Driver Installation
The program for evaluating the ADS1281EVM-PDK is called ADCPro. This program uses a series of software plug-ins to communicate with the EVM. The ADS1281EVM-PDK plug-in is included in the ADS1281EVM-PDK package. -
Page 14: Ni-Visa Driver Installation Question
Running the Software and Completing Driver Installation www.ti.com Figure 10. NI-VISA Driver Installation Question Figure 11. NI-VISA Driver Installing SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 15: Ni-Visa Driver Complete Installation
Device Manager and locating the hardware as shown in Figure Figure 13. NI-VISA Driver Verification Using Device Manager SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 16: Adcpro Software Start-Up Display Window
Step 1. Start the software by selecting ADCPro from the Windows Start menu. The screen in Figure 14 appears. Figure 14. ADCPro Software Start-up Display Window SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 17: Ads1281Evm-Pdk Plug-In Display Window
Figure 15. ADS1281EVM-PDK Plug-In Display Window Step 2. The ADS1281EVM-PDK plug-in window has a status area at the top of the screen. When the plug-in is first loaded, the plug-in searches for the board. You will see a series of messages in the status area indicating this action. -
Page 18: Install New Driver Wizard Screen 1
Running the Software and Completing Driver Installation www.ti.com Figure 16. Install New Driver Wizard Screen 1 Figure 17. Install New Driver Wizard Screen 2 SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 19: Install New Driver Wizard Screen 3
Running the Software and Completing Driver Installation www.ti.com Figure 18. Install New Driver Wizard Screen 3 Figure 19. Install New Driver Wizard Screen 4 SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 20: Evaluating Performance With The Adcpro Software
USB port. Evaluating Performance with the ADCPro Software The evaluation software is based on ADCPro, a program that operates using a variety of plug-ins. (The ADS1281EVM plug-in is installed as described in the installation section, Section 10.) To use ADCPro, load an EVM plug-in and a test plug-in. To load an EVM plug-in, select it from the EVM menu. -
Page 21: Data Rate Select
When you change a setting on the ADS1281EVM plug-in, the setting immediately updates on the board. Settings on the ADS1281EVM correspond to settings described in the ADS1281 product data sheet; see the ADS1281 data sheet (available for download at the TI web site) for details. -
Page 22: Controls
A calibration feature is integrated into the ADS1281 to correct for offset and gain errors. The ADS1281EVM-PDK software is designed to allow the user to use either the built-in system calibration commands or manually calibrate the device by directly entering the values for the offset and gain registers of the ADS1281. -
Page 23: Calibration
ADS1281 are displayed on this tab, as Figure 25 illustrates. Figure 25. Calibration SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 24: Progress Bar While Collecting Data
Once you have configured the ADS1281 for your test scenario, press the ADCPro Acquire button to start the collection of the number of datapoints specified in the Test plug-in Block Size control. The ADS1281EVM-PDK plug-in disables all the front panel controls while acquiring, and displays a progress bar as shown in Figure Figure 26. -
Page 25: Schematics And Layout
Schematics and Layout www.ti.com Schematics and Layout Schematics for the ADS1281EVM are appended to this user's guide. The bill of materials is provided in Table 12.1 Bill of Materials NOTE: All components should be compliant with the European Union Restriction on Use of Hazardous Substances (RoHS) Directive. - Page 26 Switch, Mini dlide, DPDT SS22SDP2 PCB Test Point, Large Loop, Keystone 5011 Through-Hole Electronics Shorting blocks Samtec SNT-100-BK-G-H SBAU143C – March 2009 – Revised May 2011 ADS1281EVM and ADS1281EVM-PDK User's Guide Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
- Page 27 Page .......................... • Updated Table 3 NOTE: Page numbers for previous revisions may differ from page numbers in the current version. SBAU143C – March 2009 – Revised May 2011 Revision History Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
- Page 28 REVISION HISTORY DVDD ENGINEERING CHANGE NUMBER APPROVED RA2A 150nF 100K JPR-1X3 +10V AVDD 0.1uF FRC_BAT54 Ref+ MCLK PDWN Ref- +10V OPA227 ONS_MMBZ5231BLT1 SYNC MFLAG SW-DPDT PMODE VOUT 0.1uF 0.1uF RESET 22uF TEMP -10V TRIM 22uF FRC_BAT54 RA1A REF5050ID 100K +10V AVDD DVDD VOUT...
