EVM User's Guide: ADS1282V2EVM-PDK
ADS1282EVM-PDK Evaluation Module
Description

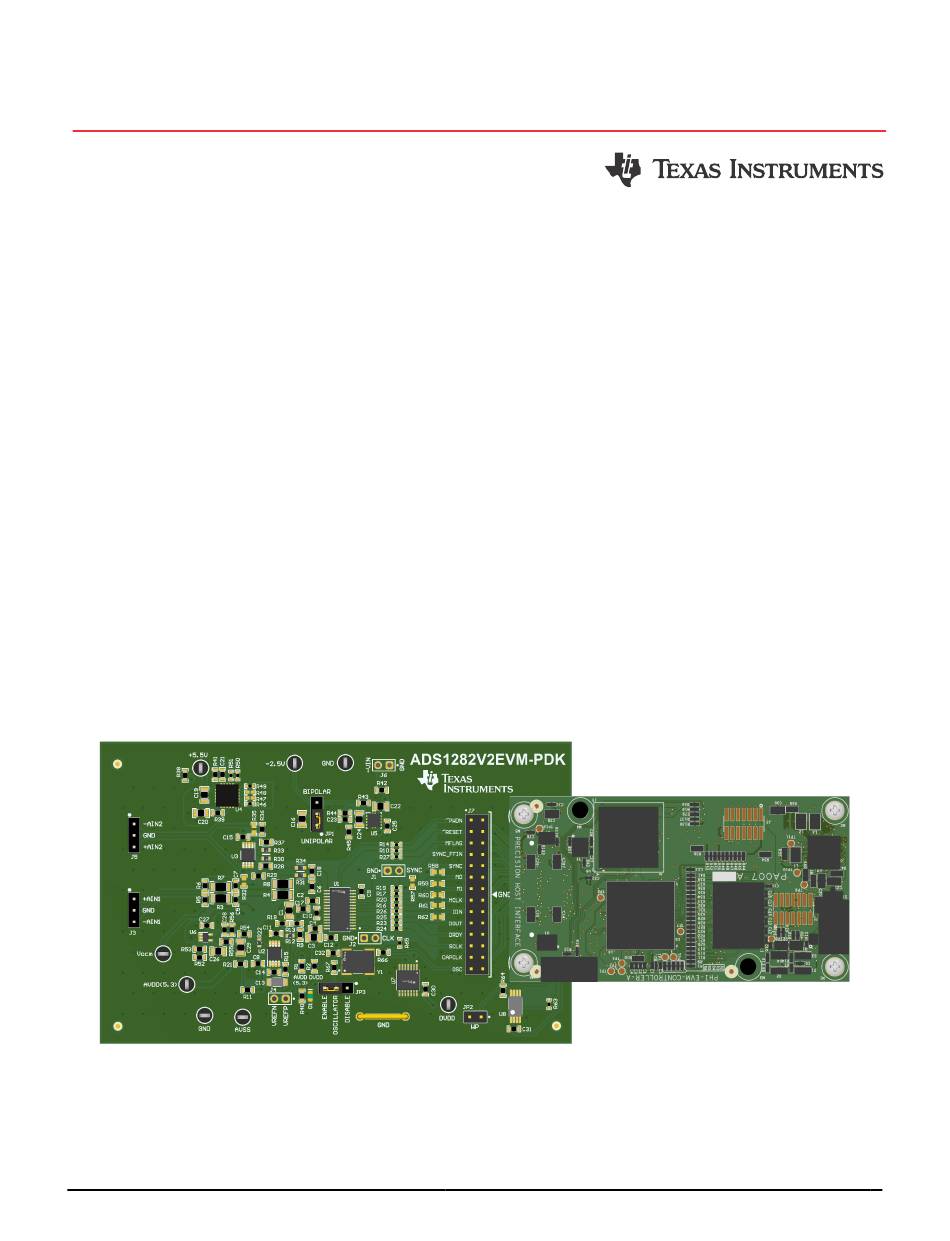

The ADS1282EVM is a platform for evaluating the
performance of the ADS1282, a high performance,
2-channel, 31-bit, delta-sigma ADC. The ADS1282
board includes the ADS1282 and all the peripheral
analog circuits and components required to extract
optimum performance from the ADC. The evaluation
kit includes the ADS1282EVM board and the
precision host interface (PHI) controller board that
enables the accompanying computer software to
communicate with the ADC over Universal Serial Bus
(USB) for data capture, configuration, and analysis.
Get Started
1. Order ADS1282EVM-PDK from
2. Download and install the
software
3. Connect the ADS1282EVM to the computer with
the included USB cable
4. Launch the ADS1282EVM GUI from the start
menu
5. Refer to the
ADS1282 data sheet
6. Visit the
E2E forums
SBAU431 – JULY 2024
Submit Document Feedback
ti.com
ADS1282EVM-PDK-GUI
for IC details
for support and questions
Copyright © 2024 Texas Instruments Incorporated
Features
High resolution: 130dB SNR (250SPS)
High accuracy: THD: –122dB, INL: 0.5ppm
Low-noise PGA
Two-channel input mux
Inherently-stable modulator with fast responding
overrange detection
Flexible digital filter:
– Sinc + FIR + IIR (selectable)
– Linear or minimum phase response
– Programmable high-pass filter
– Selectable FIR data rates: 250SPS to 4kSPS
Filter bypass option
Low power consumption: 25mW
– Shutdown: 10µW
Offset and gain calibration engine
SYNC input
Analog supply:
– Unipolar (+5V) or bipolar (±2.5V)
Digital supply: 1.8V to 3.3V
Applications
Energy exploration
Seismic monitoring
High-accuracy instrumentation
ADS1282EVM-PDK Evaluation Module
Description
1
