6.2
Setting Up the ADS8638EVM-PDK
The ADS8638EVM-PDK contains both the ADS8638EVM and the MMB0 motherboard; however, the
devices are shipped unconnected. Follow these steps to set up the ADS8638EVM-PDK.
Step 1. Unpack the ADS8638EVM-PDK kit.
Step 2. Set the jumpers and switches on the MMB0 as shown in
•
Set the Boot Mode switch to USB.
•
Connect +5 V and +5 VA on jumper block J13B (if +5 V is supplied from J14 +5 VA).
•
Leave +5 V and +VA disconnected on jumper block J13A.
•
If the PDK is powered from an ac adapter, connect J12. If the PDK is powered through
the terminal block, disconnect J12. (See
supply.)
SBAU192 – July 2011
Submit Documentation Feedback

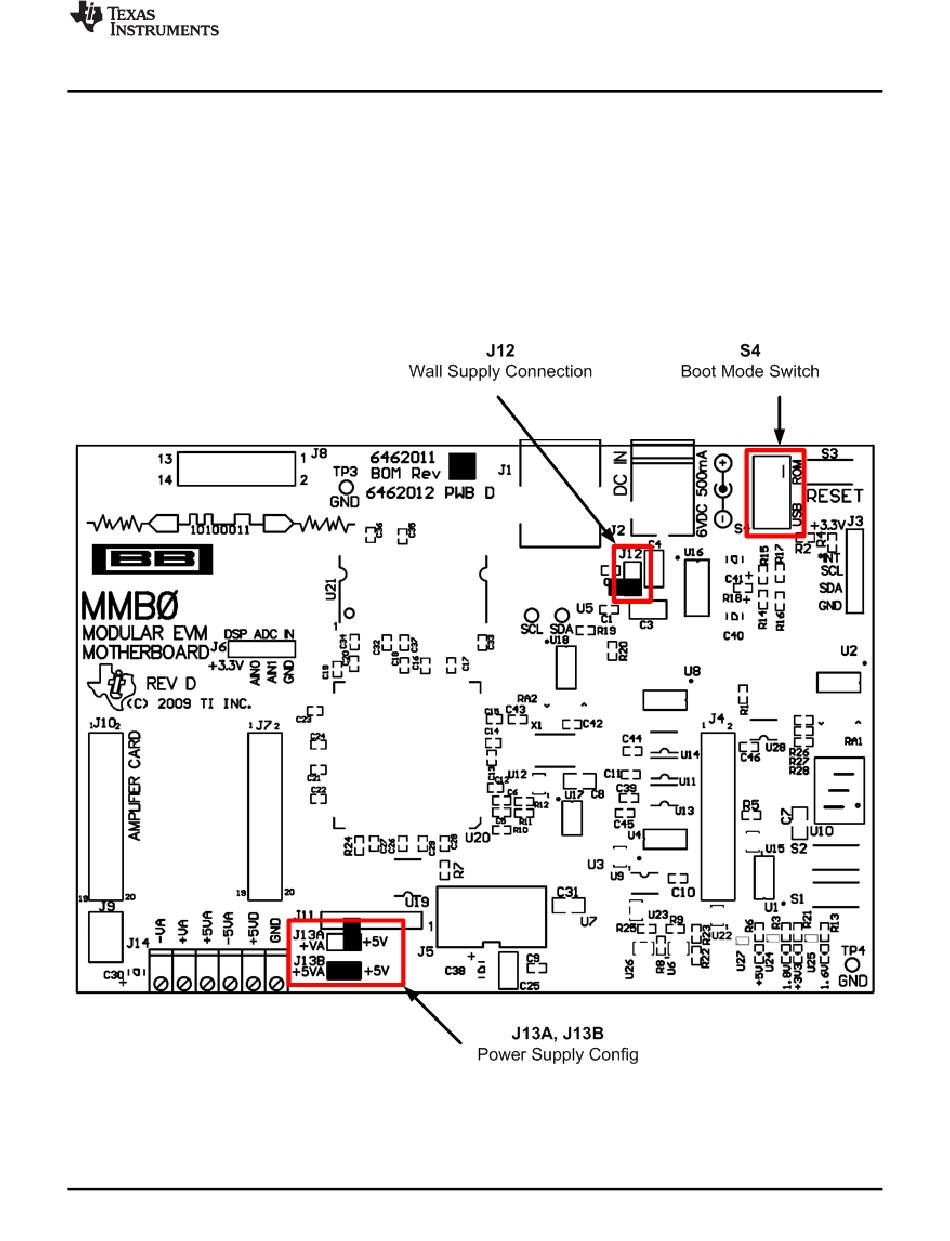

Figure 4. MMB0 Initial Setup
Copyright © 2011, Texas Instruments Incorporated
ADS8638EVM-PDK Kit Operation
Figure
4.
Section 6.3
for details on connecting the power
9
