11.1.2

Filter Tab

There are three different digital filter options in ADCPro. A Sinc Filter + LPF Filter Block is the default filter.
The Low-Pass Filter (LPF) can be removed or a High-Pass Filter (HPF) can be added (as shown in
Figure 26).
The LPF Phase Response control can be set to either Linear phase or Maximum phase. The Digital
Filter, LPF Phase Response and the High-pass Filter Corner Frequency are controlled in the Filter
Tab (as Figure 27
11.1.3 Calibration Tab
A calibration feature is integrated into the ADS1282 to correct for offset and gain errors. The
ADS1282EVM-PDK software is designed to allow the user to use either the built-in system calibration
commands or manually calibrate the device by directly entering the values for the offset and gain registers
of the ADS1282.
SBAU144C – March 2009 – Revised May 2011
Submit Documentation Feedback

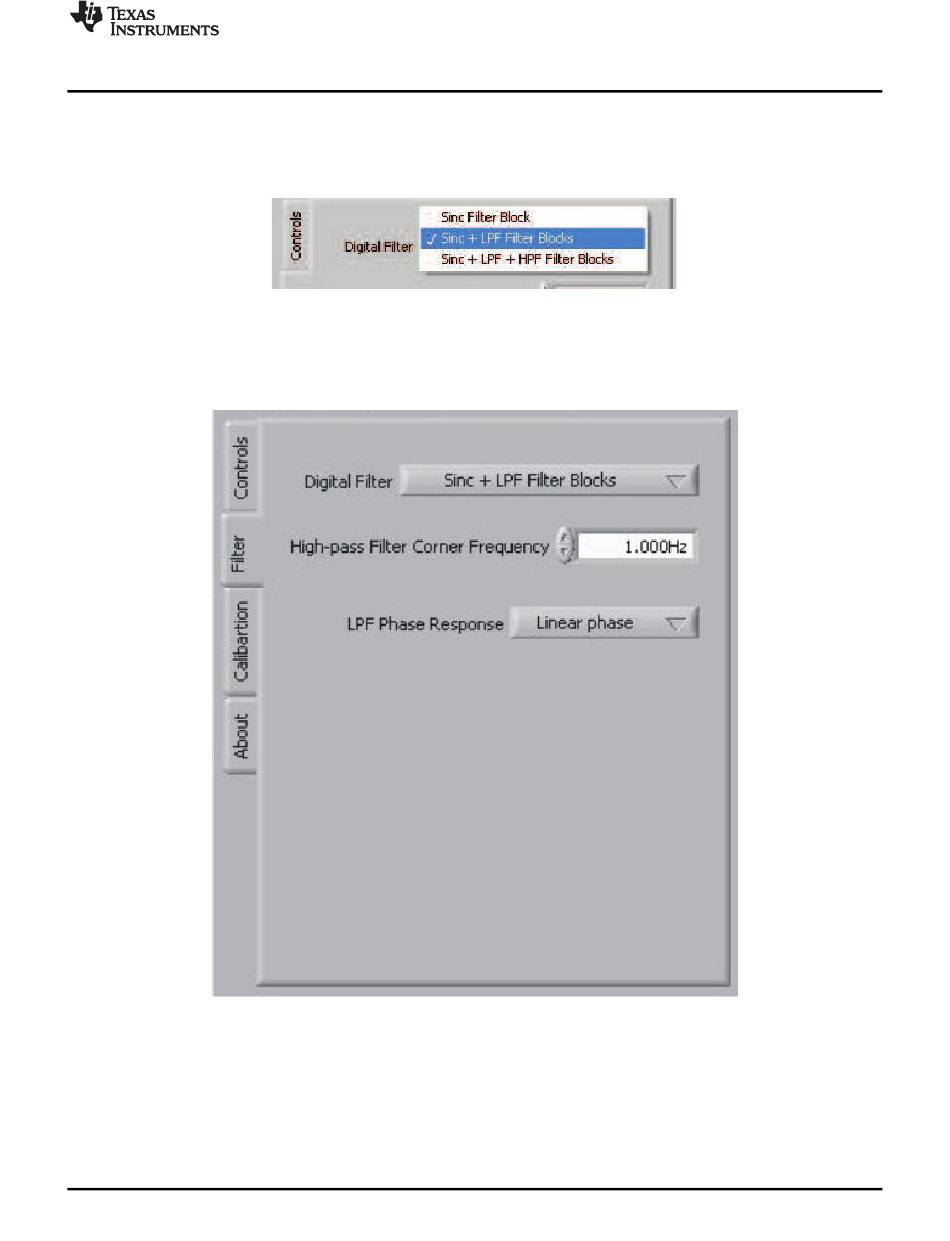

Figure 26. Digital Filter
shows).
Figure 27. Filter Tab
