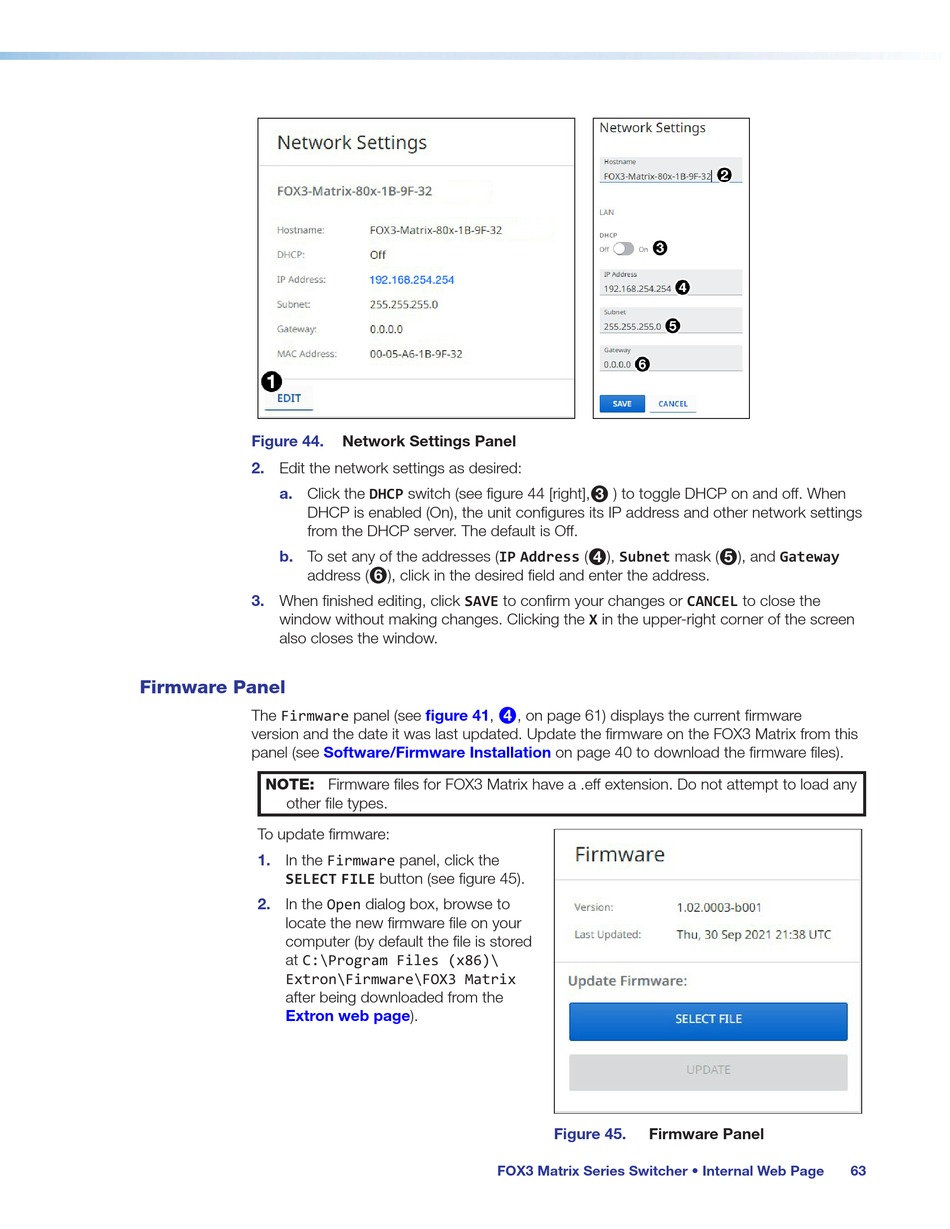

Figure 44.
2. Edit the network settings as desired:
a. Click the DHCP switch (see figure 44 [right],
DHCP is enabled (On), the unit configures its IP address and other network settings
from the DHCP server. The default is Off.
b. To set any of the addresses (IP Address (
address (
3. When finished editing, click SAVE to confirm your changes or CANCEL to close the
window without making changes. Clicking the X in the upper-right corner of the screen
also closes the window.

Firmware Panel

The Firmware panel (see figure 41,
version and the date it was last updated. Update the firmware on the FOX3 Matrix from this
panel (see
NOTE: Firmware files for FOX3 Matrix have a .eff extension. Do not attempt to load any
other file types.
To update firmware:
1. In the Firmware panel, click the
SELECT FILE button (see figure 45).
2. In the Open dialog box, browse to
locate the new firmware file on your
computer (by default the file is stored
at C:\Program Files (x86)\
Extron\Firmware\FOX3 Matrix
after being downloaded from the
Extron web
Network Settings Panel
), click in the desired field and enter the address.
6
4
Software/Firmware Installation
page).
FOX3 Matrix Series Switcher • Internal Web Page
) to toggle DHCP on and off. When
3
), Subnet mask (
4
, on page 61) displays the current firmware
on page 40 to download the firmware files).
Figure 45. Firmware Panel
), and Gateway
5
