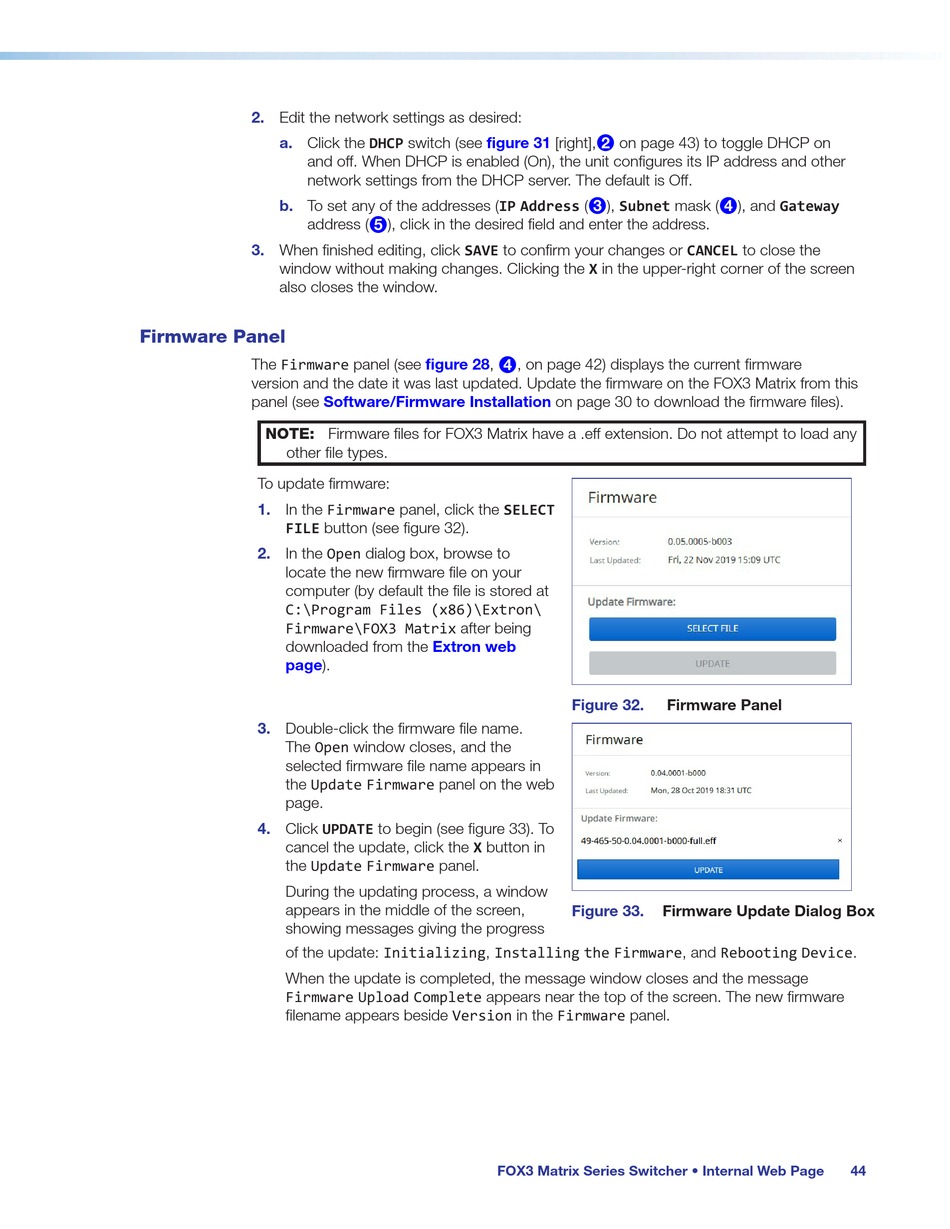

2. Edit the network settings as desired:
a. Click the DHCP switch (see
and off. When DHCP is enabled (On), the unit configures its IP address and other
network settings from the DHCP server. The default is Off.
b. To set any of the addresses (IP Address (
address (
3. When finished editing, click SAVE to confirm your changes or CANCEL to close the
window without making changes. Clicking the X in the upper-right corner of the screen
also closes the window.

Firmware Panel

The Firmware panel (see figure 28,
version and the date it was last updated. Update the firmware on the FOX3 Matrix from this
panel (see
NOTE: Firmware files for FOX3 Matrix have a .eff extension. Do not attempt to load any
other file types.
To update firmware:
1. In the Firmware panel, click the SELECT
FILE button (see figure 32).
In the Open dialog box, browse to
2.
locate the new firmware file on your
computer (by default the file is stored at
C:\Program Files (x86)\Extron\
Firmware\FOX3 Matrix after being
downloaded from the
page).
3. Double-click the firmware file name.
The Open window closes, and the
selected firmware file name appears in
the Update Firmware panel on the web
page.
4. Click UPDATE to begin (see figure 33). To
cancel the update, click the X button in
the Update Firmware panel.
During the updating process, a window
appears in the middle of the screen,
showing messages giving the progress
of the update: Initializing, Installing the Firmware, and Rebooting Device.
When the update is completed, the message window closes and the message
Firmware Upload Complete appears near the top of the screen. The new firmware
filename appears beside Version in the Firmware panel.
figure 31
), click in the desired field and enter the address.
5
4
Software/Firmware Installation
Extron web
FOX3 Matrix Series Switcher • Internal Web Page
[right], on page 43) to toggle DHCP on
2
), Subnet mask (
3
, on page 42) displays the current firmware
on page 30 to download the firmware files).
Figure 32. Firmware Panel
Figure 33. Firmware Update Dialog Box
), and Gateway
4
