This initial configuration allows you to access the device configuration console through the Telnet IP protocol. To do
this, carry out the following steps:
• Configure the IP terminal Ethernet interface (normally a PC) with IP address in the range of [192.168.1.2,
192.168.1.254] and mask 255.255.255.0. E.g. 192.168.1.2, 255.255.255.0.
• Connect the IP terminal Ethernet interface to any of the Teldat C1+L router Ethernet Switch ports (connectors LAN
1..4) through the Ethernet cable (RJ45) supplied with the device.
• Start a Telnet session from the IP terminal towards IP address 192.168.1.1 ( Teldat C1+L router default address).
• The default configuration does not request access credentials (user/password) to access the console.
For further information on how to fully configure the device, please see the manuals included on the CD supplied with
the Teldat C1+L router.

1.3 Meaning of the LEDs

Front Panel

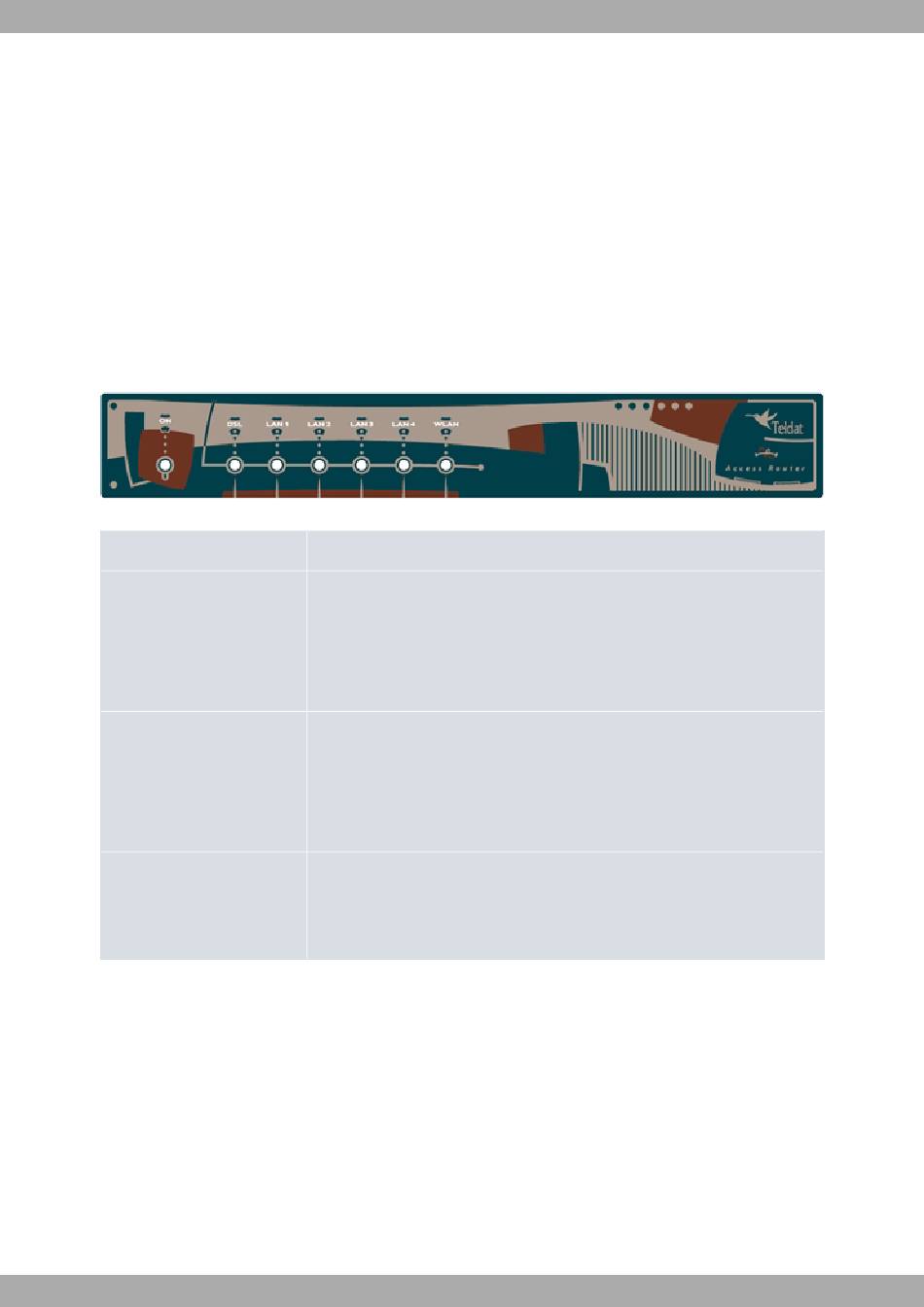

Fig. 13:
ON
LAN1..4
DSL
WLAN

1.4 RST Pushbutton

The Teldat C1+L router has a pushbutton labeled RST that allows you to ignore the current configuration and estab-
lish the default configuration.
The RST pushbutton is located on the rear of the Teldat C1+L router. It is protected in such a way that it's only ac-
cessible from the outside of the device by using something with a sharp end to press it.
Teldat C1+L Router
Power-on indicator, It lights when connected to the power. .
LAN Ethernet Switch:
OFF: The link hasn't established in this port.
GREEN: A link has established in this port.
Intermittent Traffic in the port.
DSL Interface:
SLOW FLASHING: The link hasn't established.
FAST FLASHING: The link is being established.
GREEN: The link has established.
WLAN Interface:
OFF: No data in the interface.
GREEN: Intermittent Traffic in the interface.
