1 Installing the Router

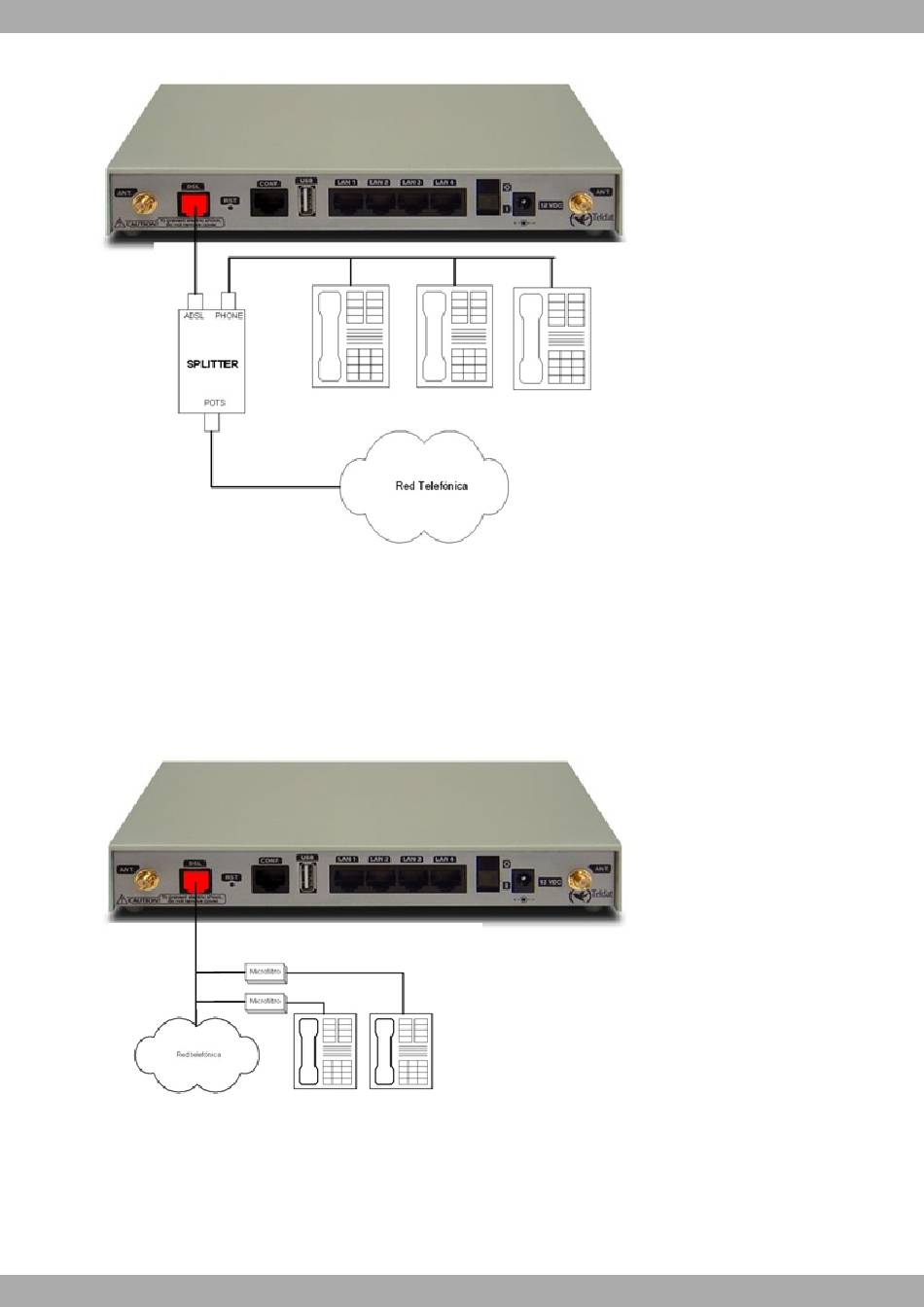

ADSL installation with a splitter
Fig. 7:
The micro-filters
The G. Lite (ITU G.922.2) operating mode uses reduced transmission power which allows the use of telephones dir-
ectly connected to the same line by using a device known as a "micro-filter" . This device ensures that the ADSL sig-
nal does not reach the telephone and that undesired signals generated by the telephone do not interfere with the AD-
SL signal.
A typical installation with micro-filters is shown in
ADSL installation with micro-filter
Fig. 8:
1.2.2.3 Wireless LAN connection (ANT connectors)
The Teldat C1+L router has two RF antenna connectors to connect an external antenna to improve the quality of the
signal received and transmitted by the Wireless LAN module. This module is internal and can be activated by pur-
chasing the corresponding software license. To assemble and disassemble the antennas provided with the device,
just screw them into the connectors, labeled ANT, which are located on the rear of the device.
6
Fig. 8 on page 6 .
