1 Installing the Router

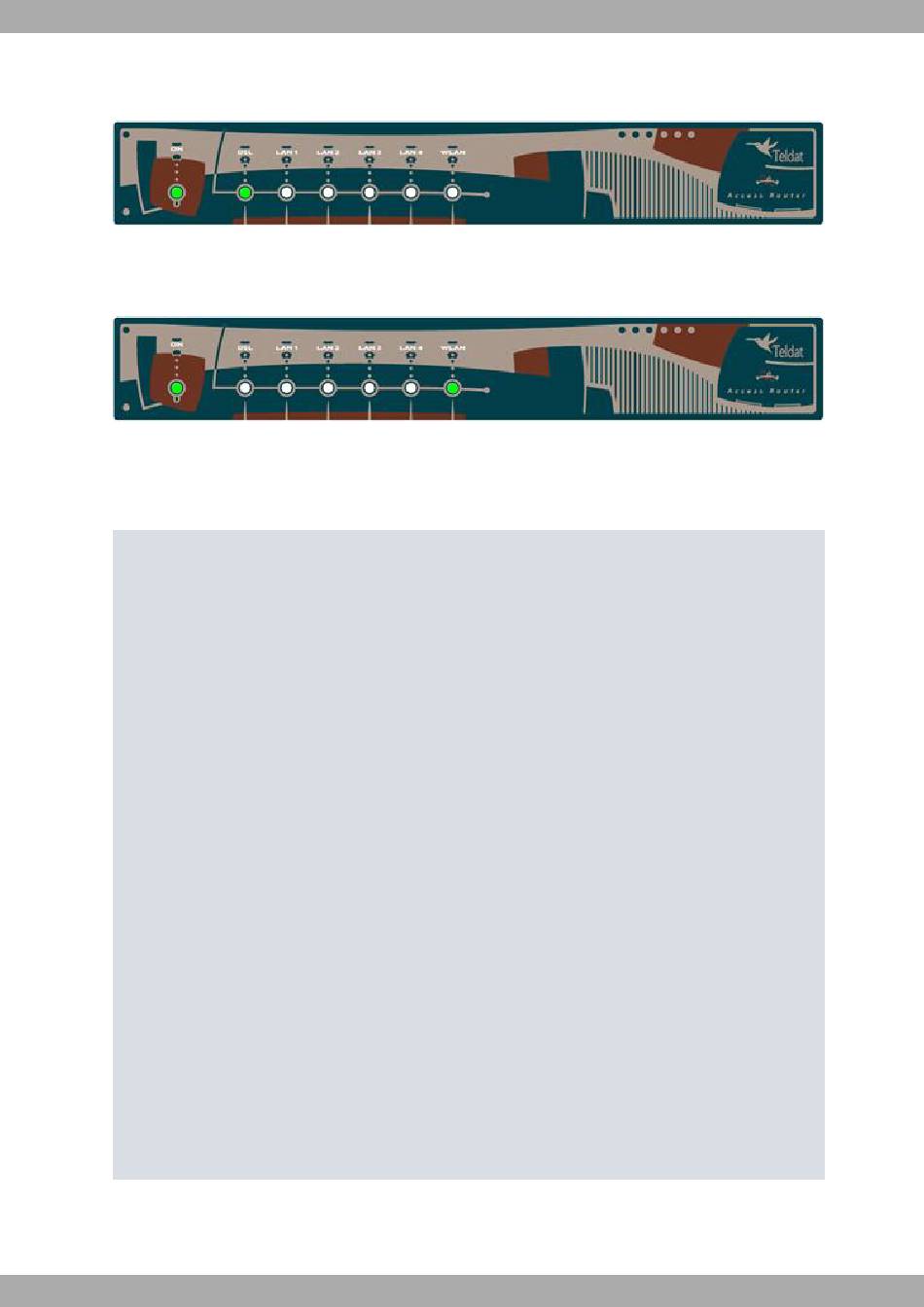

• After about 15 seconds, the WLAN LED goes out and the DSL LED lights up (see
pushbutton held down.
The WLAN LED goes out and the DSL lights up
Fig. 17:
• After about 3 seconds, the WLAN LED lights up, this time it's steady i.e. not flashing (see
the DSL goes out. Release the reset button at this point.
The WLAND LED lights up without flashing and the DSL goes out.
Fig. 18:
• Wait for a few seconds until the device completes start up. If you have a local console connected to the CONF.
port, you can see that the device has applied the default parameters from the BOOT configuration and has paused
start up in the BOOT menu (CFE> prompt):
CFE version 1.0.37-102.9-01 for BCM96358 (32bit,SP,BE)
Build Date: Fri Dec
Copyright (C) 2000-2008 Broadcom Corporation.
Parallel flash device: name AM29LV320MT, id 0x2201, size 16384KB
CPU type 0x2A010: 300MHz, Bus: 133MHz, Ref: 64MHz
CPU running TP0
Total memory: 67108864 bytes (64MB)
Boot Address 0xbe000000
*** Break into CFE console ***
Use default boot line parameters: e=192.168.1.1:ffffff00 h=192.168.1.100 g= r=f f= i= d=3 p=0
DHCP running
Board IP address
Host IP address
Gateway IP address
Run from flash/host (f/h)
Default host run file name
Default host flash file name
Boot delay (0-9 seconds)
Boot image (0=latest, 1=previous) : 0
Board Id (0-0)
Number of MAC Addresses (1-32)
Base MAC Address
PSI Size (1-64) KBytes
Main Thread Number [0|1]
DHCP running
web info: Waiting for connection on socket 0.
• The device is now in BOOT mode with the default IP configuration from BOOT (IP address 192.168.1.1 and mask
255.255.255.0).
Accessing the BOOT menu from the console without using the RST button.
12
4 12:10:54 CET 2009(jsirodey@orion)
: 192.168.1.1:ffffff00
: 192.168.1.100
:
: f
:
:
: 3
: 96358C1PL
: 4
: 00:a0:26:6e:00:58
: 24
: 0
Fig. 17 on page 12); keep the
Fig. 18 on page 12 ) and
