Wireless LAN antenna connectors
Fig. 9:

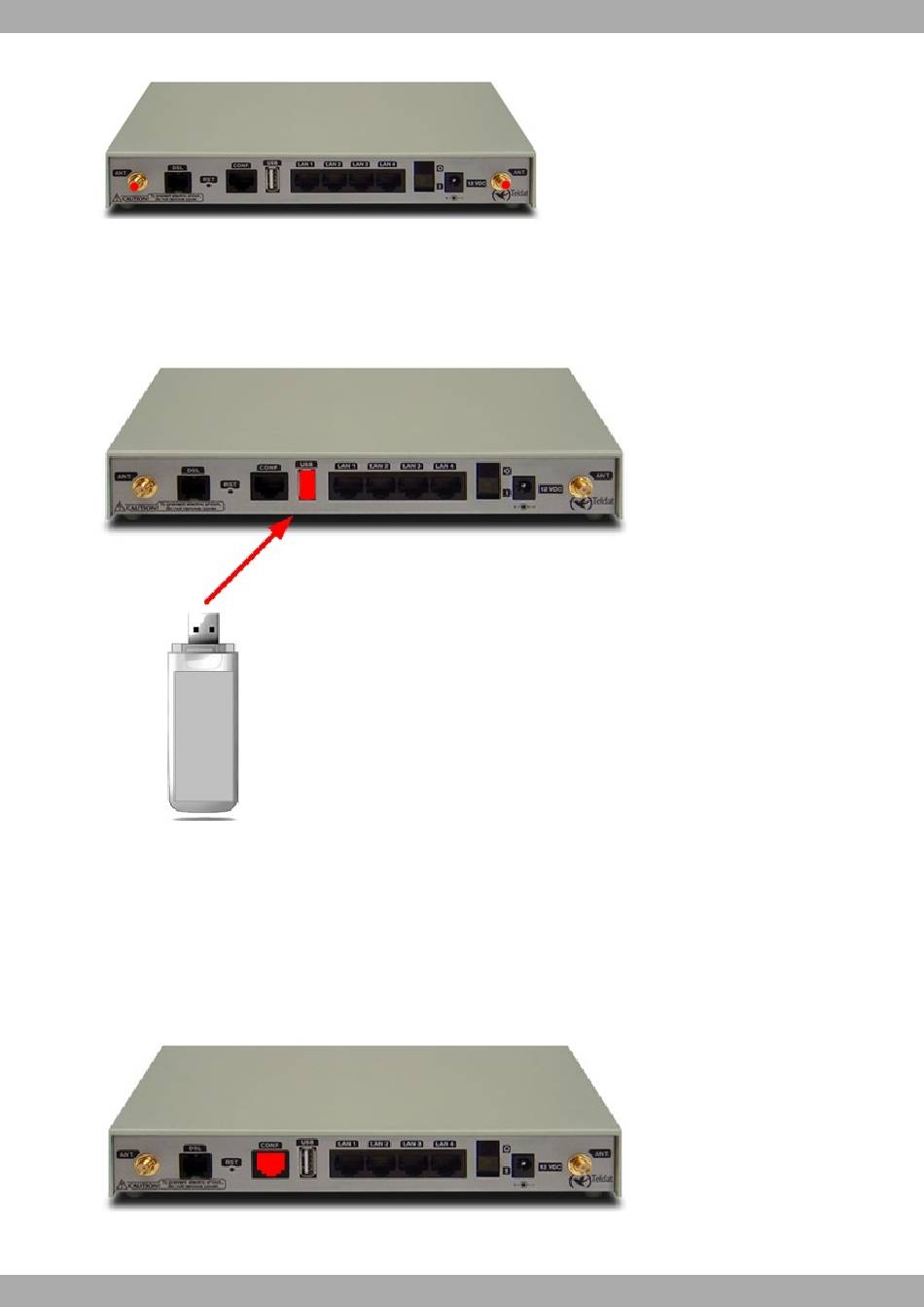

1.2.2.4 Connecting a 3G USB device (USB connector)
The Teldat C1+L router has a USB HOST 2.0 Type A connector interface which allows 3G USB modems to be con-
nected. The interface can be activated by purchasing the corresponding software license.
USB Connector
Fig. 10:

1.2.3 Configuration Connection

1.2.3.1 Configuration using a local console (CONF connector)
The Teldat C1+L router has a female RJ45 connector on the rear panel labeled as "Conf." , which provides access to
the device's local console. For configuration, you must connect the "Conf." port to an asynchronous terminal (or to a
PC with terminal emulation).
Configuration connector
Fig. 11:
Teldat C1+L Router
