1 Installation

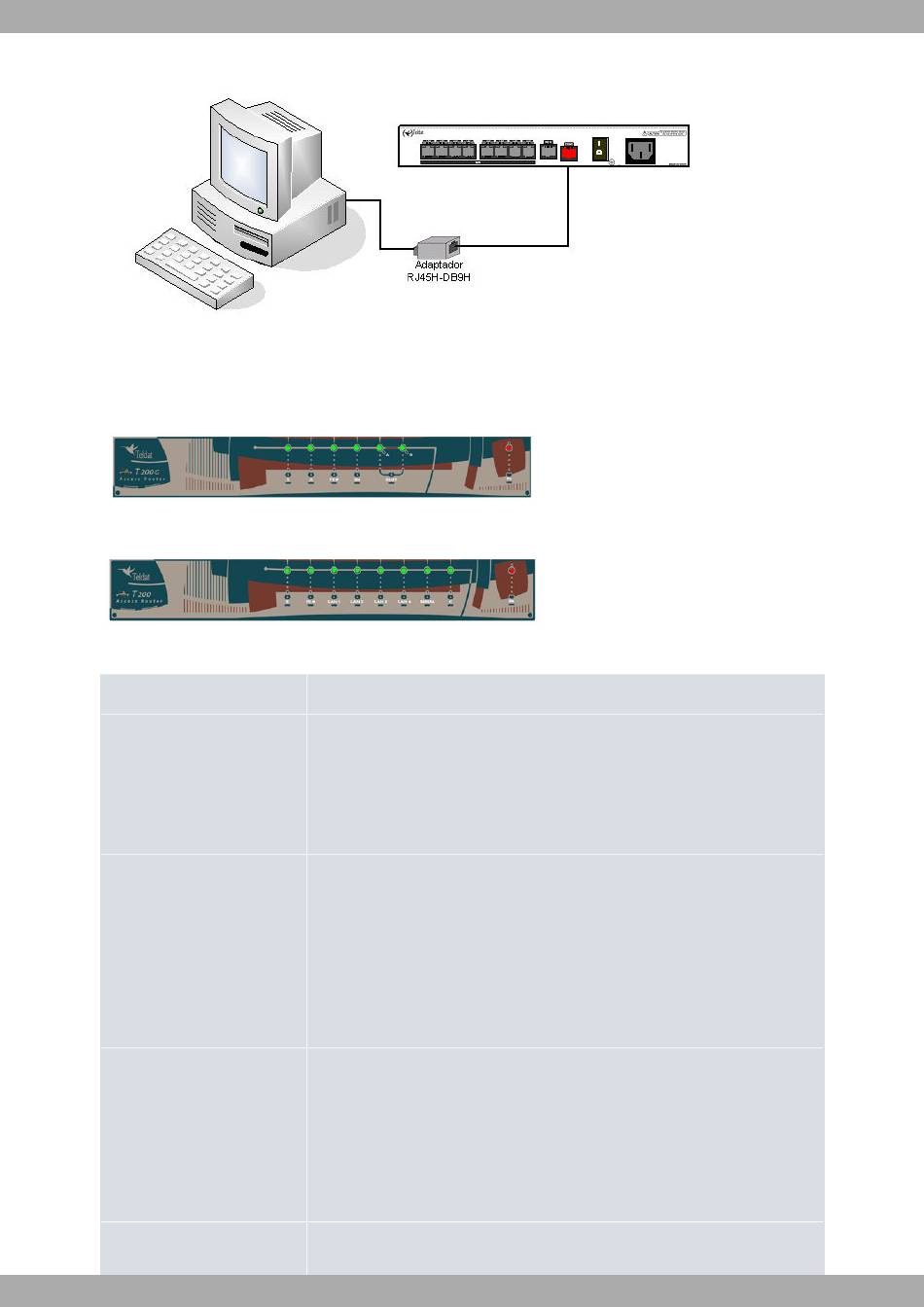

Fig. 12: Connecting for configuration

1.3 Meaning of the LEDs

Teldat T200
Fig. 13:
Teldat T200
Fig. 14:
ON
S
FE 0
SW
(T200G)
LAN
6
: Front panel
: Front panel
Power-on indicator. It lights up when connected to the power.
Router operation:
OFF: System off.
GREEN: System initialized and operating.
YELLOW: System with Telnet session established.
Fast Ethernet - WAN:
OFF: Interface not supported or not available.
RED: Interface is not available either because it is not enabled or there is a mal-
function in the auto-test.
YELLOW: Interface initialization in process.
GREEN: Interface available. Blinking: Maintenance frame being sent.
Switch(es) LAN Ethernet:
OFF: Switch(es) not available.
RED: Active Switch(es), there are no active devices connected.
GREEN: Active Switch(es), there is at least one active device connected.
Blinking: "heartbeat" .
Switch(es) LAN Ethernet:
