1 Installing the Router

1.3 Meaning of the LEDs

1.3.1 ATLAS 160 and ATLAS 260

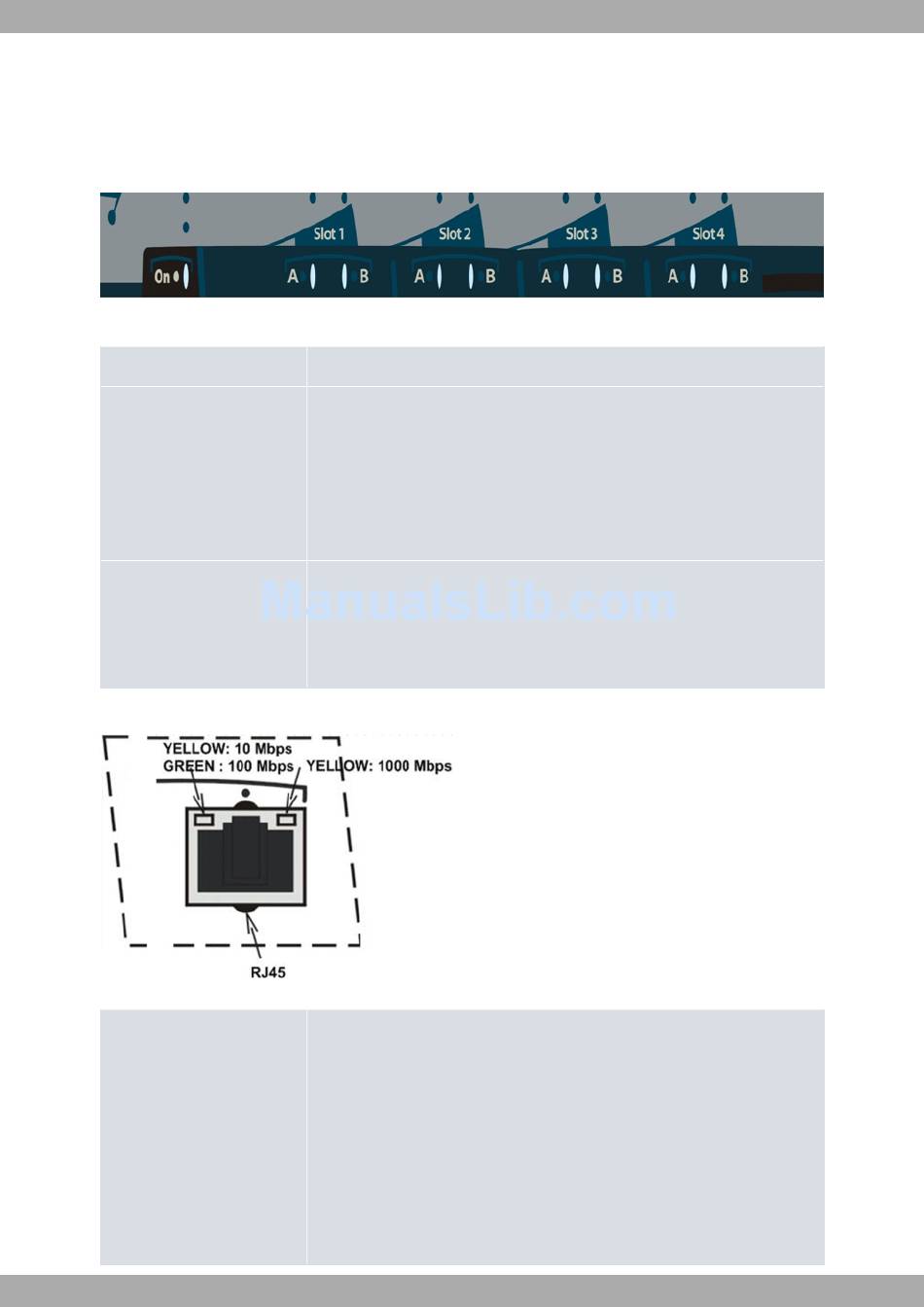

ATLAS 160 and ATLAS 260 LEDs
Fig. 12:
ON
SLOT [1-3]
A & B
SLOT 4
A & B
Specific connector LEDs
Specific connector LEDs
Fig. 13:
GEX
6
Power-on indicator. It lights up when connected to the power supply.
Depends on the card installed in the PCI Slot. Normally:
OFF: Interface not available or not installed (not supported).
RED: Interface not established, without data connection.
YELLOW: Connecting.
GREEN: Communications established.
The device has a MINI-PCI slot where you can install a Wireless LAN daughter
card.
Please see the manual on Wireless LAN interfaces to check how the LEDs oper-
ate.
Metallic connector:
-Left:
ORANGE: 10Mbps. Flashing depends on the activity.
GREEN: 100Mbps. Flashing depends on the activity.
-Right:
YELLOW: 1000Mbps. Flashing depends on the activity.
OFF: Both off means the link has not been detected.
