EnergyTech 401
Operating and Maintenance Manual
5.10.2 Set Averages
Page: 86
Four separate averages are calculated within the instrument. These are defined
in units of seconds, minutes, hours and days. Any of the four averaging stacks
can be used to provide the analogue output of the instrument. Each averaging
time can be set within predefined limits.

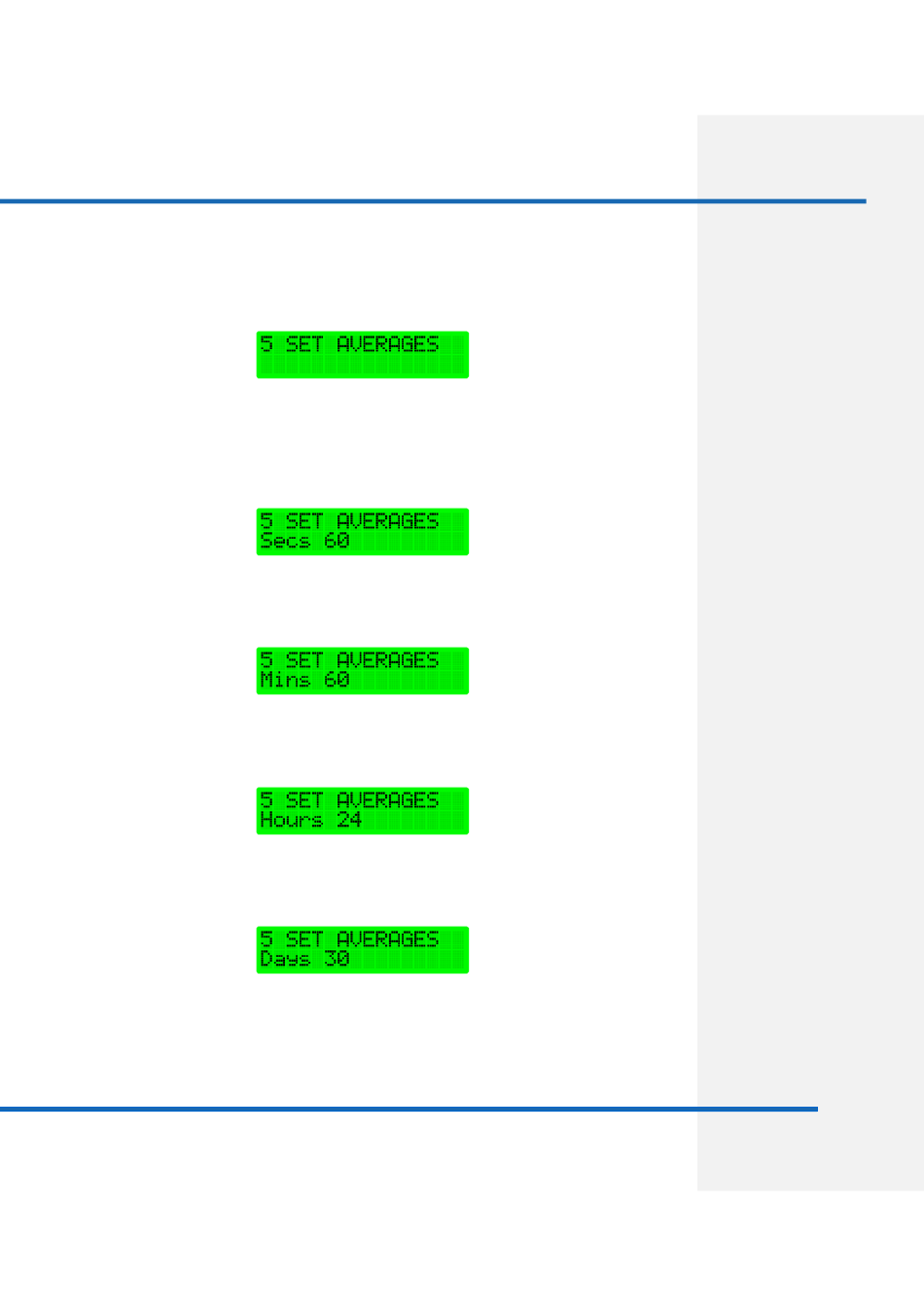

Press the ENTER key when this display is shown, the display will now show one of
the averages. Use the ARROW keys to select the average time that requires
changing, and press the ENTER key to change it. The value can now be changed
using the ARROW keys and input by pressing the ENTER key.
Set the seconds averaging stack to the required value. This is limited to within 10
to 60 seconds in10-second intervals.
Set the minutes averaging stack to the required value. This is limited to within 1
to 60 minutes in 1-minute intervals.
Set the hours averaging stack to the required value. This is limited to within 1 to
24 hours in 1-hour intervals.
Set the days averaging stack to the required value. This is limited to within 1 to
30 days in 1-day intervals.
