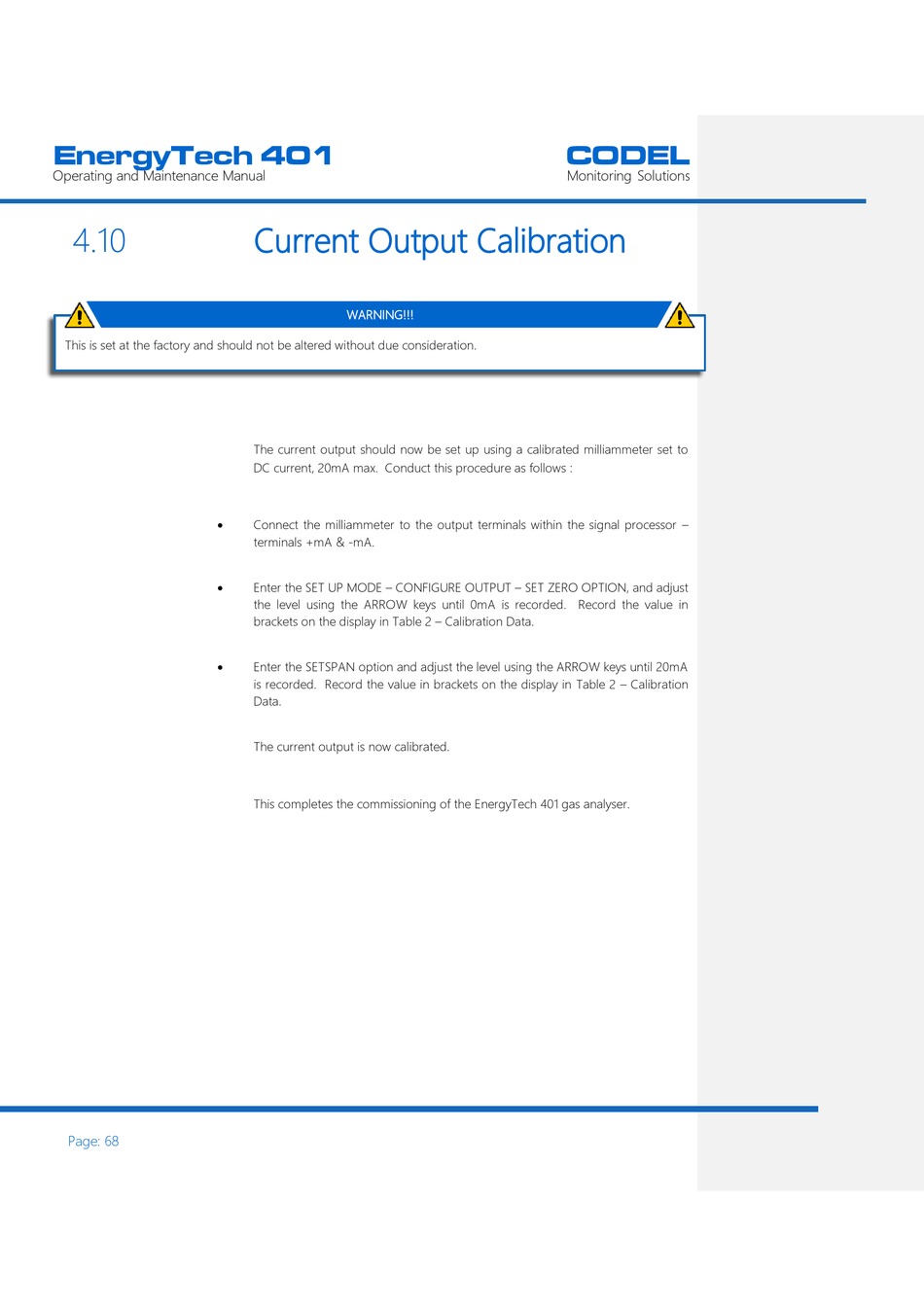

Current Output Calibration

WARNING!!!
The current output should now be set up using a calibrated milliammeter set to
DC current, 20mA max. Conduct this procedure as follows :
Connect the milliammeter to the output terminals within the signal processor –
terminals +mA & -mA.
Enter the SET UP MODE – CONFIGURE OUTPUT – SET ZERO OPTION, and adjust
the level using the ARROW keys until 0mA is recorded. Record the value in
brackets on the display in Table 2 – Calibration Data.
Enter the SETSPAN option and adjust the level using the ARROW keys until 20mA
is recorded. Record the value in brackets on the display in Table 2 – Calibration
Data.
The current output is now calibrated.
This completes the commissioning of the EnergyTech 401 gas analyser.
