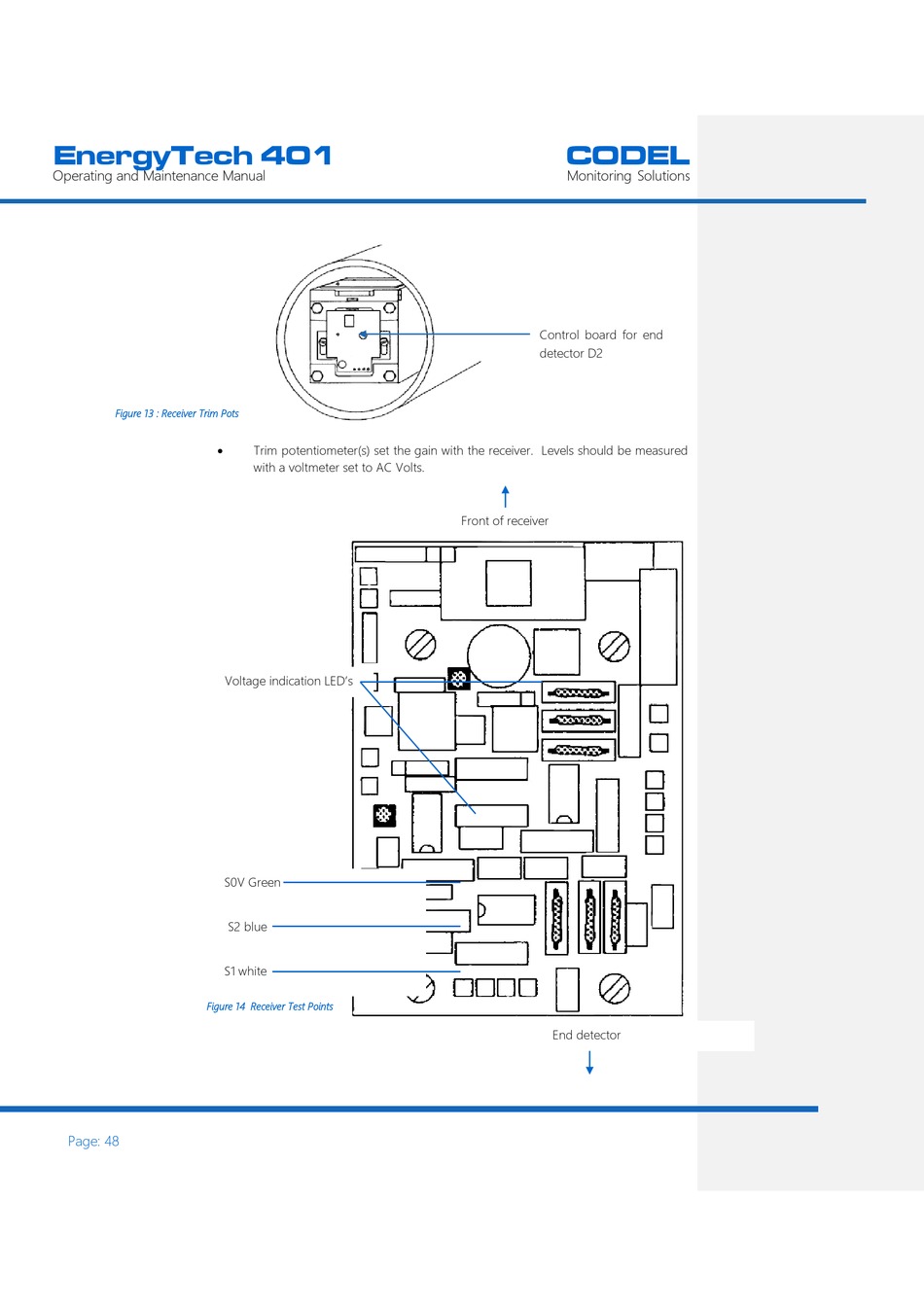

Figure 13 : Receiver Trim Pots


Voltage indication LED's
S0V Green
S1 white

Figure 14 Receiver Test Points

Page: 48
Trim potentiometer(s) set the gain with the receiver. Levels should be measured
with a voltmeter set to AC Volts.
S2 blue
CODEL
Monitoring Solutions
Control board for end
detector D2
Front of receiver
End detector
