EnergyTech 401
Operating and Maintenance Manual

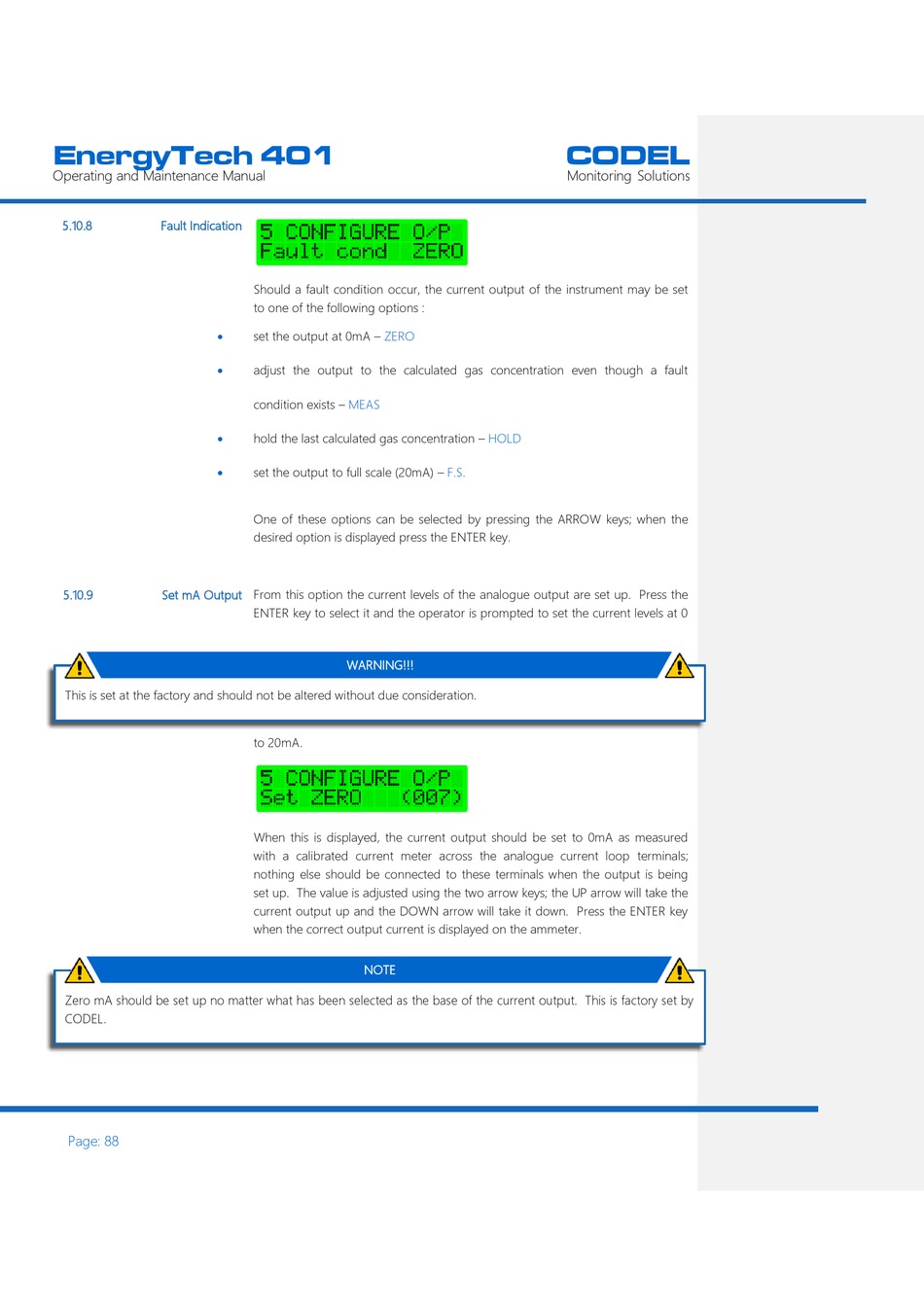

5.10.8

Fault Indication





5.10.9

Set mA Output

This is set at the factory and should not be altered without due consideration.
Zero mA should be set up no matter what has been selected as the base of the current output. This is factory set by
CODEL.
Page: 88
Should a fault condition occur, the current output of the instrument may be set
to one of the following options :
set the output at 0mA – ZERO
adjust the output to the calculated gas concentration even though a fault
condition exists – MEAS
hold the last calculated gas concentration –
set the output to full scale (20mA) –
One of these options can be selected by pressing the ARROW keys; when the
desired option is displayed press the ENTER key.
From this option the current levels of the analogue output are set up. Press the
ENTER key to select it and the operator is prompted to set the current levels at 0
WARNING!!!
to 20mA.
When this is displayed, the current output should be set to 0mA as measured
with a calibrated current meter across the analogue current loop terminals;
nothing else should be connected to these terminals when the output is being
set up. The value is adjusted using the two arrow keys; the UP arrow will take the
current output up and the DOWN arrow will take it down. Press the ENTER key
when the correct output current is displayed on the ammeter.
NOTE
CODEL
Monitoring Solutions
HOLD
F.S.
