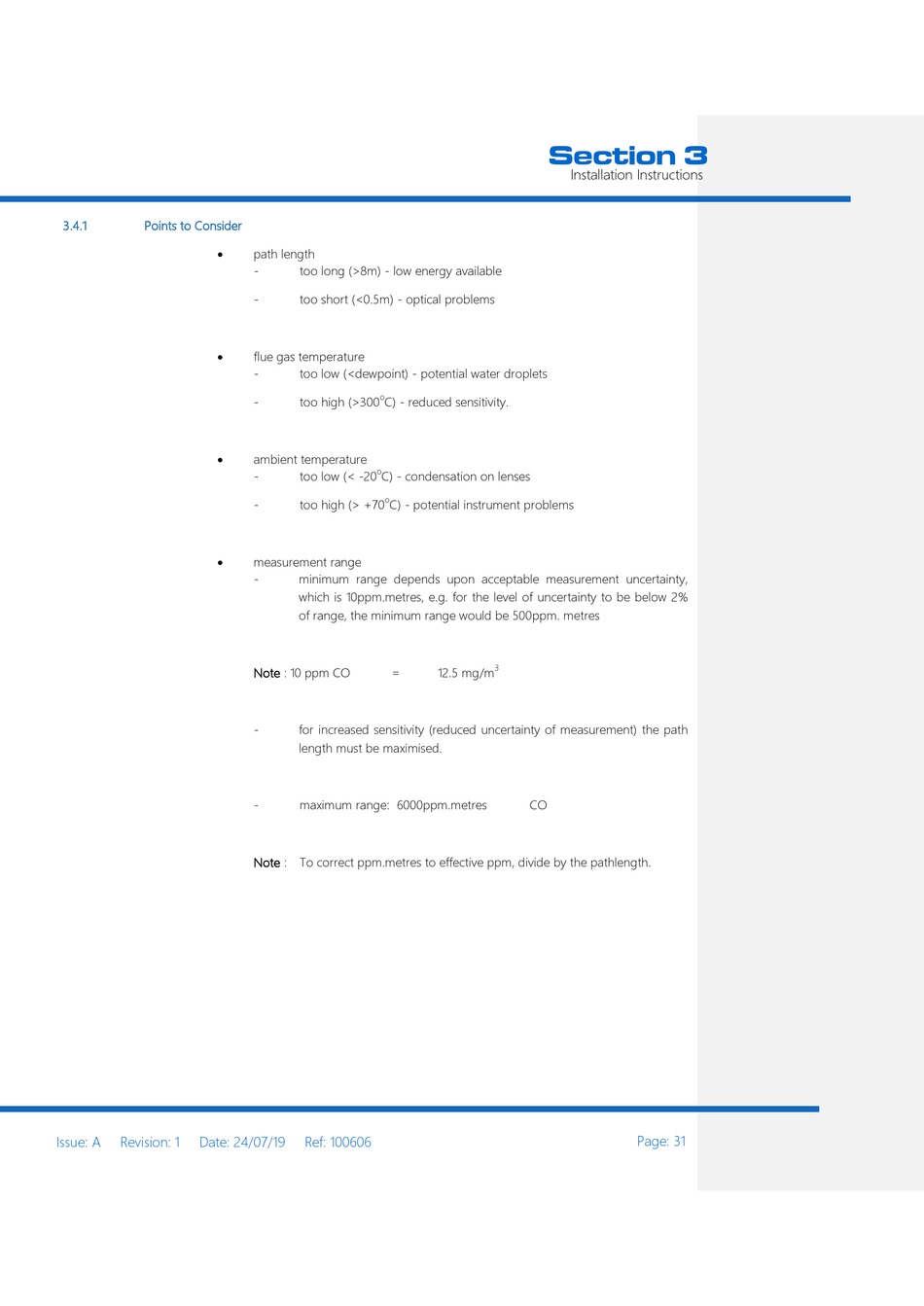

3.4.1

Points to Consider

Issue: A
Revision: 1
Date: 24/07/19
path length
-
too long (>8m) - low energy available
-
too short (<0.5m) - optical problems
flue gas temperature
-
too low (<dewpoint) - potential water droplets
o
-
too high (>300
C) - reduced sensitivity.
ambient temperature
o
-
too low (< -20
C) - condensation on lenses
o
-
too high (> +70
C) - potential instrument problems
measurement range
-
minimum range depends upon acceptable measurement uncertainty,
which is 10ppm.metres, e.g. for the level of uncertainty to be below 2%
of range, the minimum range would be 500ppm. metres
Note : 10 ppm CO
=
-
for increased sensitivity (reduced uncertainty of measurement) the path
length must be maximised.
-
maximum range: 6000ppm.metres
Note : To correct ppm.metres to effective ppm, divide by the pathlength.
Ref: 100606
Section 3
Installation Instructions
3
12.5 mg/m
CO
Page: 31
