4.7
It is recommended that CODEL is consulted before making any adjustments within the transmitter
Increasing source intensity may severely reduce the source life.


Issue: A Revision: 1 Date: 24/07/19

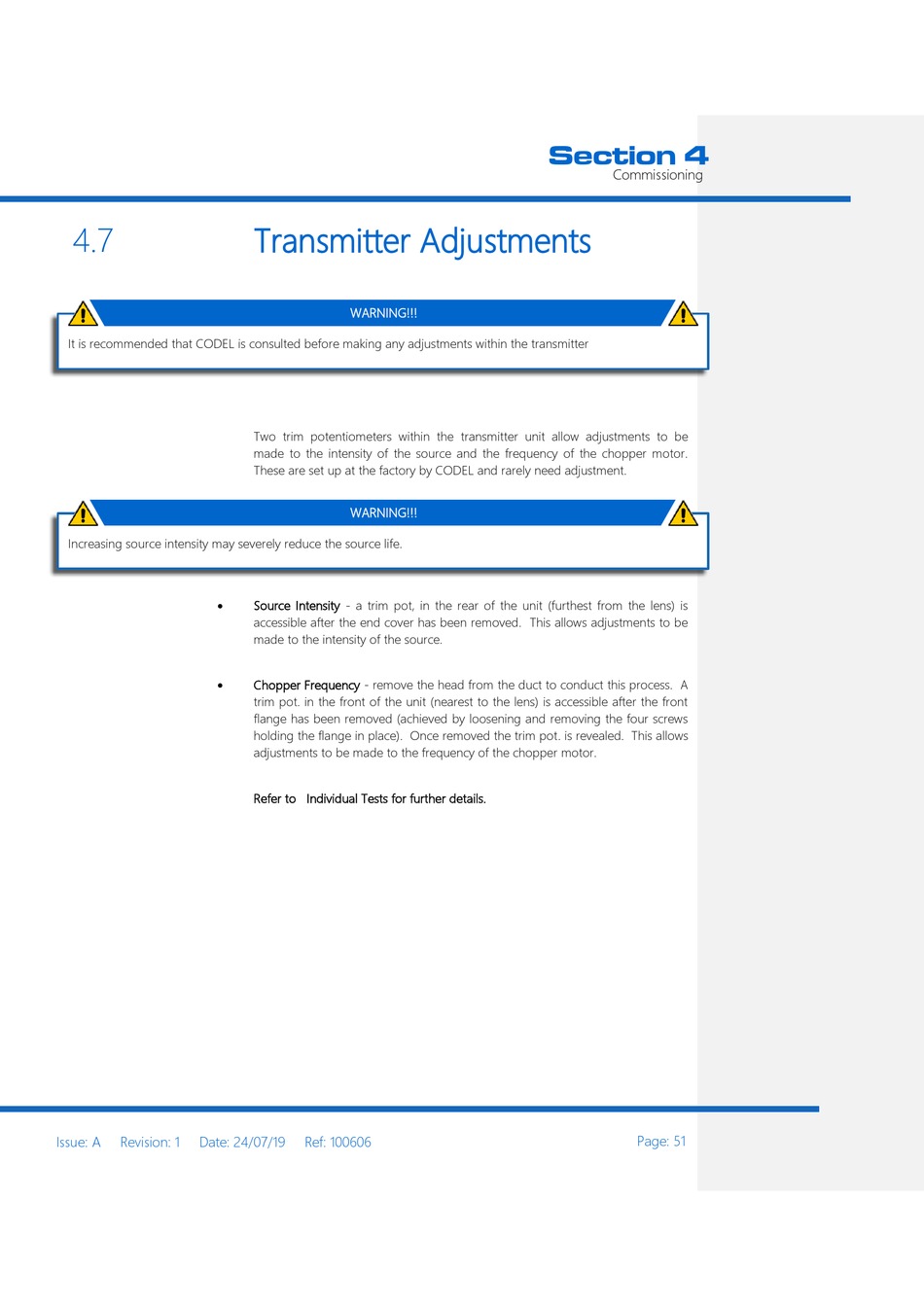

Transmitter Adjustments

WARNING!!!
Two trim potentiometers within the transmitter unit allow adjustments to be
made to the intensity of the source and the frequency of the chopper motor.
These are set up at the factory by CODEL and rarely need adjustment.
WARNING!!!
Source Intensity - a trim pot, in the rear of the unit (furthest from the lens) is
accessible after the end cover has been removed. This allows adjustments to be
made to the intensity of the source.
Chopper Frequency - remove the head from the duct to conduct this process. A
trim pot. in the front of the unit (nearest to the lens) is accessible after the front
flange has been removed (achieved by loosening and removing the four screws
holding the flange in place). Once removed the trim pot. is revealed. This allows
adjustments to be made to the frequency of the chopper motor.
Refer to Individual Tests for further details.
Ref: 100606
Section 4
Commissioning
Page: 51
