EnergyTech 401
Operating and Maintenance Manual
Check Cell Installation
5.13.1.4

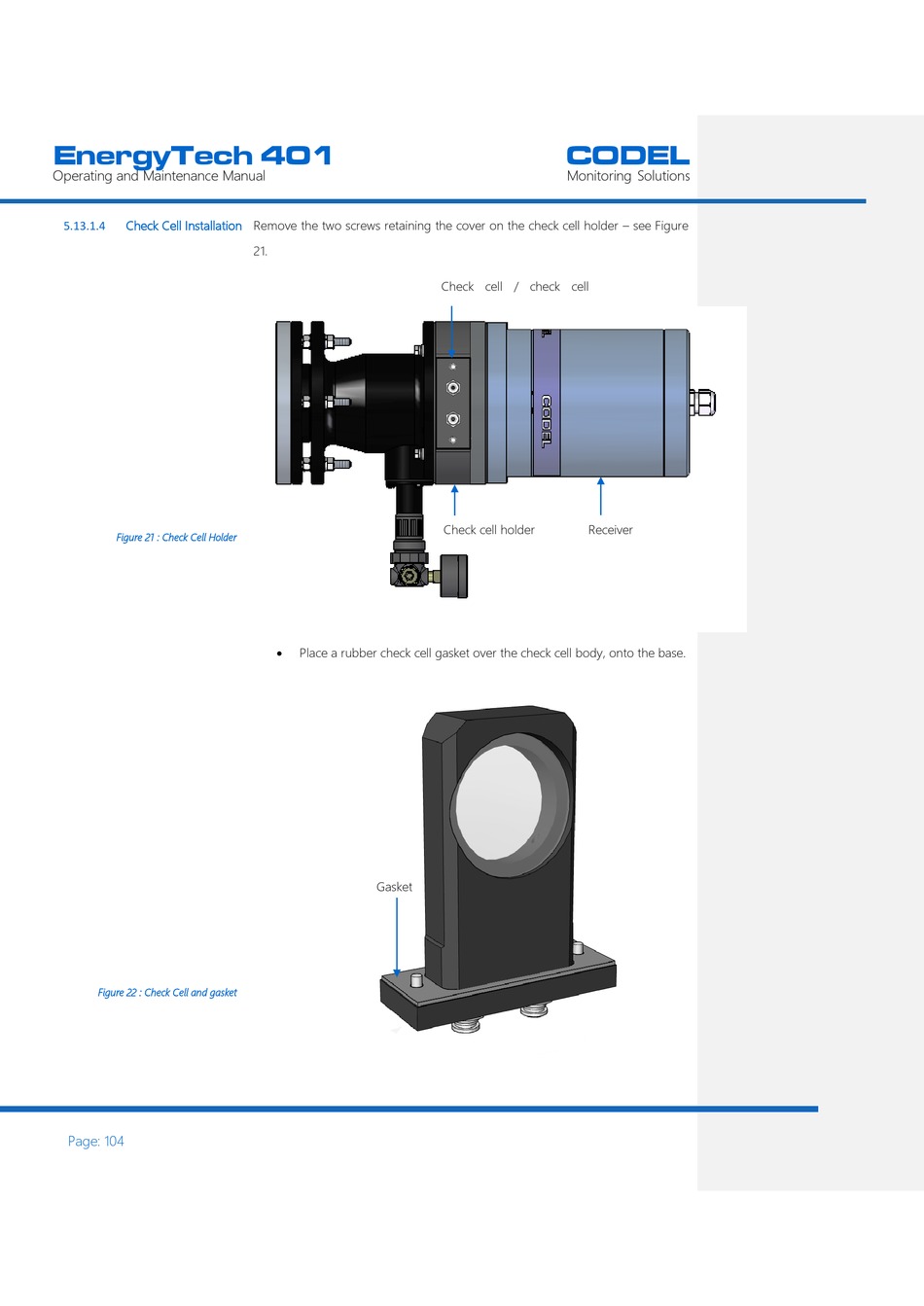

Figure 21 : Check Cell Holder
Figure 22 : Check Cell and gasket
Page: 104
Remove the two screws retaining the cover on the check cell holder – see Figure
21.
Place a rubber check cell gasket over the check cell body, onto the base.

Gasket
CODEL
Monitoring Solutions
Check cell / check cell
cover
Check cell holder Receiver
