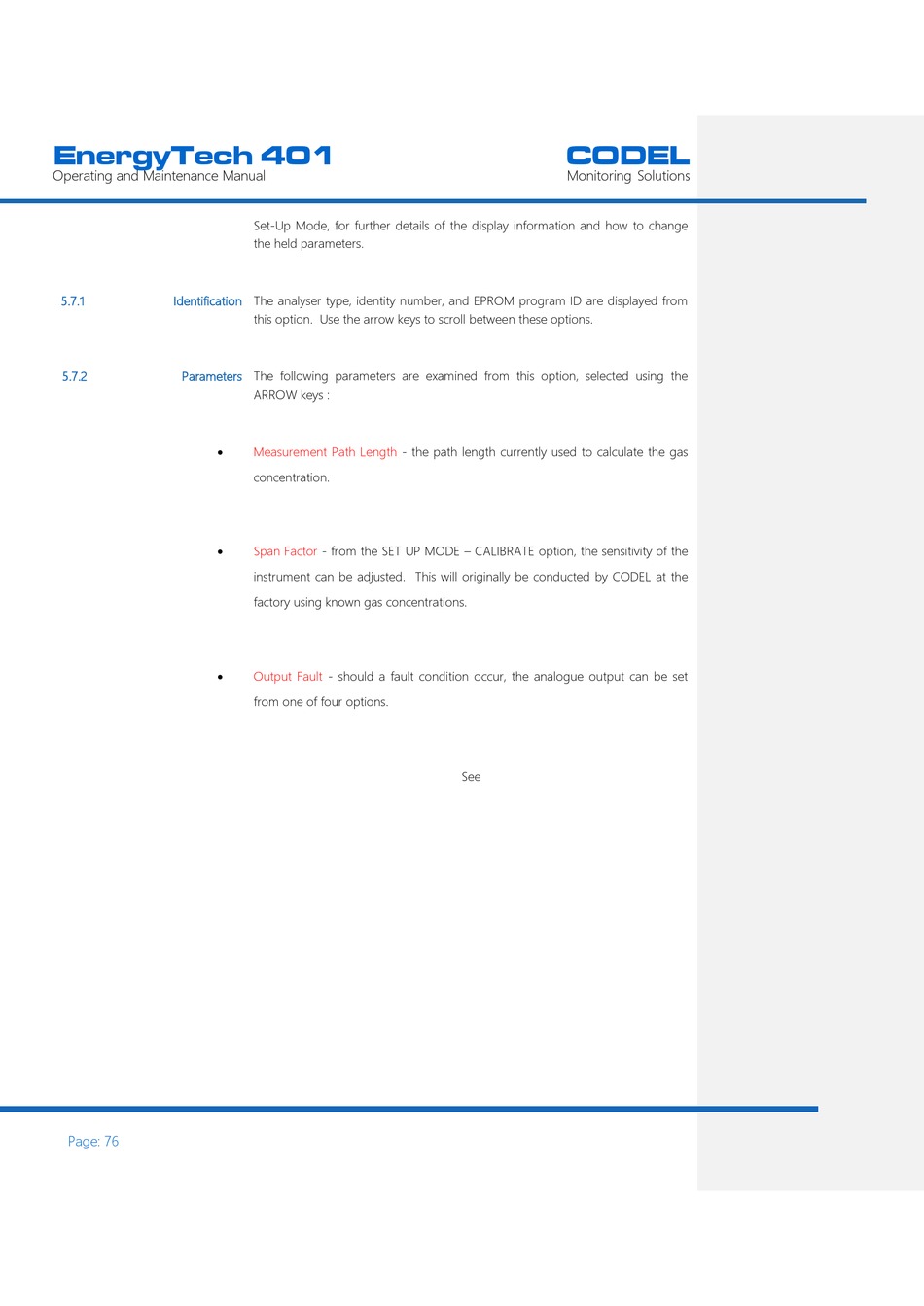

Identification; Parameters - CODEL Energy Tech 401 Installation, Operation And Maintenance Manual

EnergyTech 401
Operating and Maintenance Manual
5.7.1

Identification

5.7.2

Parameters




Page: 76
Set-Up Mode, for further details of the display information and how to change
the held parameters.
The analyser type, identity number, and EPROM program ID are displayed from
this option. Use the arrow keys to scroll between these options.
The following parameters are examined from this option, selected using the
ARROW keys :
Measurement Path Length - the path length currently used to calculate the gas
concentration.
Span Factor - from the SET UP MODE – CALIBRATE option, the sensitivity of the
instrument can be adjusted. This will originally be conducted by CODEL at the
factory using known gas concentrations.
Output Fault - should a fault condition occur, the analogue output can be set
from one of four options.
CODEL
Monitoring Solutions
See
