4.8.1.6
Set mA Output
This is set at the factory and should not be altered without due consideration.
Zero mA should be set up no matter what has been selected as the base of the current output. This is factory set by
CODEL.
Issue: A
Revision: 1
Date: 24/07/19

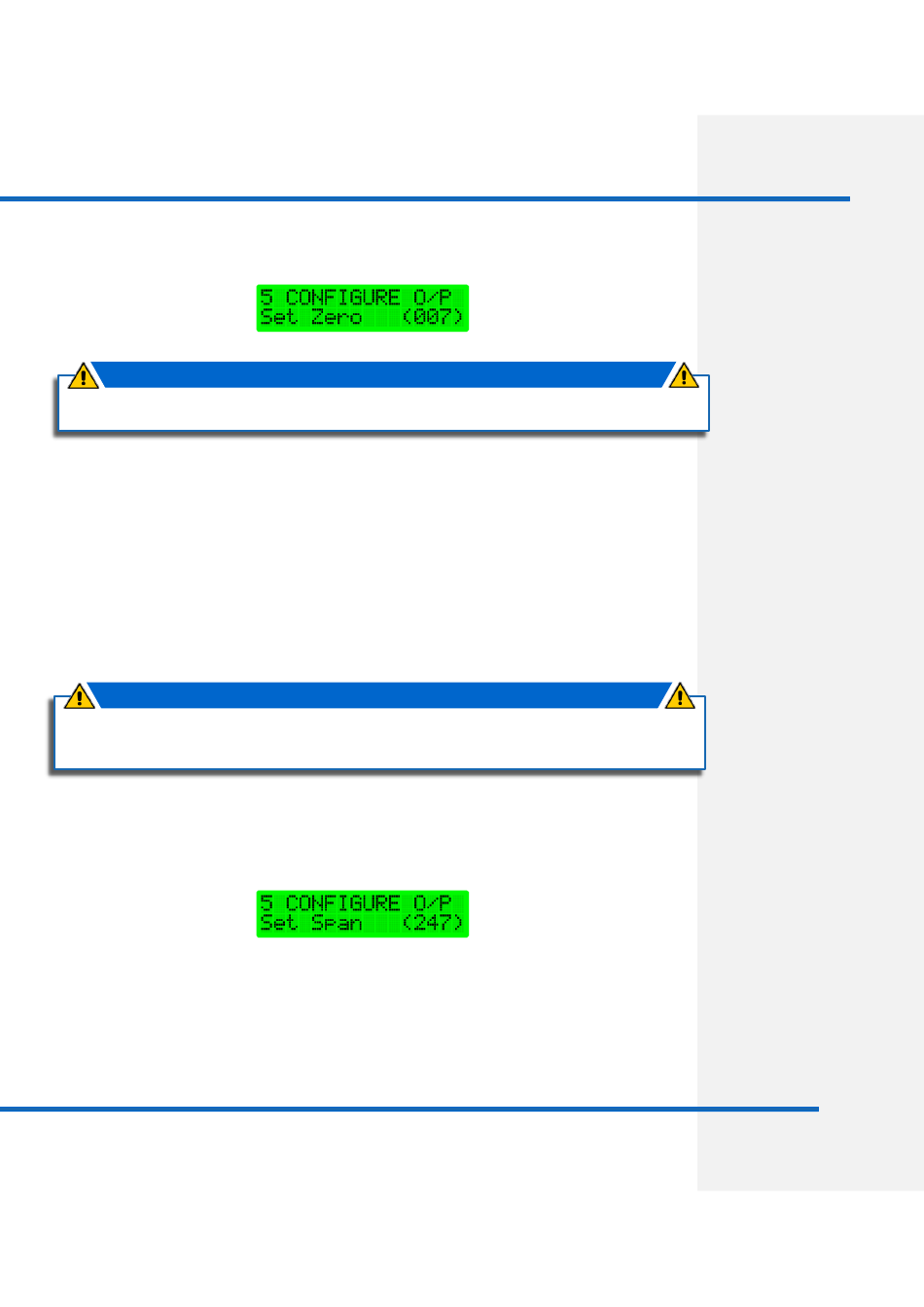

From this option the current levels of the analogue output are set up. Press the
ENTER key to select it, and the operator is prompted to set the current levels at 0
and 20 mA.
WARNING!!!
When this is displayed, the current output should be set to 0mA as measured
with a calibrated current meter across the analogue current loop terminals;
nothing else should be connected to these terminals when the output is being
set up.
The value is adjusted using the two arrow keys, the UP arrow will take the current
output up, and the DOWN arrow will take it down. Press the ENTER key when
the correct output current is displayed on the ammeter.
NOTE
In a similar manner to the above, the current output level should now be set to
20mA.
Ref: 100606
Section 4
Commissioning
Page: 55
