4.8.1.1 Base of Output
4.8.1.2 Averaging Time of the
Output
4.8.1.3 Output Units
Issue: A Revision: 1 Date: 24/07/19

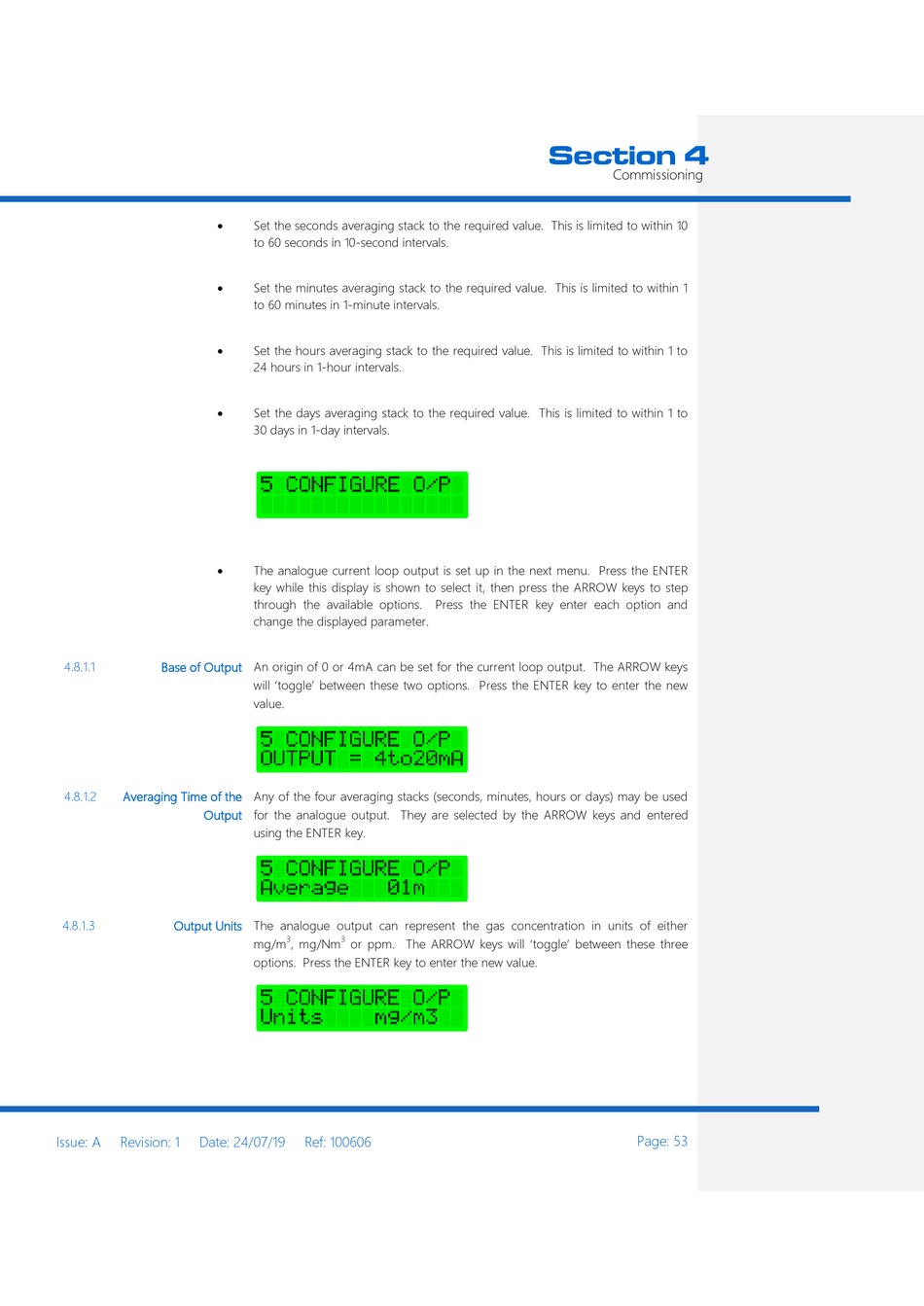

Set the seconds averaging stack to the required value. This is limited to within 10
to 60 seconds in 10-second intervals.
Set the minutes averaging stack to the required value. This is limited to within 1
to 60 minutes in 1-minute intervals.
Set the hours averaging stack to the required value. This is limited to within 1 to
24 hours in 1-hour intervals.
Set the days averaging stack to the required value. This is limited to within 1 to
30 days in 1-day intervals.
The analogue current loop output is set up in the next menu. Press the ENTER
key while this display is shown to select it, then press the ARROW keys to step
through the available options. Press the ENTER key enter each option and
change the displayed parameter.
An origin of 0 or 4mA can be set for the current loop output. The ARROW keys
will 'toggle' between these two options. Press the ENTER key to enter the new
value.
Any of the four averaging stacks (seconds, minutes, hours or days) may be used
for the analogue output. They are selected by the ARROW keys and entered
using the ENTER key.
The analogue output can represent the gas concentration in units of either
3 3
mg/m , mg/Nm or ppm. The ARROW keys will 'toggle' between these three
options. Press the ENTER key to enter the new value.
