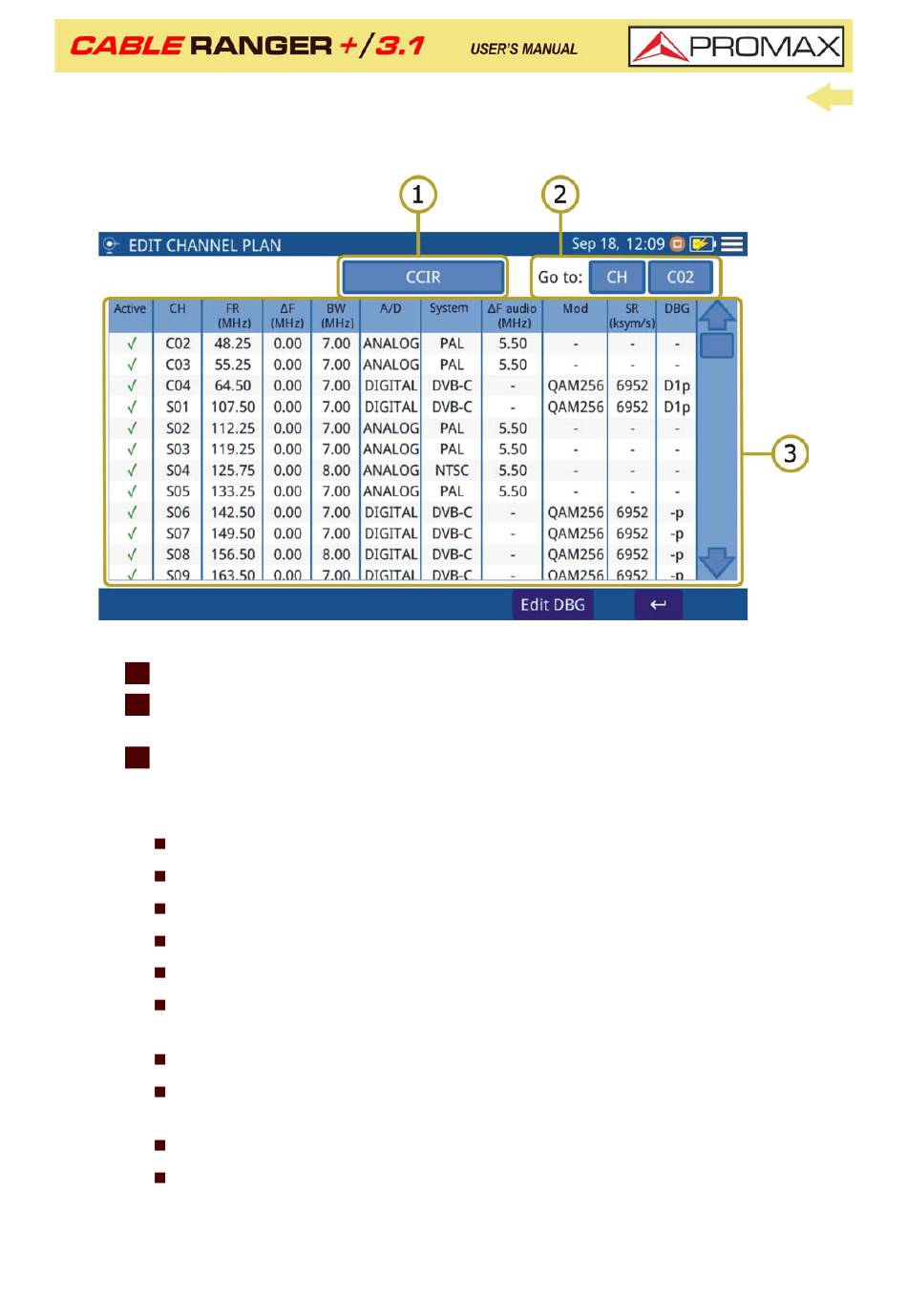

Screen Description
►
1 Channel plan selected. Press on this box to select another channel plan.
2 Go to: Press on this box to switch between CH (channel) and FR (frequency)
and to select a channel or frequency.
3 Channel table.
Parameters on channel table are:
CH: Channel.
F (MHz): Channel frequency (MHz).
ΔF (MHz): Offset of tuned frequency for channel (MHz).
BW (MHz): Bandwidth of channel.
A/D: It indicates if channel is analogue (A) or digital (D).
System: It indicates transmission standard (DVB-T/T2, ISDB-T, ITU J83-
T, PAL/BG, D3.0, D2.0, E-D2.0, E-D3.0, DVB-C, /C2).
ΔF Audio (MHz): Offset of tuned frequency for audio (MHz).
Mod: It indicates modulation type (QAM16, QAM32, QAM64, QAM128,
QAM256, QAM512).
SR: Symbol rate.
DBG: It shows primary carrier for DBG.
March 2020
Figure 27.
