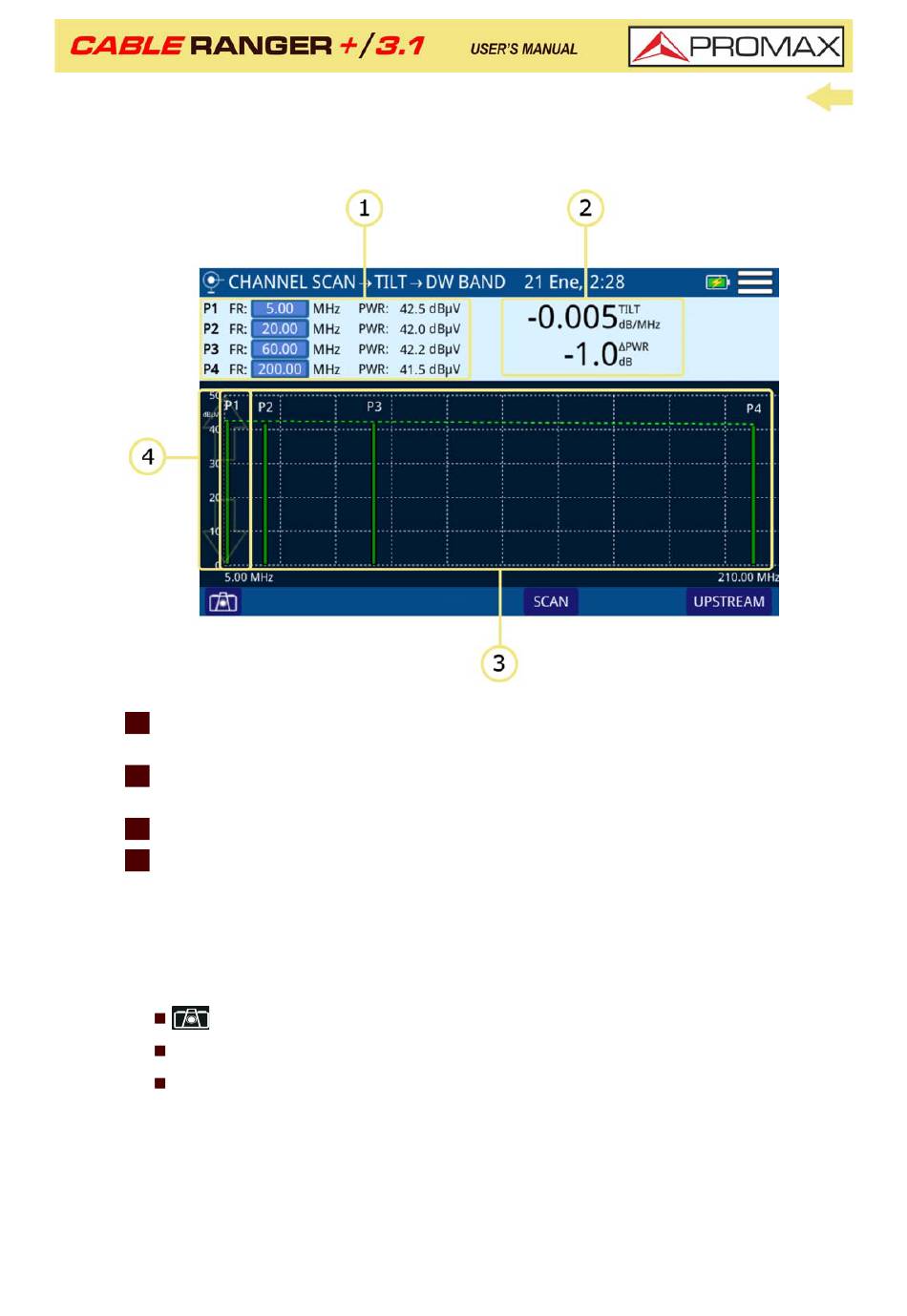

Screen Description
►
1
P1 - P4: Pilot signals. It shows pilot signal frequency and power. Press on
frequency to change its value.
2
TILT: Inclination rate in dB per MHz and power difference between P1 and
P4.
3
Bar graph showing signal level for each pilot signal and TILT.
4
Arrows to change reference level.
Options Menu
►
There are some options at the bottom of the screen:
: Screeenshot.
SCAN: It accesses the SCAN function (for more details see next).
UPSTREAM/DOWNSTREAM: It allows you to switch between upstream
and downstream band. The current band appears on the top of the screen.
Settings Menu
►
March 2020
Figure 12.
22
Chapter 3: MEASUREMENT
