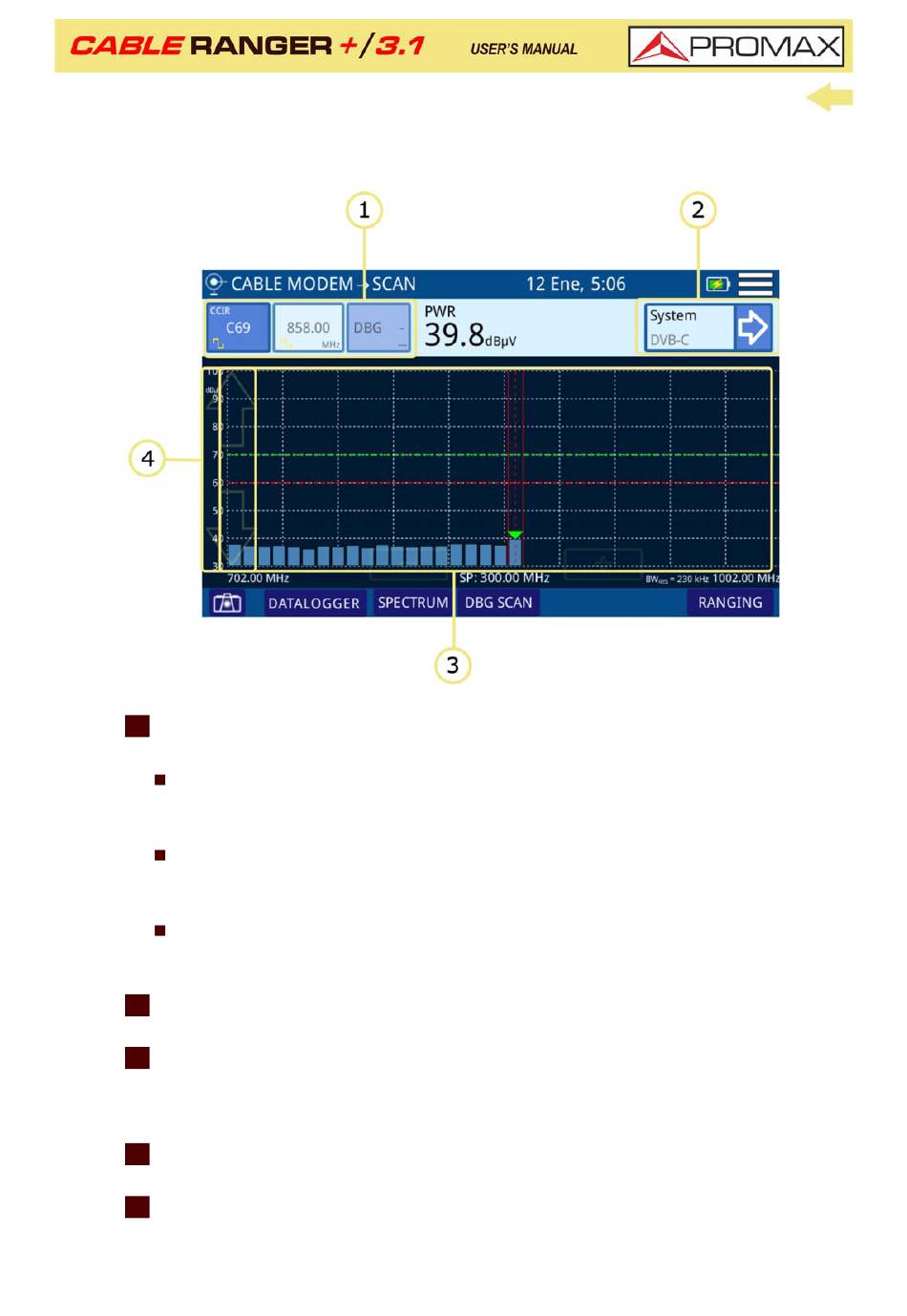

Screen Description
►
1 Selection of tune mode: Channel/frequency/DBG. The selected tune mode is
highlighted. From left to right are:
Channel tuning: It shows the selected channel, channel plan and signal
type (digital/analogue). When pressing on it deploys a list of available
channels.
Frequency tuning: It shows the selected frequency and signal type
(digital/analogue). When pressing on it pops up a virtual numeric keypad
to edit frequency.
Docsis Bonding Group selection (DBG): If the selected channel belongs to
a DBG then it appears on this box. When pressing on it, it shows a list of
DBG available for the current channel plan.
2 Measurement of the selected channel: Channel power and MER (for digital
channel) / Level (for analogue channel).
3 System measurement: It shows the demodulation system for the channel/
frequency selected. When pressing on it, it shows the data obtained after
signal demodulation for digital channels or additional measurements for
analogue signals.
4 Marker for selected channel / frequency. Bandwidth of the selected channel
is delimited by two continuous and vertical lines.
5 Span upper frequency.
