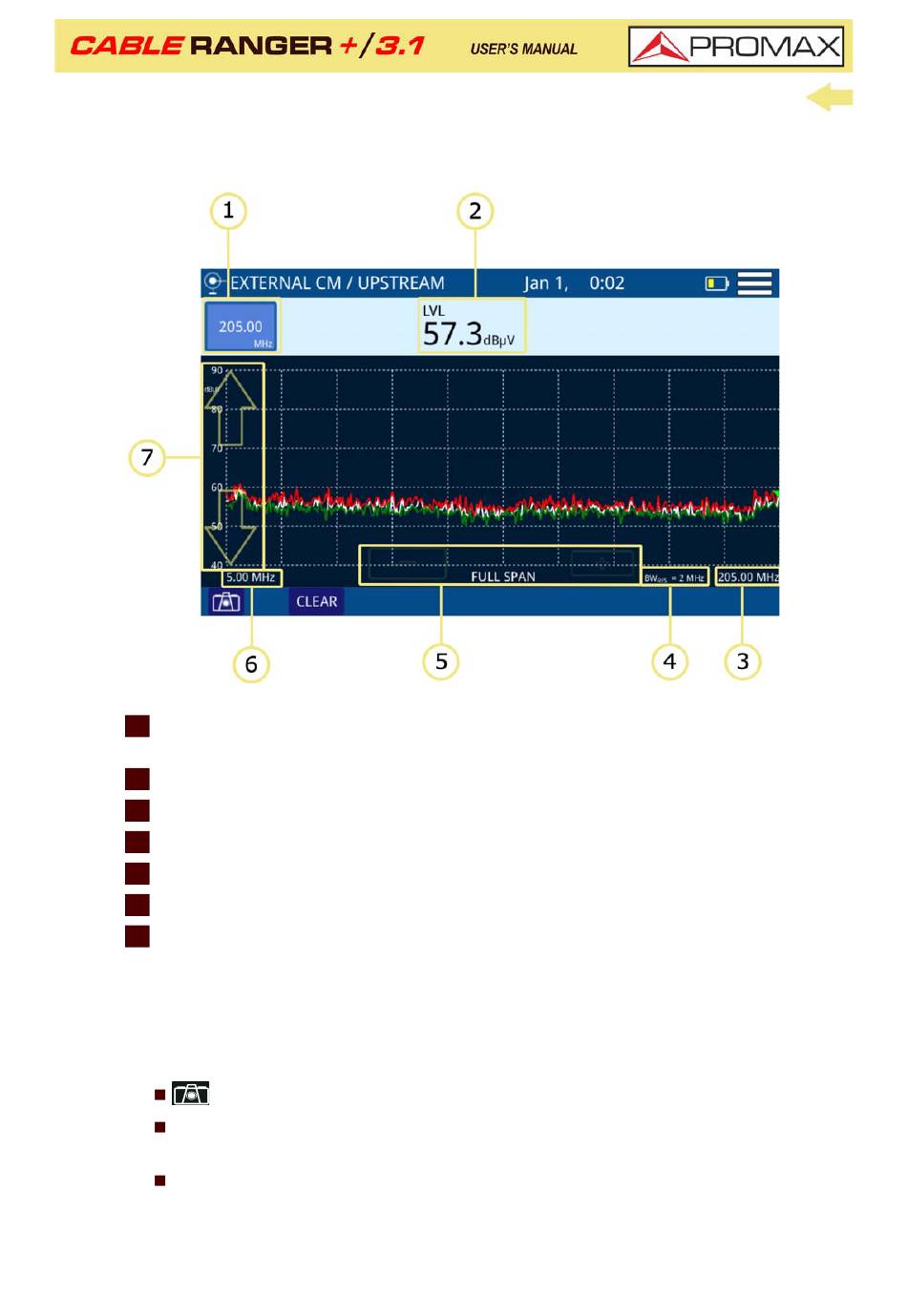

Screen Description
►
1 Frequency selected. When pressing on it pops up a virtual numeric keypad
to edit frequency.
2 Power level at selected frequency.
3 Span upper frequency.
4 Bandwidth resolution.
5 Arrows to increase / decrease span. Current span.
6 Span lower frequency.
7 Arrows to change reference level.
Options Menu
►
There are some options at the bottom of the screen:
: Screenshot.
CLEAR: It clears spectrum trace (this options is available if trace was hold
previously).
SPEED: It opens TEST SPEED function (for more details refer to XXX).
