2
Measurement of the selected channel: Channel power and MER (for digital
channel) / Level (for analogue channel).
3
System measurement: It shows the demodulation system for the channel/
frequency selected. When pressing on it, it shows the data obtained after
signal demodulation for digital channels or additional measurements for
analogue signals.
4
Marker for selected channel / frequency. Bandwidth of the selected channel
is delimited by two continuous and vertical lines.
5
Span upper frequency.
6
Bandwidth resolution.
7
Arrows to increase / decrease span. Current span.
8
Span lower frequency.
9
Arrows to change reference level.

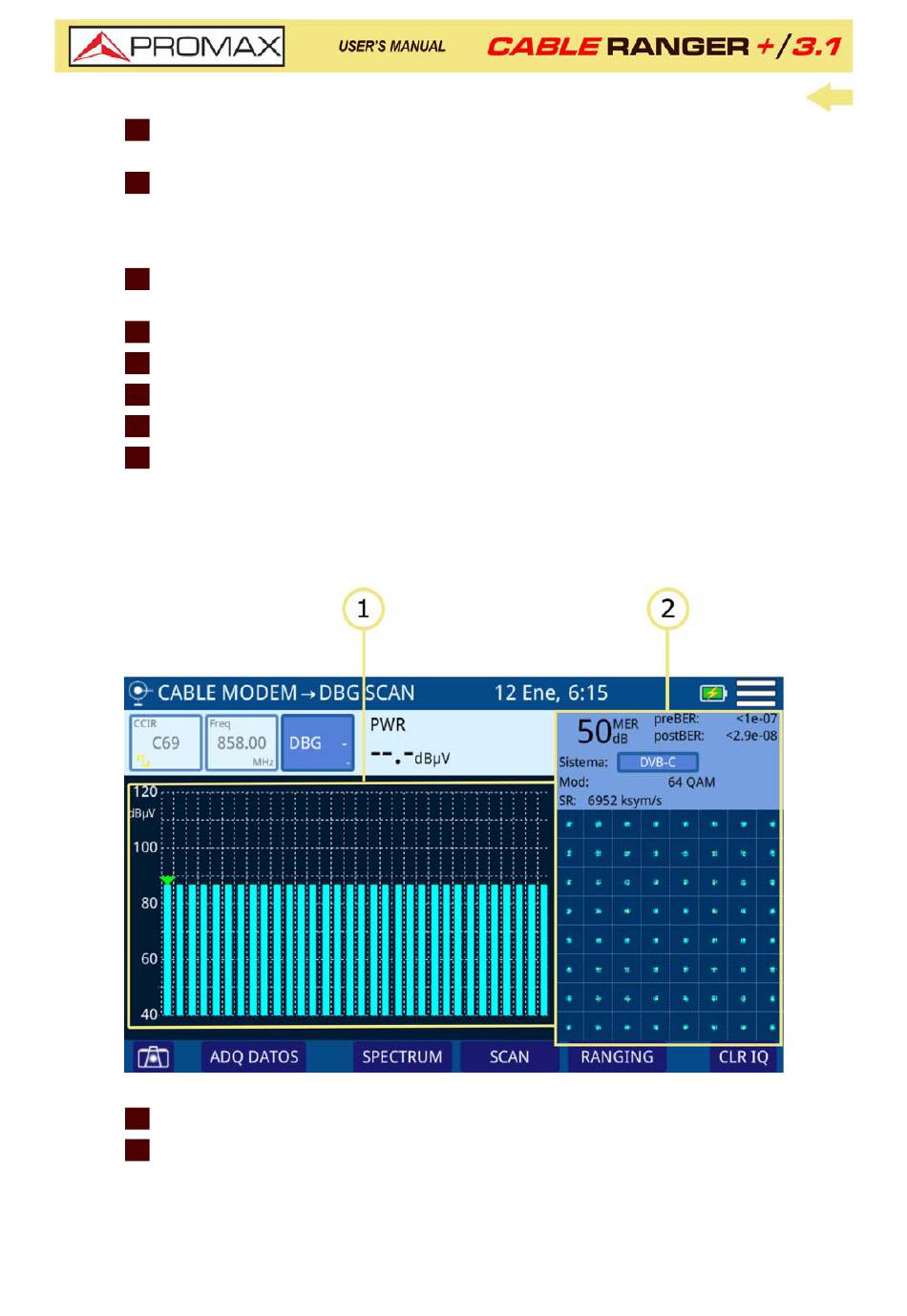

Description of DBG SCAN screen
►
1
Power for each DBG carrier. The arrow on the bar shows the selected carrier.
2
Graphical representation of the Constellation Diagram and measurement for
the channel pointed by the marker.
Chapter 3: MEASUREMENT
Figura 11.
19
March 2020
