3 Select SCAN function according to input signal (cable or fiber). Press
function on the left side of the screen for FIBER OPTICS or on the right side
for CABLE.
4 SCAN function opens.
5 Press SYSTEM to demodulate signal and show constellation.
6 To quit press HOME
Screen Description
►
1 Selection of tune mode: Channel/frequency/DBG. The selected tune mode is
highlighted. From left to right are:
Channel tuning: It shows the selected channel, channel plan and signal
type (digital/analogue). When pressing on it deploys a list of available
channels.
Frequency tuning: It shows the selected frequency and signal type
(digital/analogue). When pressing on it pops up a virtual numeric keypad
to edit frequency.
Docsis Bonding Group selection (DBG): If the selected channel belongs to
a DBG then it appears on this box. When pressing on it, it shows a list of
DBG available for the current channel plan.
March 2020
key.

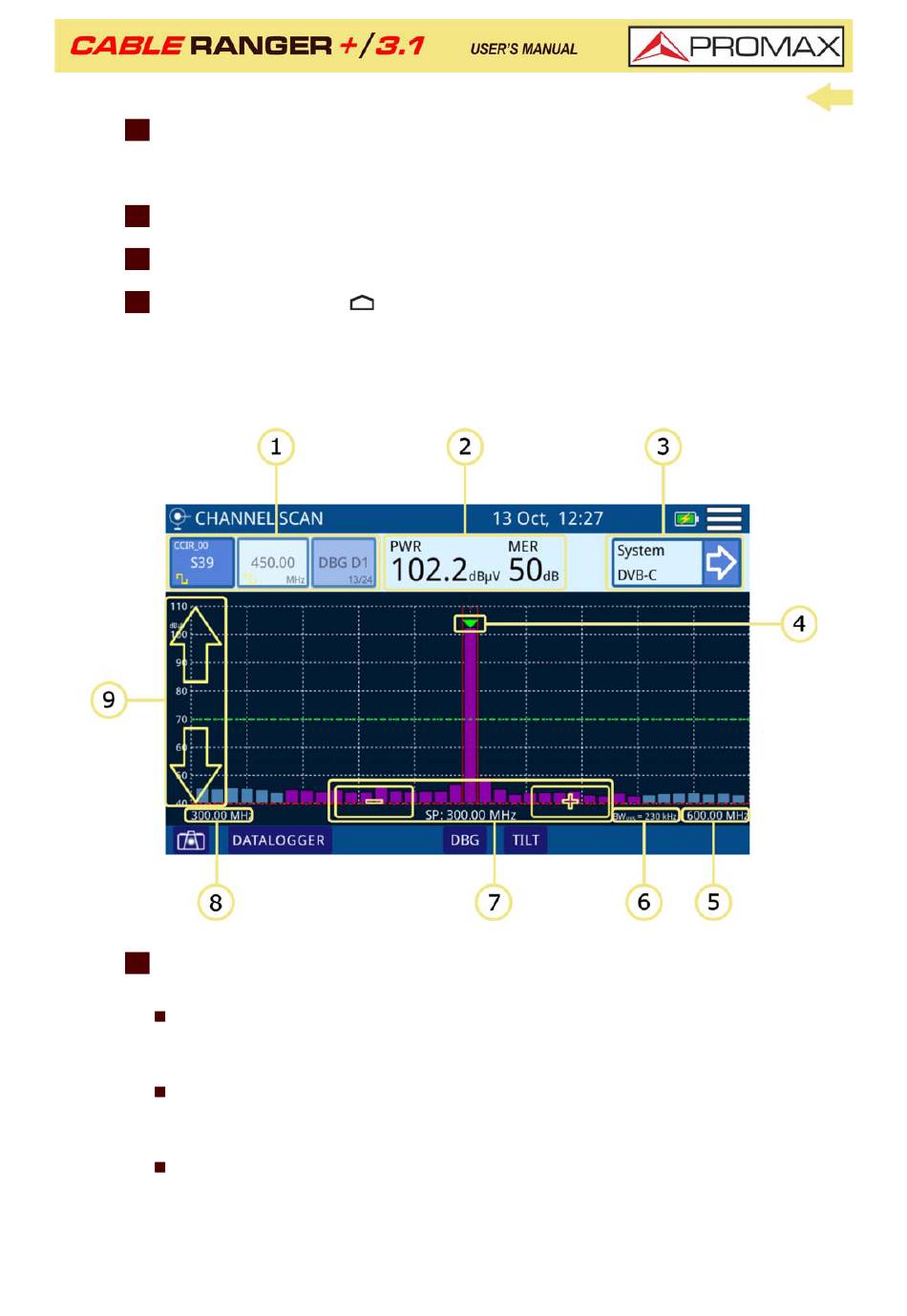

Figure 10.
