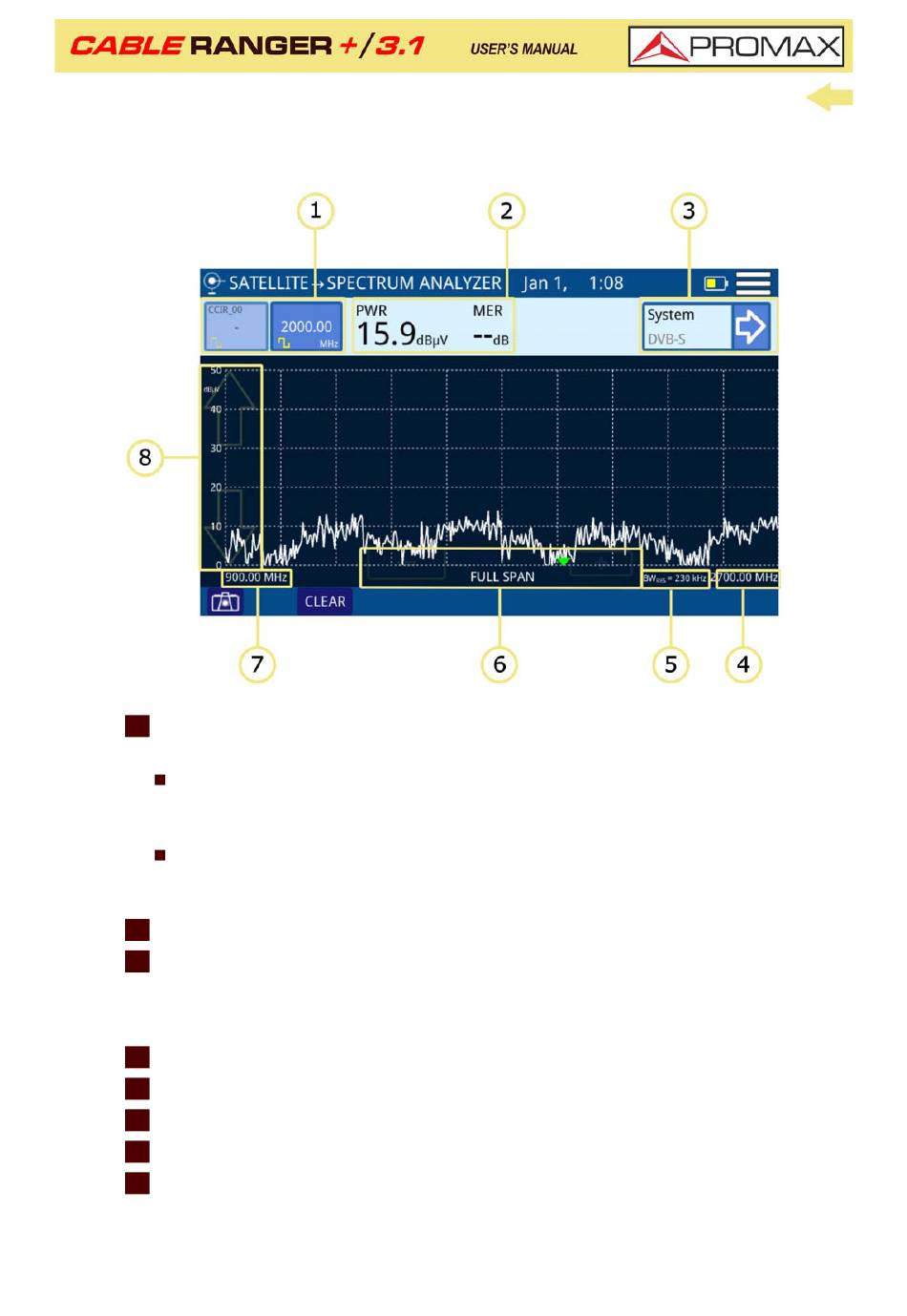

Screen Description
►
1 Selection of tune mode: Channel/frequency. The selected tune mode is
highlighted. From left to right are:
Channel tuning: It shows the selected channel, channel plan and signal
type (digital/analogue). When pressing on it deploys a list of available
channels.
Frequency tuning: It shows the selected frequency and signal type
(digital/analogue). When pressing on it pops up a virtual numeric keypad
to edit frequency.
2 Measurement of the selected channel: Channel power and MER.
3 System measurement: It shows the demodulation system for the channel/
frequency selected. When pressing on it, it shows the data obtained after
signal demodulation for digital channels or additional measurements for
analogue signals.
4 Span upper frequency.
5 Bandwidth resolution.
6 Arrows to increase / decrease span. Current span.
7 Span lower frequency.
8 Arrows to change reference level.
