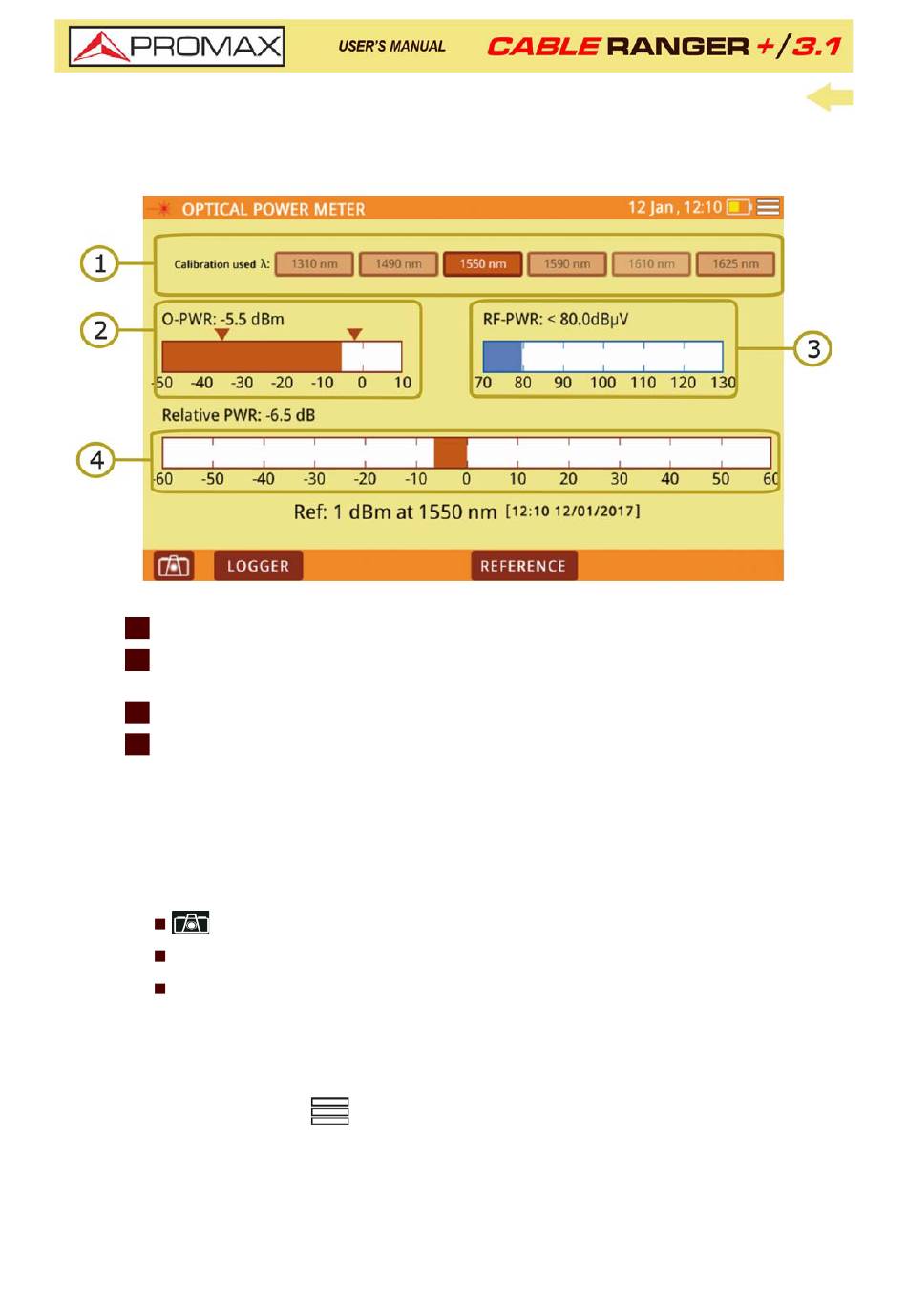

Screen Description
►
1
Calibration used: Select wavelength for power measurement.
2
O-PWER: Graphical bar and value of optical power with high and low
threshold. Threshold values can be selected on settings menu.
3
RF-PWR: Graphical bar and value of RF power .
4
Relative Power: Graphical bar and value of power signal loses. It is equal to:
Relative Power = Reference value - Attenuation.
Options Menu
►
There are some options at the bottom of the screen:
: Screenshot.
DATALOGGER: It creates a datalogger with measurement data.
REFERENCE: It allows you to save current power value as reference
value.
Settings Menu
►
Click on the MENÚ
The OPTICAL POWER METER function has these options:
Chapter 3: MEASUREMENT
Figure 26.
icon at the right corner to access the Settings menu.
47
March 2020
