Installing and Removing VME Option Boards
5. Engage the board carefully in the rails of the card cage. Push the board
straight in one-half of the way, using the handles as shown in Figure 3–11.

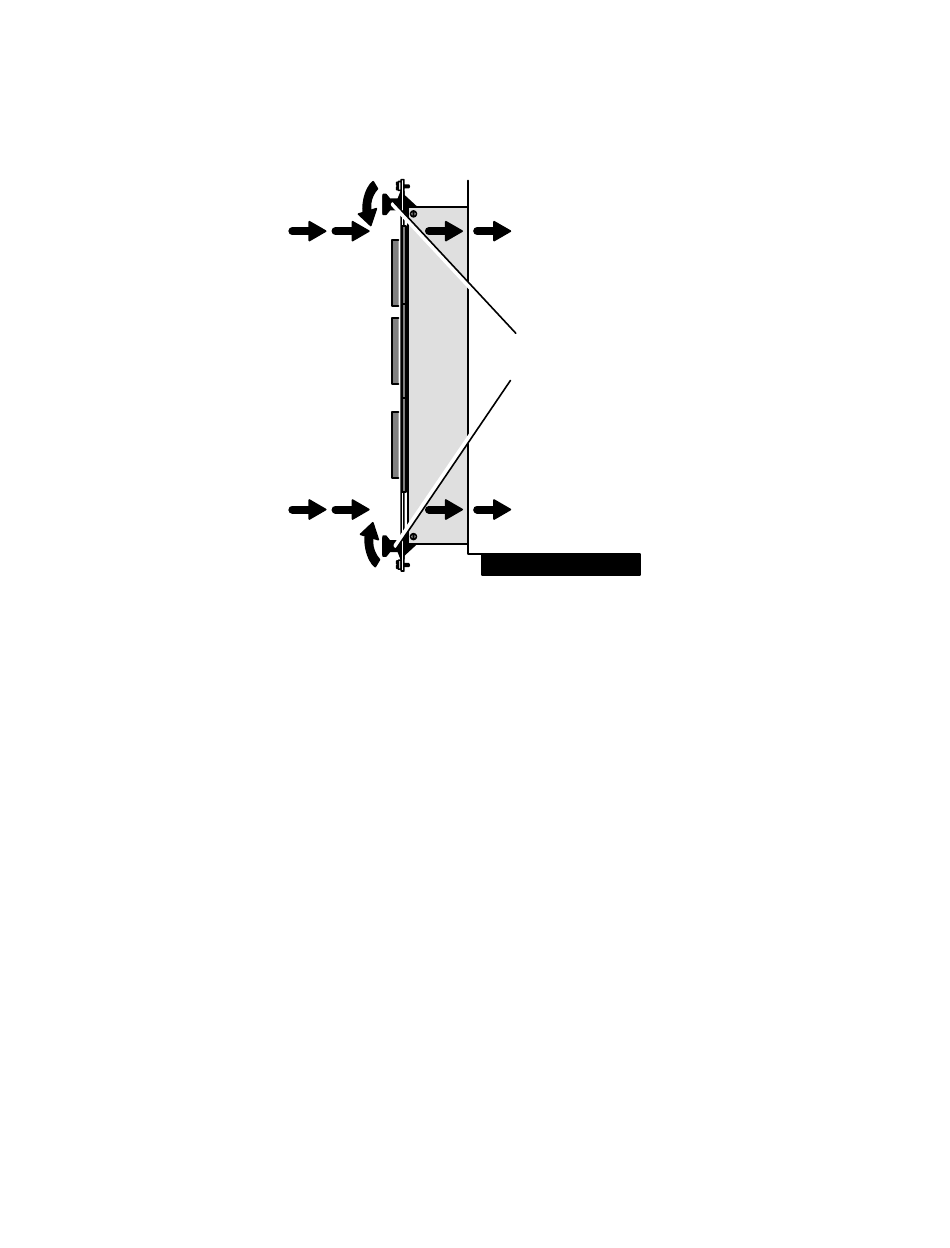

Figure 3–11 Board-Ejector Positions When Installing Board
6. With the board one-half of the distance into the slot, verify that the board rests
in both the top and bottom guide rails. With the top and bottom board ejectors
positioned as shown in Figure 3–11, carefully slide the board straight into the
slot until you feel the connectors seat with the backplane connectors. Do not
push the board from side to side or otherwise risk bending or breaking the
connector pins. The air dam on your VME board should be flush against the
securing bar when the board is properly seated. Figure 3–12 identifies the
securing bar in the card cage.
3-10
Board
ejector
handles
Computer chassis — side view
014–001867
