Connecting a VTC Controller to an
An Ethernet/IEEE 802.3 local area network (LAN) can incorporate several devices
that communicate over a common system of cables and transceivers. This section
describes how to connect the drop cable between your VTC controller board and its
transceiver on a LAN.
NOTE: For information on setting up the cables and transceivers on your LAN,
refer to Ethernet/IEEE 802.3 Local Area Network Installation Guide.

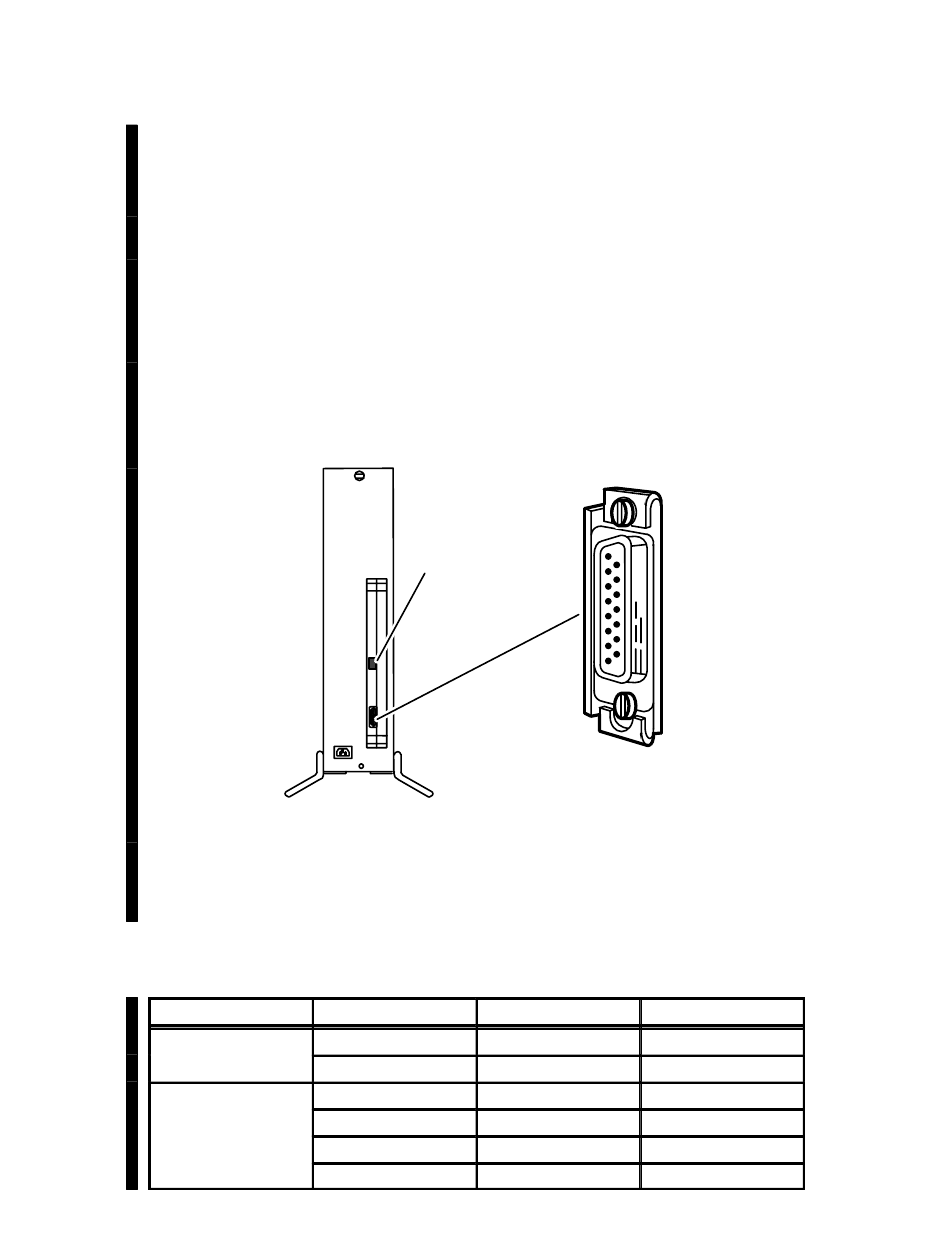

Figure 4–20 shows the location of the DB15 local area network connector on an
installed VTC board.
AViiON computer – rear view
Use one of the drop cables listed in Table 4–5 to connect your LAN transceiver to the
computer.
Cable Type
Plenum-grade gr
PVC C C
4-18
Ethernet LAN
RJ45 connector
(for diagnostic use only)
Figure 4–20 VTC LAN Connector
Table 4–5 LAN Drop Cables, VTC
Part Number Model Number
005–33791 1326
005–33787 1326A
007–5414 40028
007–6253 40028A
005–33766 15274E005
005–31694 15274E020
LAN connector
(female)
Cable Length (m)
5 (16.4 ft)
20 (65.6 ft)
1 (3.3 ft)
3 (9.9 ft)
5 (16.4 ft)
20 (65.6 ft)
