VME Backplane Connector Signals and Power Distribution

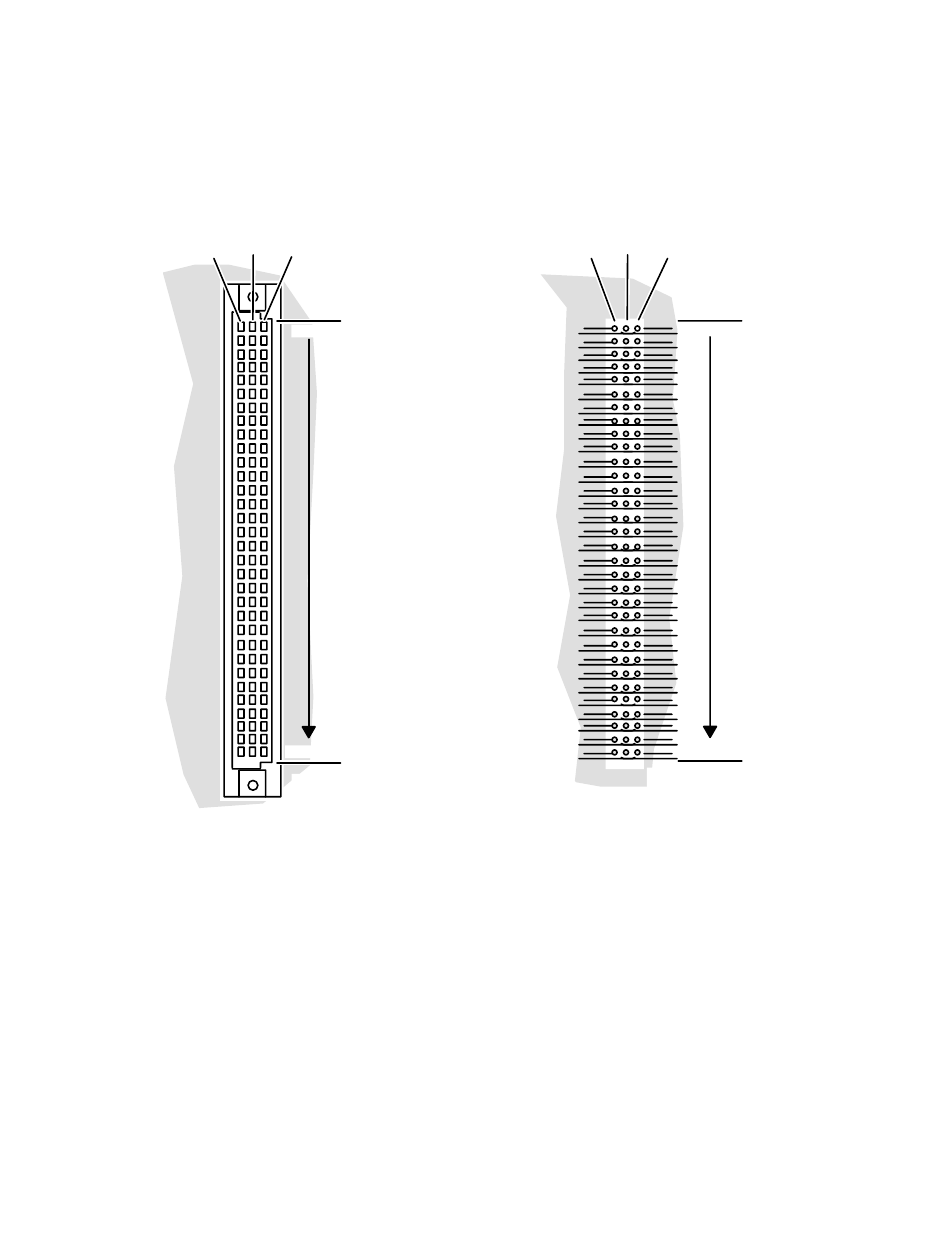

Figure A–2 shows the pin and row positions of the 96-pin backplane connectors, J1
and J2. Connector J1 and row B of J2 provide the standard VMEbus signals across
all slots in the card cage. Tables A–1 and A–2 list these signals; for a detailed
description refer to the manual The VMEbus Specification.
Rows
A B C
Pin 1
Pin 32
Viewed from the front
of the backplane
Figure A–2 Pin and Row Positions of Backplane J1 and J2 Connectors
A-2
Rows
C B A
Pin 1
Pin 32
Viewed from the back
of the backplane
