VDC/8P
(female)
Connector pins
Printer cable
connector (male)

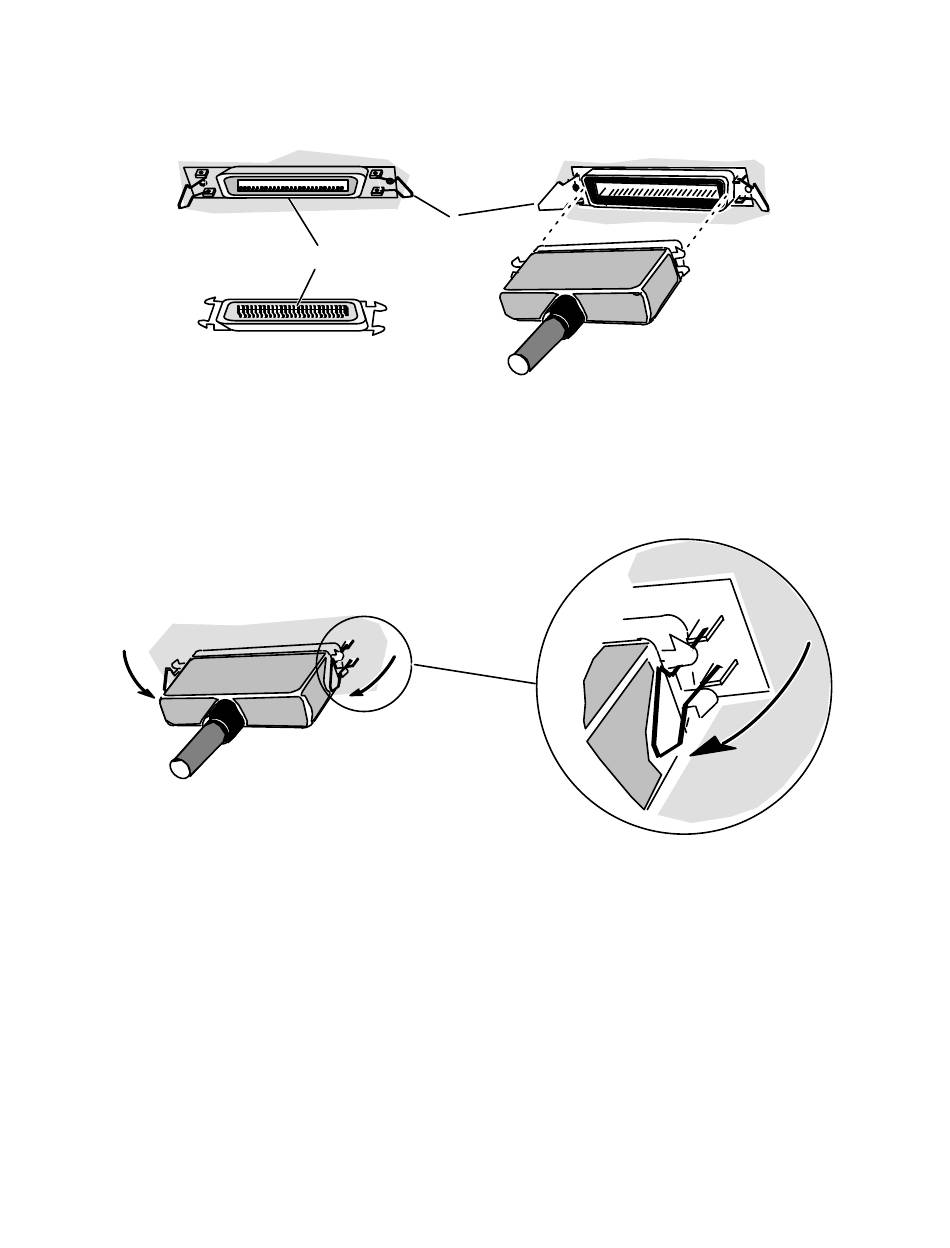

Figure 4–18 Plugging Together VDC/8P Printer Connectors
Push the spring clips attached to the top and bottom of the printer port connector
sideways into the brackets on the cable connector as shown in Figure 4–19. Your
horizontal pressure will push the clips into place; do not squeeze or pull the clips out
of shape.
Figure 4–19 Securing the VDC/8P Printer Connector
If you haven't already connected the remote end of the cable(s) to each printer in
your system, do so now. Refer to the device-specific documentation for each printer,
if necessary.
When you finish connecting all external devices to your VME option board(s), refer
to your starting manual for instructions on powering up your system. You should
then refer to your operating system documentation for instructions on what to do
after booting or rebooting your system hardware.
014–001867
Connecting External Devices to VME Option Boards
Spring clip
1–36
Printer cable
