Configuring VME Option Boards
Once you have installed the board jumpers and verified the positioning of the
daughter boards, follow the directions in Chapter 3 to install the VSA board(s) in the
card cage.
VSA
Bus Request
Level Jumpers
P30 P29 P28
P26 P27 P25
P14 P16 P15 P17 P18 P19 P20 P21
P13 P12 P11 P10 P9 P8 P7 P6
P31 to P56
P25 to P30
P6 to P21

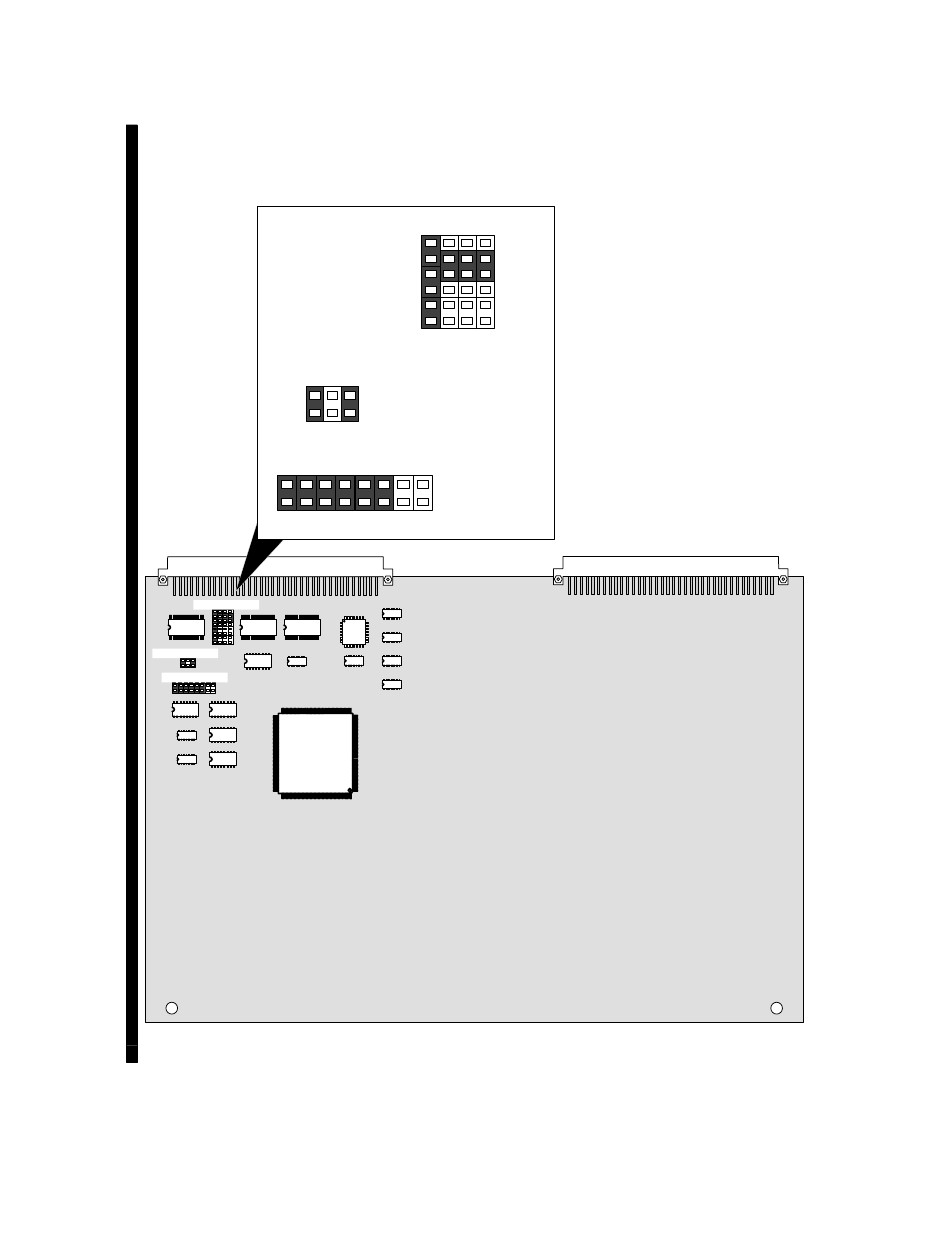

Figure 2–12 VSA Board Jumper Locations
2-32
P32 P33
P34
P31
P38
P35
P42
P39
P56
P53
P46
P49
P43
P54
P45 P44
Interrupt Level
Jumpers
Board Address
Jumpers
The Bus Request Level jumper configu-
ration shown on the left is for level 0 (de-
fault ).
The Interrupt Level jumper configuration
shown on the left is for level 2 (default ).
The address jumper configuration shown
on the left is for board position 0. To con-
figure addressing for other board posi-
tions, refer to the tables that follow.
014–001867
