Drop cable (side view)
Cable connector (male)

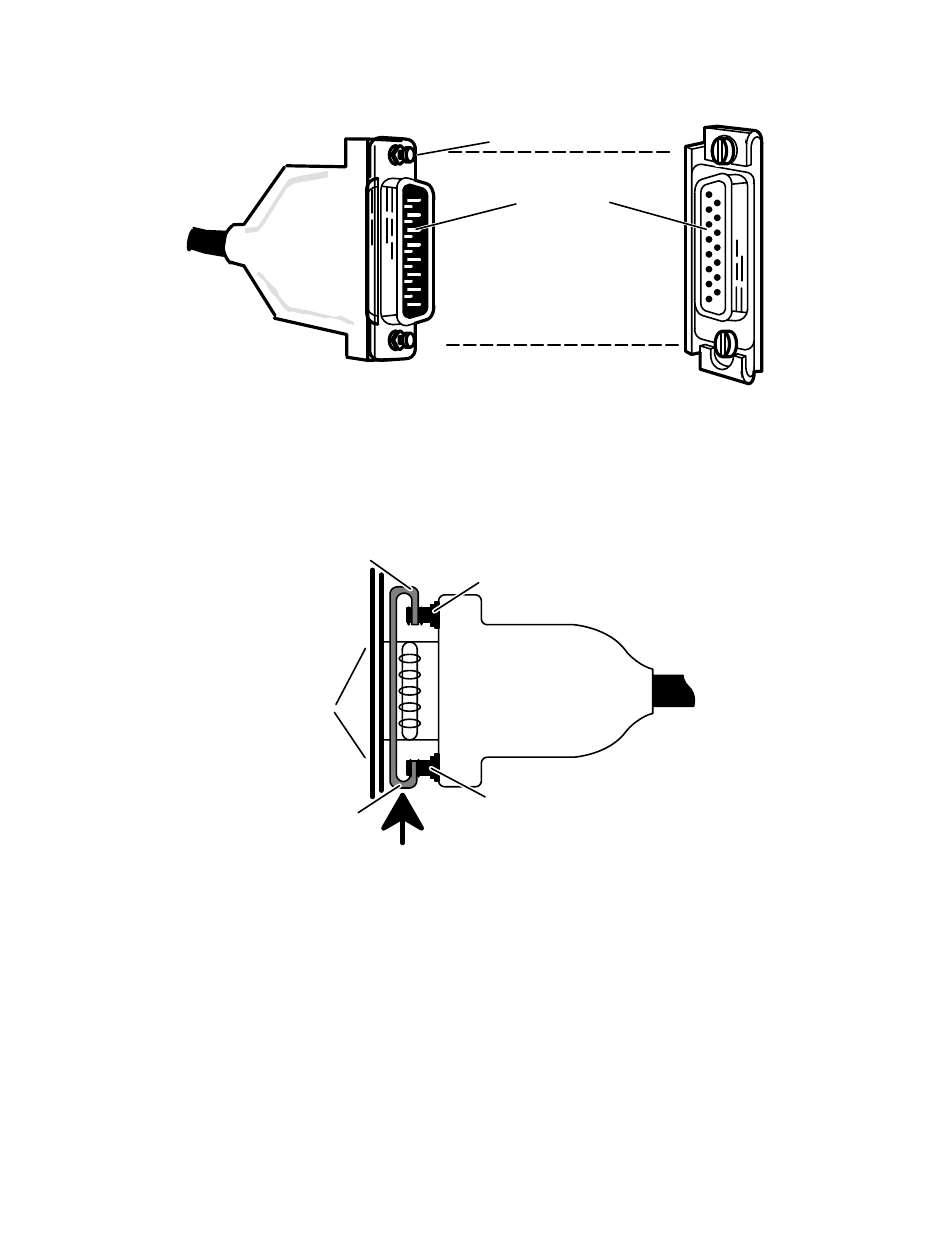

Figure 4–33 Aligning Slide Clip Mounts with a LAN Connector
4. Push the edge of the slide clip into position, so the small mount slot surrounds
its cable connector mount. Figure 4–34 illustrates how to secure a slide clip
connection.
Mount slot
(large)
VLC board
air dam
Mount slot
(small)
Figure 4–34 Connecting a LAN Drop Cable to a VLC Connector
If you haven't already connected the remote end of the cable to your transceiver, do
so now. Refer to the device-specific documentation for your transceiver, if necessary.
Then continue with the next section that applies to your system.
When you finish connecting all external devices to your VME option board(s), refer
to your starting manual for instructions on powering up your system. You should
then refer to your operating system documentation for instructions on what to do
after booting or rebooting your system hardware.
014–001867
Connecting External Devices to VME Option Boards
Slide clip mounts
Connector pins
1–15
Cable connector mount
Cable connector mount
Slide clip
