Connecting External Devices to VME Option Boards
Connecting Devices
Asynchronous devices attach to the J-box with male DB25 cable connectors. To
connect an asynchronous device to the J-box, use one of the cables listed in
Table 4–1.
Table 4–1 Asynchronous Device Cables
Device
Terminals T r i
Modems o
Align the connector pins and D-shaped bevels before gently pushing the cable
connector over the J-box connector. Align the two captive connector screws as
shown in Figure 4–8, and then tighten them securely.
J-box connector
(female)

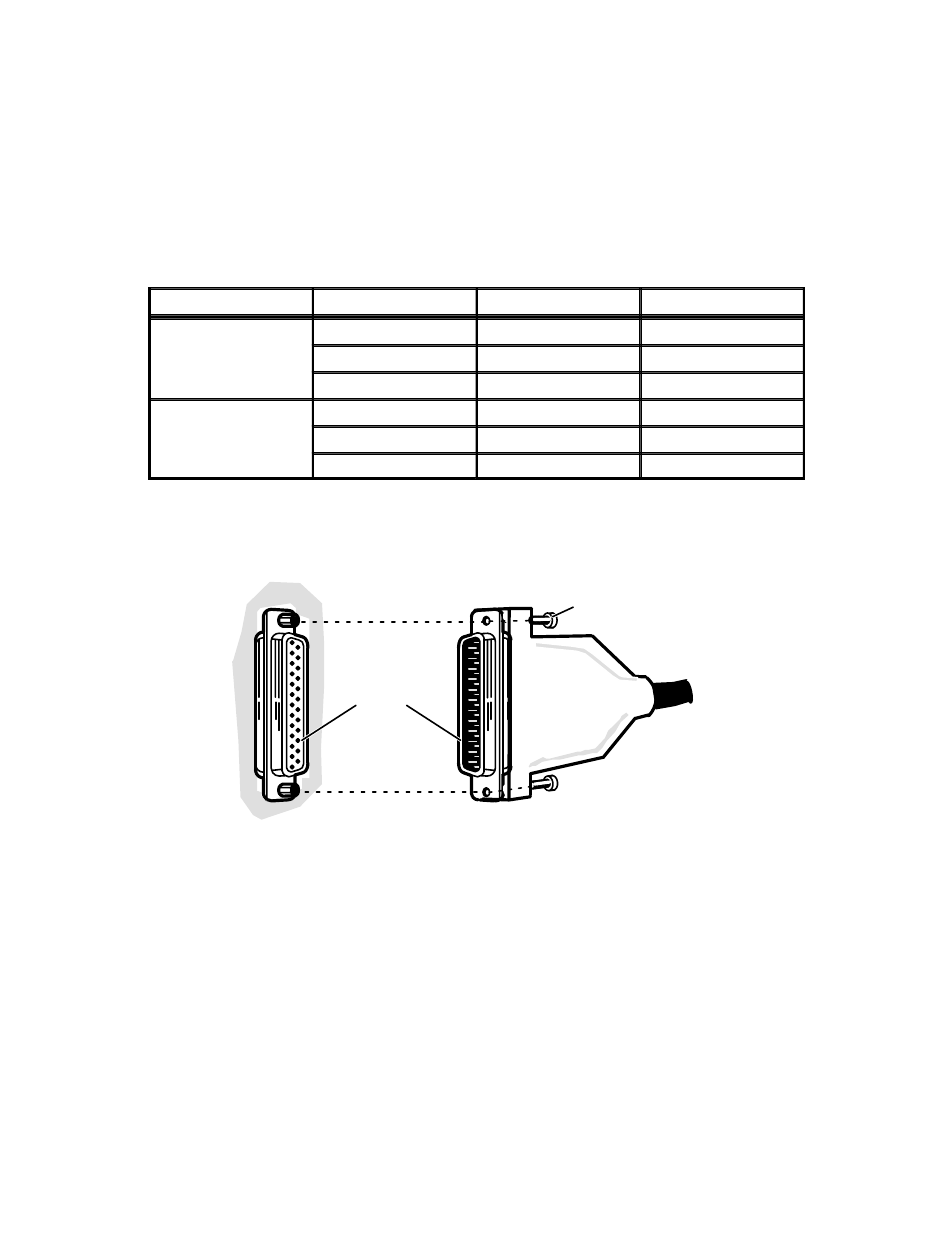

Figure 4–8 Plugging Together VAC/16 Device Connectors
If you haven't already connected the remote ends of the cables to your asynchronous
devices, do so now. Refer to the device-specific documentation for your option, if
necessary.
When you finish connecting all external devices to your VME option board(s), refer
to your starting manual for instructions on powering up your system. You should
then refer to your operating system documentation for instructions on what to do
after booting or rebooting your system hardware.
4-8
Cable Part No. Cable Model No.
005–34256 15340E010
005–34990 15340E015
005–34991 15340E025
005–36256 15369E010
005–36257 15369E015
005–36258 15369E025
Connector pins
1–25
Cable connector (male)
Cable Length (ft)
10
15
25
10
15
25
Captive screws
Device cable
(side view)
