Connecting External Devices to VME Option Boards
To connect a daisy chain of cluster controllers to your controller card, use one of the
cables listed in Table 4–2. These cables include a BNC host connector.
Table 4–2 Cables for Cluster Controllers
Cable Part Number
005–34246
005–34247
005–34248

Connecting a Cluster Controller Cable to a VDA Adapter

To attach a controller cluster to a VDA/128 or a VDA/255 adapter, you need a BNC
host connector, which connects to the BNC connector on your VDA/128 or VDA/255

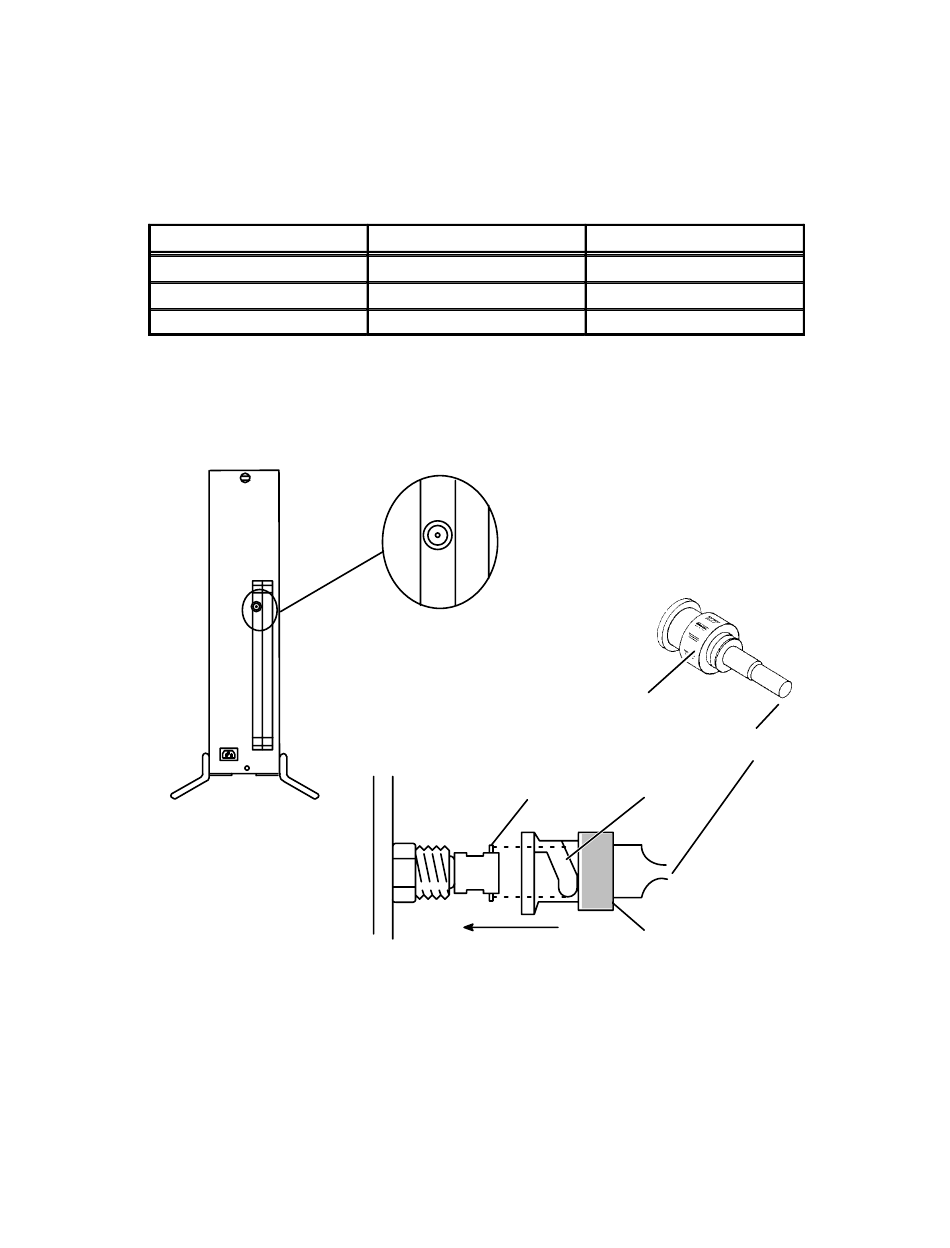

board. Figure 4–10 shows the host connector and the location of the VDA port.
AViiON computer – rear view
VDA/128 or VDA/255 connector
Figure 4–10 VDA/128 or VDA/255 Connectors
NOTE: You must connect the cluster line cable to your computer with a host
connector rather than a T-fitting.
To connect a host connector to the receptacle on the adapter board, simply push the
host connector firmly onto the receptacle, making sure that the pins on the receiving
fitting slide completely into the slots on the host connector. (See Figure 4–11.) Then
turn the knurled ring on the connector clockwise until the pins on the receiving
connector snap into place.
4-10
Model Number
15338E025
15338E050
15338E100
VDA/128 or VDA/255 connector
Pins
Cable Length (ft)
25
50
100
BNC host connector
RG–62 cable
to first cluster box on
chain
Slots
Ring
BNC host connector
014–001867
