Figure 2–16 shows the location of the switches and their settings on the VLC board
for DG/UX revision 5.4.2 or later. For further information about the board, refer to
the manual V/Ethernet 3207 Hawk Local Area Network Controller for Ethernet
User's Guide.
NOTE: Verify that the VME controller you plan to install is jumpered
appropriately for the current revision of your DG/UX operating system.
VLC
The switch configuration shown on
the right is for board position 0 and
for DG/UX revision 5.4.2 or later.
To configure for other board posi-
tions or other operating system re-
visions, refer to the tables that fol-
low.

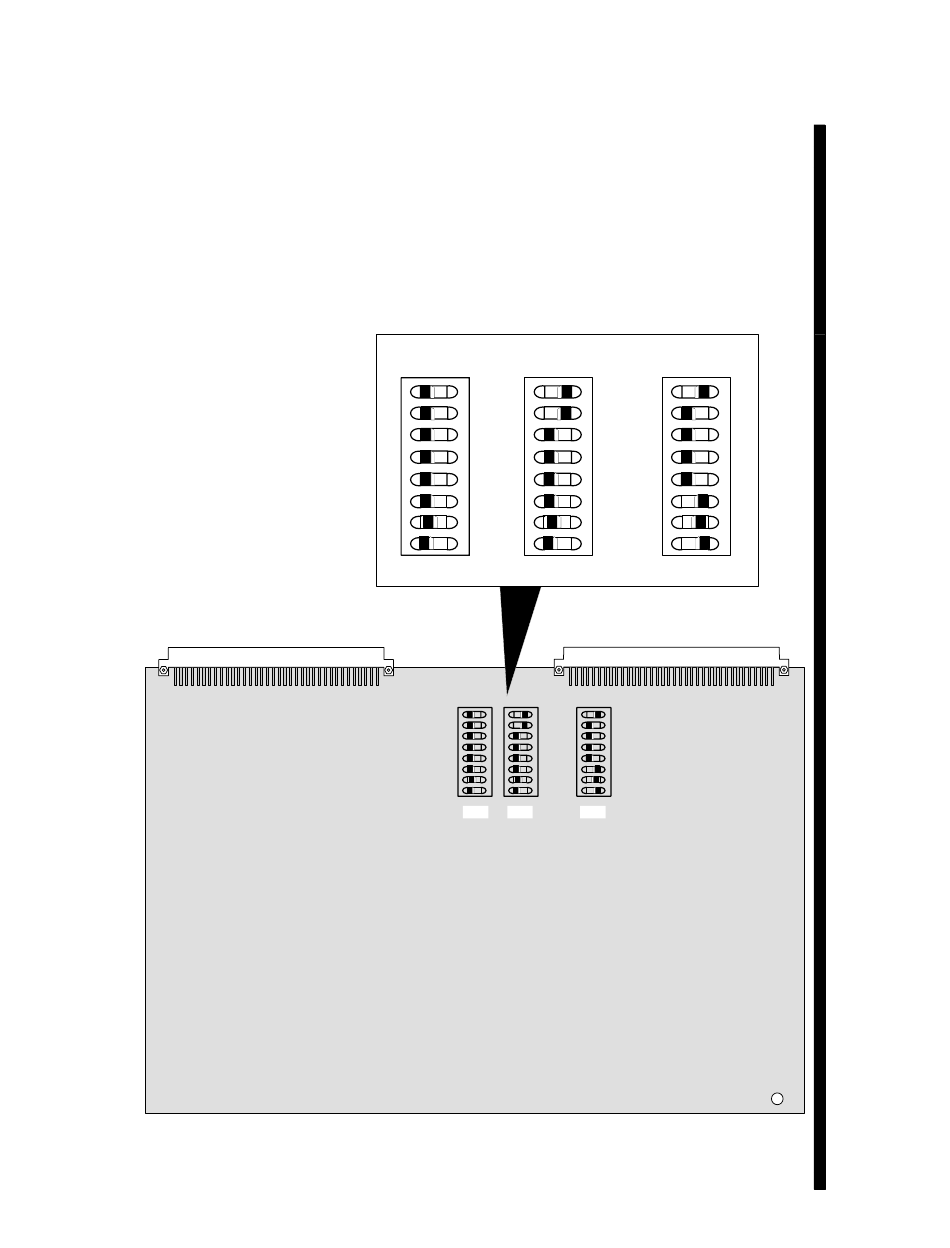

Figure 2–16 VLC Board Switch Locations
014–001867
ON OFF ON OFF
8 8
1 1
SW1 SW2
SW1 SW2
Configuring VME Option Boards
ON OFF
8
1
SW3
SW3
2-37
